Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T18SA5A03/UCSWITCH TOGGLE SPDT 6A 125V |
1,241 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

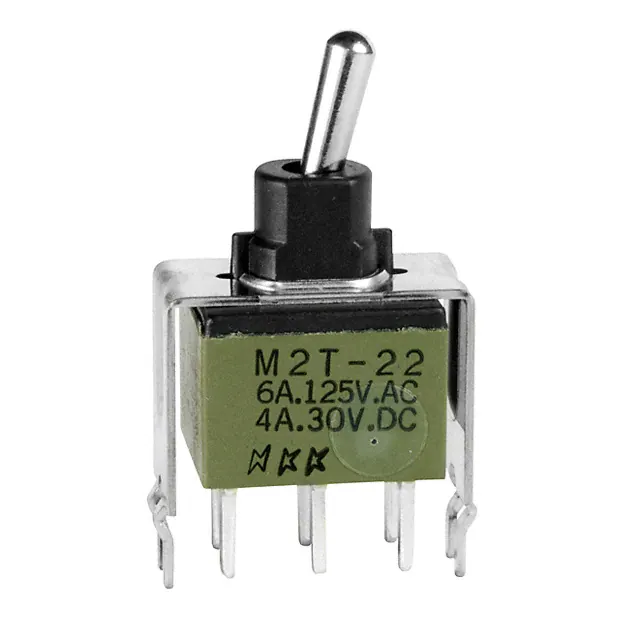

M2T22S4A5W13SWITCH TOGGLE DPDT 6A 125V |
4,615 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T22SA5A30SWITCH TOGGLE DPDT 6A 125V |
2,352 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T23SA5W03SWITCH TOGGLE DPDT 6A 125V |
4,918 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T25SA5G30SWITCH TOGGLE DPDT 0.4VA 28V |
4,533 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T28SA5A13SWITCH TOGGLE DPDT 6A 125V |
2,910 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T28SA5A13/UCSWITCH TOGGLE DPDT 6A 125V |
3,951 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
P2013SWITCH TOGGLE SPDT 10A 125V |
2,028 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | White Cap | -10°C ~ 85°C |
|
|
S331R/215SWITCH TOGGLE DPST 25A 125V |
1,288 |
|
Datasheet |
S300R | Bulk | Obsolete | Panel Mount | DPST | On-Off | 25A (AC/DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|
S3BSWITCH TOGGLE SPDT 5A 125V |
3,356 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
TL22SNAW016FSWITCH TOGGLE DPDT 6A 125V |
3,916 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 12 V | Flatted | 11.00mm | Illuminated | LED, Green | 3.5 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2044B2B3W01-VASWITCH TOGGLE DP3T 6A 125V |
4,513 |
|
- |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
5246MIWRADBX449SWITCH TOGGLE DPDT 6A 125V |
1,819 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
13TS15-1SWITCH TOGGLE 3PDT 18A 125V |
2,555 |
|
- |
TS | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 18A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
13TS15-2SWITCH TOGGLE 3PST 18A 125V |
2,320 |
|
- |
TS | Bulk | Obsolete | Panel Mount | 3PST | On-Off | 18A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
M2019QA1G01SWITCH TOGGLE SPDT 0.4VA 28V |
2,932 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34A4P31B4M2RTSWITCH TOGGLE 4PDT 0.4VA 20V |
2,704 |
|
Datasheet |
34A | Bulk | Active | Through Hole | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
34ADP14B1M2RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,725 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ASP16B1M1QTSWITCH TOGGLE SPDT 5A 125V |
1,512 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Flatted | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ASP31B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,385 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
