Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GTS447I101HRSWITCH TOGGLE SPDT 16A 277V |
2,352 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | On-Mom | 16A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS447I301HRSWITCH TOGGLE SPDT 16A 277V |
3,439 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | On-Mom | 16A (AC) | 277 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448S101AHRSWITCH TOGGLE DPST-NO 16A 250V |
1,137 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 16A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448P101AHRSWITCH TOGGLE DPDT 12A 250V |
2,368 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-Mom | 12A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448Q301AHRSWITCH TOGGLE DPST-NC 16A 250V |
3,430 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST-NC | On-Mom | 16A (AC) | 250 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448E301AHRSWITCH TOGGLE DPDT 12A 250V |
1,047 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 12A (AC) | 250 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
11TS95801-2-TNSWITCH TOGGLE 20A 125V |
1,945 |
|
- |
TS | Bulk | Obsolete | Panel Mount | - | - | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | - | Circular - 12.40mm Dia | - | - | - | -54°C ~ 71°C |
|
AML25GBF8CA04GRSWITCH TOGGLE SP3T 3A 125V |
1,586 |
|
Datasheet |
AML25 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | Jumper needed to achieve triple throw | - |
|

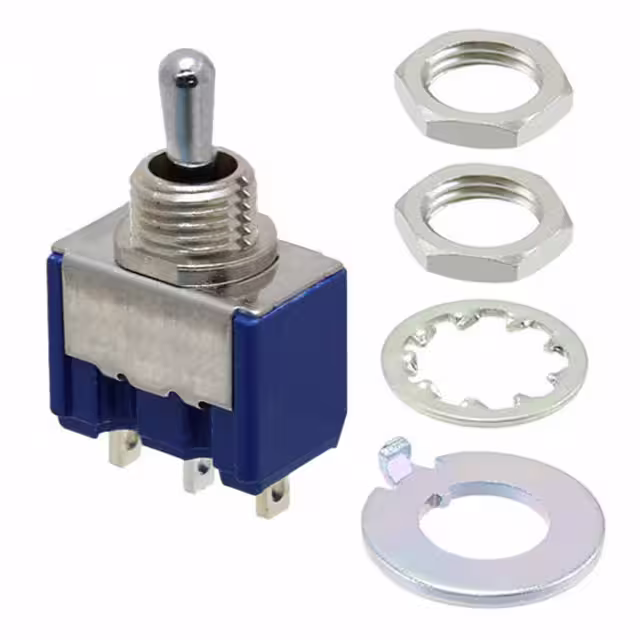

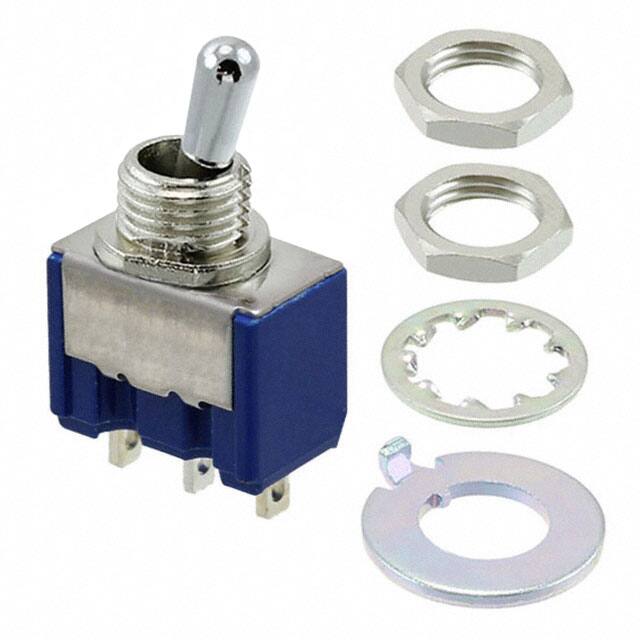

8B1021-ZSWITCH TOGGLE SPDT 6A 125V |
1,095 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
|
8B1051-ZSWITCH TOGGLE SPDT 6A 125V |
3,719 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8B1061-ZSWITCH TOGGLE SPDT 6A 125V |
2,310 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8B2041-ZSWITCH TOGGLE DPDT 6A 125V |
3,394 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

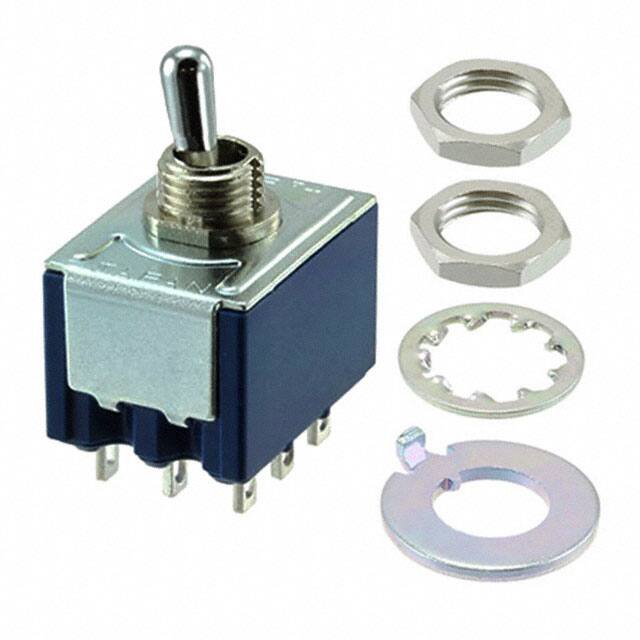

8B3021-ZSWITCH TOGGLE 3PDT 6A 125V |
1,039 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
26ET31-2-GSWITCH TOGGLE DPDT 4A 28V |
2,014 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (DC) | - | 28 V | Locking Lever | 25.90mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
12TW1-261SWITCH TOGGLE DPST-NO 5A 125V |
1,956 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TS15-5SWITCH TOGGLE DPDT 20A 125V |
2,735 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS95-5SWITCH TOGGLE SPDT 20A 125V |
2,810 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
|
AML35FBC4AC01SWITCH TOGGLE DPST 15A 125V |
4,847 |
|
Datasheet |
AML35 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Paddle | - | Illuminated | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
AML23GBA2CA04SWITCH TOGGLE SP3T 3A 125V |
2,802 |
|
Datasheet |
AML23 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | Jumper needed to achieve triple throw | - |
|
|
AML23EBA2DA04SWITCH TOGGLE DPDT 100MA 125V |
2,472 |
|
Datasheet |
AML23 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On-On | 100mA (AC/DC) | 125 V | 125 V | Paddle | - | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
