Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101P3Y1AV2KESWITCH TOGGLE SPDT 0.4VA 20V |
2,336 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825139-1SWITCH TOGGLE DPDT 5A 120V |
3,193 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flatted | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
11TS15-1SWITCH TOGGLE SPDT 20A 125V |
3,956 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS15-3SWITCH TOGGLE SPDT 20A 125V |
1,202 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS15-5SWITCH TOGGLE SPDT 20A 125V |
1,141 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS15-7SWITCH TOGGLE SPDT 20A 125V |
1,099 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
12TS15-3SWITCH TOGGLE DPDT 20A 125V |
1,074 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
12TS15-8SWITCH TOGGLE DPDT 20A 125V |
1,073 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS95-1SWITCH TOGGLE SPDT 20A 125V |
1,142 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS95-3SWITCH TOGGLE SPDT 20A 125V |
1,492 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS95-6SWITCH TOGGLE SPST-NO 20A 125V |
3,034 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS95-7SWITCH TOGGLE SPDT 20A 125V |
1,693 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
12TS95-1SWITCH TOGGLE DPDT 20A 125V |
2,365 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|

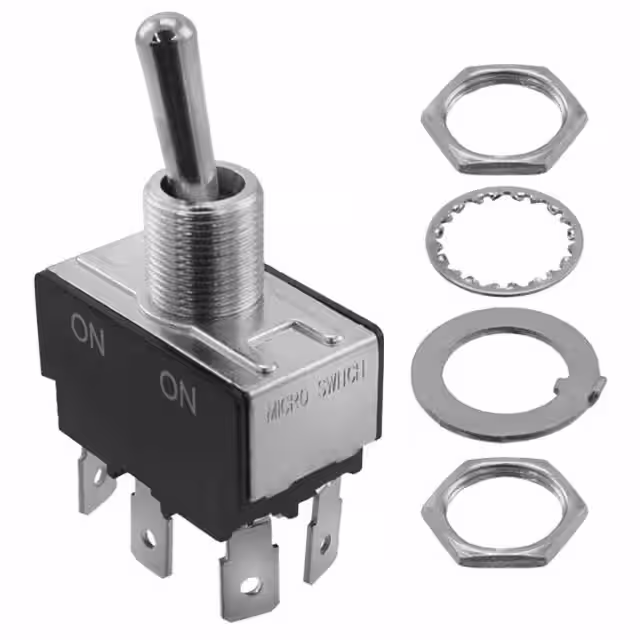

12TS95-3SWITCH TOGGLE DPDT 20A 125V |
1,748 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS115-1SWITCH TOGGLE SPDT 20A 125V |
4,645 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS115-3SWITCH TOGGLE SPDT 20A 125V |
4,983 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS115-5SWITCH TOGGLE SPDT 20A 125V |
1,980 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS115-6SWITCH TOGGLE SPST-NO 20A 125V |
1,951 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS115-7SWITCH TOGGLE SPDT 20A 125V |
2,815 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS115-8SWITCH TOGGLE SPDT 20A 125V |
3,222 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
