Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7BS-207-PMSWITCH THUMB SPDT 0.1A 50V Omron Electronics Inc-EMC Div |
2,583 |
|
Datasheet |
A7BS | Tray | Active | SPDT | +/- | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PS-206-PM-1SWITCH THUMB SPDT 0.1A 50V Omron Electronics Inc-EMC Div |
2,460 |
|
Datasheet |
A7PS | Tray | Active | SPDT | +/- | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7BL-207-1SWITCH THUMB BCD 0.1A 50V Omron Electronics Inc-EMC Div |
3,777 |
|
Datasheet |
A7BL | Tray | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | Locking Actuator | -10°C ~ 65°C |
|
|
A7D-4106-67-1SWITCH THUMB Omron Electronics Inc-EMC Div |
4,465 |
|
Datasheet |
A7D | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A7PH-206-S07SWITCH THUMB BCD 0.15A 125V Omron Electronics Inc-EMC Div |
4,736 |
|
Datasheet |
A7PH | Tube | Active | BCD | 0 ~ 7 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | Internal Stoppers | -10°C ~ 65°C |
|

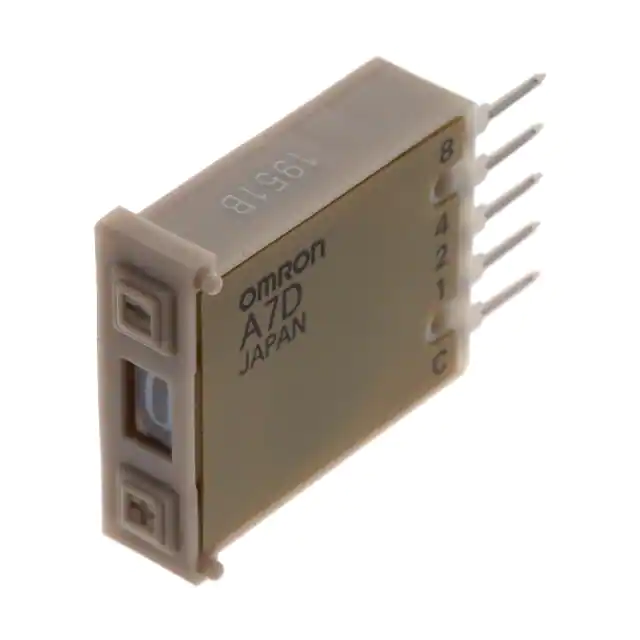

A7DP-206SWITCH THUMB BCD 0.1A 30V Omron Electronics Inc-EMC Div |
4,563 |
|
Datasheet |
A7DP | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | Pen-Push Actuator | -10°C ~ 70°C |
|
A7D-206-S06-1SWITCH THUMB BCD 0.1A 30V Omron Electronics Inc-EMC Div |
3,694 |
|
Datasheet |
A7D | Bulk | Active | BCD | 0 ~ 6 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | Internal Stoppers | -10°C ~ 70°C |
|
|
A7PS-254-1SWITCH THUMB HEX 0.1A 50V Omron Electronics Inc-EMC Div |
2,958 |
|
Datasheet |
A7PS | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.157" (4.00mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PS-203-1SWITCH THUMB DECIMAL 0.1A 50V Omron Electronics Inc-EMC Div |
3,265 |
|
Datasheet |
A7PS | Bulk | Active | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
A7PH-254-1SWITCH THUMB HEX 0.15A 125V Omron Electronics Inc-EMC Div |
1,386 |
|
Datasheet |
A7PH | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.157" (4.00mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
