Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

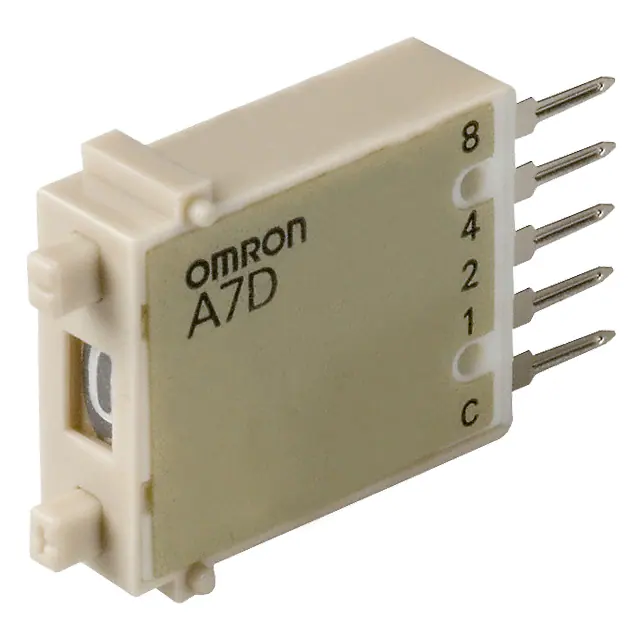

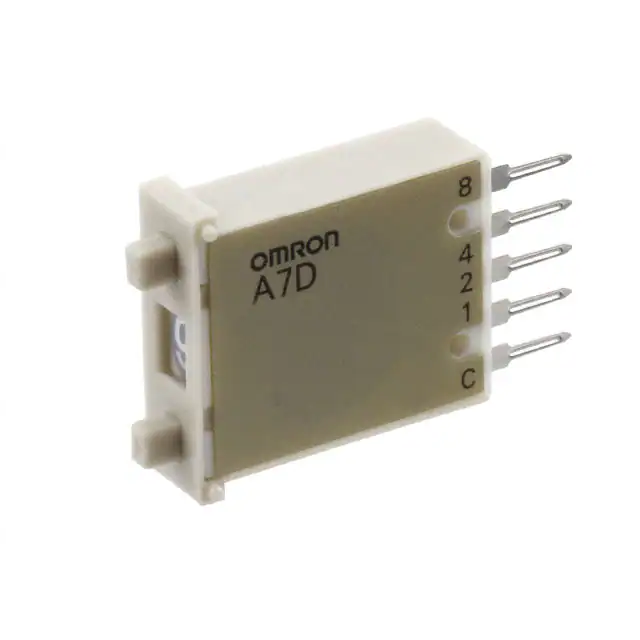

A7D-206SWITCH THUMB BCD 0.1A 30V Omron Electronics Inc-EMC Div |
4,228 |
|
Datasheet |
A7D | Tray | Active | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | - | -10°C ~ 70°C |
|
A7BS-206-SSWITCH THUMB BCD 0.1A 50V Omron Electronics Inc-EMC Div |
100 |
|
Datasheet |
A7BS | Tray | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | External Stoppers | -10°C ~ 65°C |
|
|
A7BS-206SWITCH THUMB BCD 0.1A 50V Omron Electronics Inc-EMC Div |
2,695 |
|
Datasheet |
A7BS | Tray | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
A7PS-206SWITCH THUMB BCD 0.1A 50V Omron Electronics Inc-EMC Div |
1,682 |
|
Datasheet |
A7PS | Tray | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PS-206-PMSWITCH THUMB SPDT 0.1A 50V Omron Electronics Inc-EMC Div |
1,503 |
|
Datasheet |
A7PS | Tray | Active | SPDT | +/- | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PH-206-1SWITCH THUMB BCD 0.15A 125V Omron Electronics Inc-EMC Div |
4,711 |
|
Datasheet |
A7PH | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|

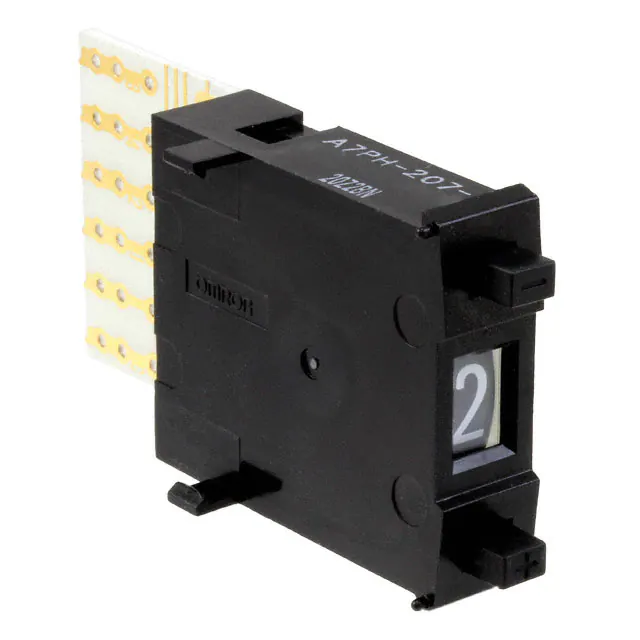

A7PH-207-1SWITCH THUMB BCD 0.15A 125V Omron Electronics Inc-EMC Div |
4,485 |
|
Datasheet |
A7PH | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
A7DP-206-S07-1SWITCH THUMB BCD 0.1A 30V Omron Electronics Inc-EMC Div |
3,147 |
|
Datasheet |
A7DP | Bulk | Active | BCD | 0 ~ 7 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | Internal Stoppers, Pen-Push Actuator | -10°C ~ 70°C |
|
A7D-106SWITCH THUMB BCD 0.1A 30V Omron Electronics Inc-EMC Div |
1,573 |
|
Datasheet |
A7D | Tray | Active | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.200" (5.08mm) | - | - | -10°C ~ 70°C |
|

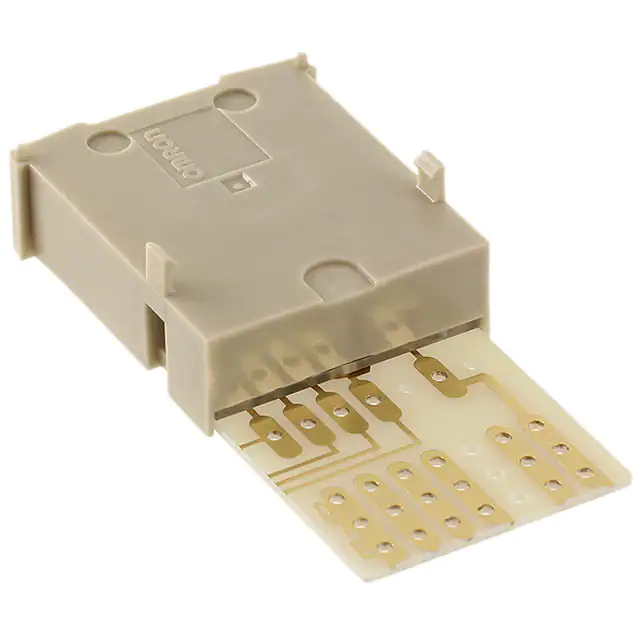

A7BS-207SWITCH THUMB BCD 0.1A 50V Omron Electronics Inc-EMC Div |
2,023 |
|
Datasheet |
A7BS | Tray | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
