Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

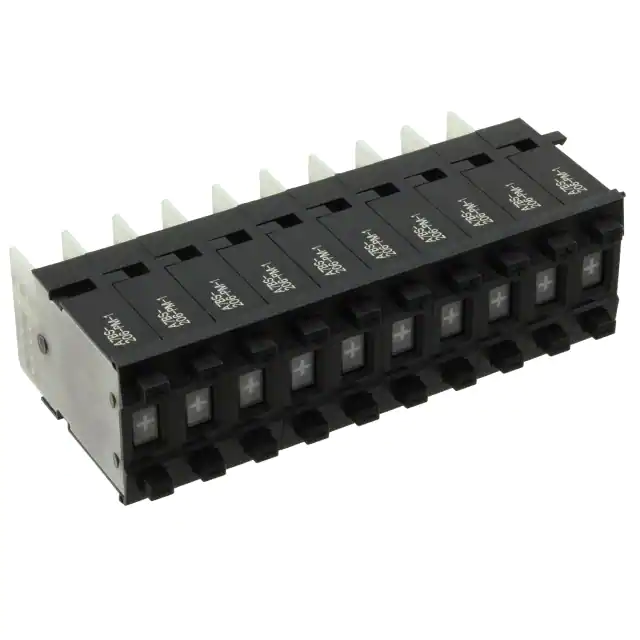

A7BS-206-PM-1SWITCH THUMB SPDT 0.1A 50V Omron Electronics Inc-EMC Div |
2,729 |
|
Datasheet |
A7BS | Tray | Active | SPDT | +/- | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|

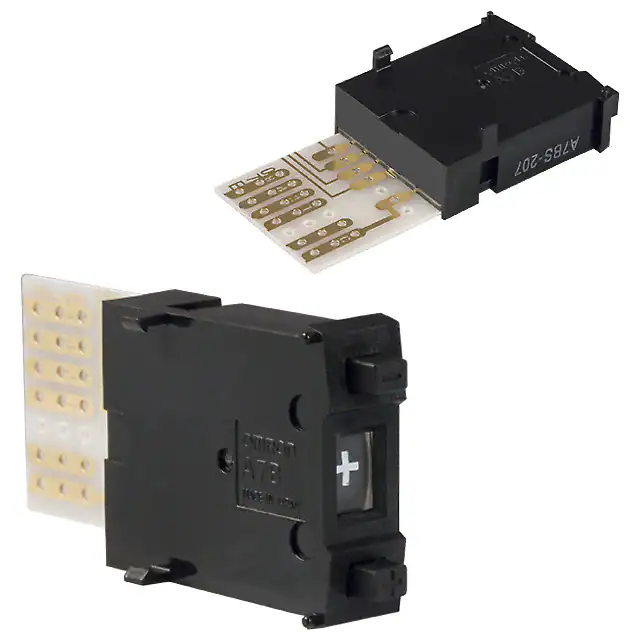

A7BS-207-PM-1SWITCH THUMB SPDT 0.1A 50V Omron Electronics Inc-EMC Div |
1,925 |
|
Datasheet |
A7BS | Tray | Active | SPDT | +/- | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
A7PS-207-1SWITCH THUMB BCD 0.1A 50V Omron Electronics Inc-EMC Div |
1,766 |
|
Datasheet |
A7PS | Tray | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7CN-L206-1SWITCH THUMB BCD 0.1A 28V Omron Electronics Inc-EMC Div |
4,102 |
|
Datasheet |
A7CN | Tube | Active | BCD | 0 ~ 9 | 1 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 28VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.236" (6.00mm) | - | Locking Actuator | -10°C ~ 65°C |
|
|
A7PH-207SWITCH THUMB BCD 0.15A 125V Omron Electronics Inc-EMC Div |
3,149 |
|
Datasheet |
A7PH | Tray | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PS-255SWITCH THUMB HEX 0.1A 50V Omron Electronics Inc-EMC Div |
1,190 |
|
Datasheet |
A7PS | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.157" (4.00mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PH-207-D-1SWITCH THUMB BCD 0.15A 125V Omron Electronics Inc-EMC Div |
3,272 |
|
Datasheet |
A7PH | Tube | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | Diode | -10°C ~ 65°C |
|
|
A7PH-206SWITCH THUMB BCD 0.15A 125V Omron Electronics Inc-EMC Div |
1,671 |
|
Datasheet |
A7PH | Tray | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7DP-206-PM-1SWITCH THUMB SPDT 0.1A 30V Omron Electronics Inc-EMC Div |
2,402 |
|
Datasheet |
A7DP | Bulk | Active | SPDT | +/- | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | Pen-Push Actuator | -10°C ~ 70°C |
|
|
A7CN-206-PM-1SWITCH THUMB SPDT 0.1A 28V Omron Electronics Inc-EMC Div |
1,358 |
|
Datasheet |
A7CN | Tube | Active | SPDT | +/- | 1 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 28VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.236" (6.00mm) | - | - | -10°C ~ 65°C |
