Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HD-950_Series.jpg)
|
CCHD-950-50-49.152XTAL OSC XO 49.1520MHZ HCMOS SMD Crystek Corporation |
3,718 |
|
Datasheet |
CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 49.152 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CCHD-950-50-80.000XTAL OSC XO 80.0000MHZ HCMOS SMD Crystek Corporation |
6,407 |
|
Datasheet |
CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 80 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|

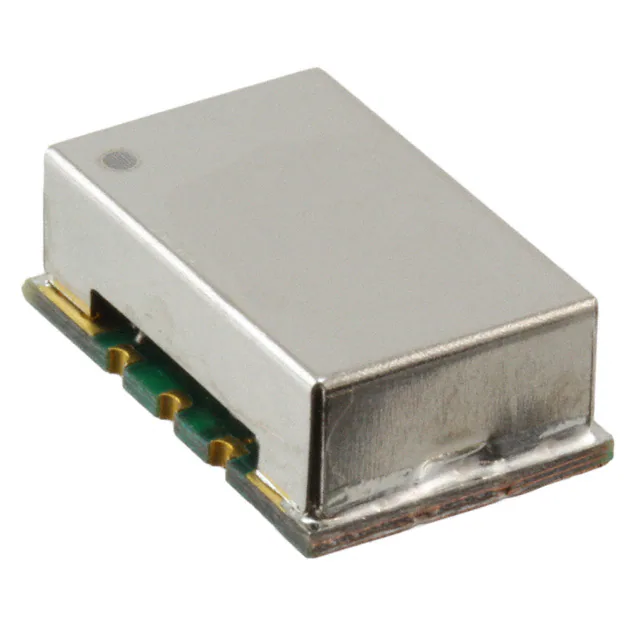

CVHD-952-148.500XTAL OSC VCXO 148.5000MHZ HCMOS Crystek Corporation |
3,122 |
|
Datasheet |
CVHD-952 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 148.5 MHz | Enable/Disable | HCMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 35mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.210" (5.33mm) |
|
|
CVHD-952-153.600XTAL OSC VCXO 153.6000MHZ HCMOS Crystek Corporation |
4,561 |
|
Datasheet |
CVHD-952 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 153.6 MHz | Enable/Disable | HCMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 35mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.210" (5.33mm) |
|
CCO-083-100.000XTAL OSC XO 100.0000MHZ SNWV TH Crystek Corporation |
3,443 |
|
Datasheet |
CCO | 14-DIP, 4 Leads (Full Size, Metal Can) | Box | Active | Crystal | XO (Standard) | 100 MHz | - | Sine Wave | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 14-DIP | 0.820" L x 0.520" W (20.83mm x 13.21mm) | 0.300" (7.62mm) |
|
CPRO33-20.000XTAL OSC XO 20.0000MHZ HCMOS Crystek Corporation |
6,540 |
|
Datasheet |
CPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | XO (Standard) | 20 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 18mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
PPRO30-26.000XTAL OSC TCXO 26.0000MHZ SNWV Crystek Corporation |
8,129 |
|
Datasheet |
PPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 3V | ±2.5ppm | - | -20°C ~ 75°C | - | 2mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
CCSO-914X-245.760XTAL OSC SO 245.7600MHZ SNWV SMD Crystek Corporation |
5,168 |
|
Datasheet |
CCSO | 4-SMD, No Lead | Strip | Active | Crystal | SO (SAW) | 245.76 MHz | - | Sine Wave | 5V | ±150ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.210" (5.33mm) |
|
C3290-1.544XTAL OSC XO 1.5440MHZ HCMOS TTL Crystek Corporation |
4,727 |
|
Datasheet |
C3290 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 1.544 MHz | Enable/Disable | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 60mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.071" (1.80mm) |
|
|
C3290-1.843200XTAL OSC XO 1.8432MHZ HCMOS TTL Crystek Corporation |
8,992 |
|
Datasheet |
C3290 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 1.8432 MHz | Enable/Disable | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 60mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.071" (1.80mm) |
