Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCHD-575-50-125.000XTAL OSC XO 125.0000MHZ HCMOS Crystek Corporation |
2,819 |
|
Datasheet |
CCHD-575 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 125 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.295" L x 0.200" W (7.50mm x 5.08mm) | 0.098" (2.50mm) |
HD-950_Series.jpg)
|
CCHD-950-50-100.000XTAL OSC XO 100.0000MHZ HCMOS Crystek Corporation |
1,665 |
|
Datasheet |
CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 100 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
CCPD-575X-50-100.000XTAL OSC XO 100.0MHZ 3.3V HCMOS Crystek Corporation |
1,193 |
|
Datasheet |
CCPD-575 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVPECL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 88mA | - | Surface Mount | - | 0.295" L x 0.200" W (7.50mm x 5.08mm) | 0.098" (2.50mm) |
|
CVSS-945-50.000XTAL OSC VCXO 50.0000MHZ SNWV Crystek Corporation |
4,444 |
|
Datasheet |
CVSS-945 | 4-SMD, No Lead | Strip | Active | Crystal | VCXO | 50 MHz | - | Sine Wave | 5V | - | ±20ppm | 0°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|

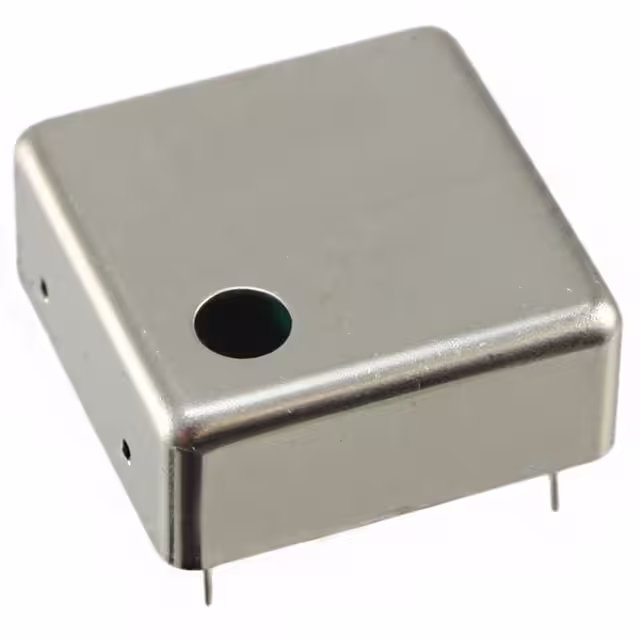

CXOH20-BP-10.000XTAL OSC TCXO 10.0000MHZ HCMOS Crystek Corporation |
4,619 |
|
Datasheet |
CXOH20 | 6-DIP (0.600", 15.24mm), 5 Leads | Box | Active | Crystal | TCXO | 10 MHz | - | HCMOS | 5V | ±1ppm | - | -10°C ~ 60°C | - | 20mA | - | Through Hole | - | 0.787" L x 0.787" W (20.00mm x 20.00mm) | 0.413" (10.50mm) |
|
CPRO33-10.000XTAL OSC XO 10.0000MHZ HCMOS Crystek Corporation |
4,248 |
|
Datasheet |
CPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | XO (Standard) | 10 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 18mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
|
CPRO33-125.000XTAL OSC XO 125.0000MHZ HCMOS Crystek Corporation |
2,492 |
|
Datasheet |
CPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | XO (Standard) | 125 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 45mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
|
CPRO33-50.000XTAL OSC XO 50.0000MHZ HCMOS Crystek Corporation |
3,292 |
|
Datasheet |
CPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | XO (Standard) | 50 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 25mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
PPRO30-40.000XTAL OSC TCXO 40.0000MHZ SNWV Crystek Corporation |
3,380 |
|
Datasheet |
PPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | TCXO | 40 MHz | - | Clipped Sine Wave | 3V | ±2.5ppm | - | -20°C ~ 75°C | - | 2mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
CPRO33-30.720XTAL OSC XO 30.7200MHZ HCMOS Crystek Corporation |
2,719 |
|
Datasheet |
CPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | XO (Standard) | 30.72 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 18mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
