Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCHD-957-25-22.5792XTAL OSC XO 22.5792MHZ HCMOS SMD Crystek Corporation |
4,499 |
|
Datasheet |
CCHD-957 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 22.5792 MHz | Enable/Disable | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
CVSS-945-80.000XTAL OSC VCXO 80.0000MHZ SNWV Crystek Corporation |
3,192 |
|
Datasheet |
CVSS-945 | 4-SMD, No Lead | Strip | Active | Crystal | VCXO | 80 MHz | - | Sine Wave | 5V | - | ±20ppm | 0°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
CCPD-575X-20-125.000XTAL OSC XO 125.0000MHZ LVPECL Crystek Corporation |
3,782 |
|
Datasheet |
CCPD-575 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVPECL | 3.3V | ±20ppm | - | -40°C ~ 85°C | - | 88mA | - | Surface Mount | - | 0.295" L x 0.200" W (7.50mm x 5.08mm) | 0.098" (2.50mm) |
|

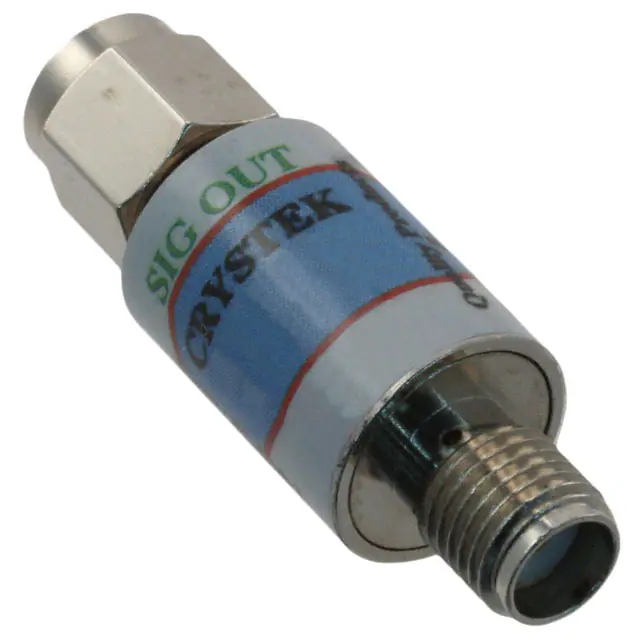

RFPRO33-500.000XTAL OSC SO 500.0000MHZ SNWV Crystek Corporation |
1,627 |
|
Datasheet |
RFPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | SO (SAW) | 500 MHz | - | Sine Wave | 3.3V | -150ppm, +100ppm | - | -20°C ~ 70°C | - | 25mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
|
RFPRO33-1000.000XTAL OSC SO 1.0000GHZ SNWV Crystek Corporation |
3,105 |
|
Datasheet |
RFPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | SO (SAW) | 1 GHz | - | Sine Wave | 3.3V | -150ppm, +100ppm | - | -20°C ~ 70°C | - | 25mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
CRBSCS-01-100.000XTAL OSC RF CLK SRC 100.0000MHZ Crystek Corporation |
1,644 |
|
Datasheet |
CRBSCS, RedBox | Module Adapter, SMA F (3) | Bulk | Active | Crystal | RF Clock Source | 100 MHz | - | Sine Wave | 5.5V | ±150ppm | - | -40°C ~ 85°C | - | 50mA | - | - | - | 1.250" L x 1.250" W (31.75mm x 31.75mm) | 0.590" (14.99mm) |
|
|
CRBSCS-01-1000.000XTAL OSC RF CLK SRC 1.0000GHZ SN Crystek Corporation |
2,964 |
|
Datasheet |
CRBSCS, RedBox | Module Adapter, SMA F (3) | Bulk | Active | Crystal | RF Clock Source | 1 GHz | - | Sine Wave | 5.5V | ±150ppm | - | -40°C ~ 85°C | - | 50mA | - | - | - | 1.250" L x 1.250" W (31.75mm x 31.75mm) | 0.590" (14.99mm) |
|

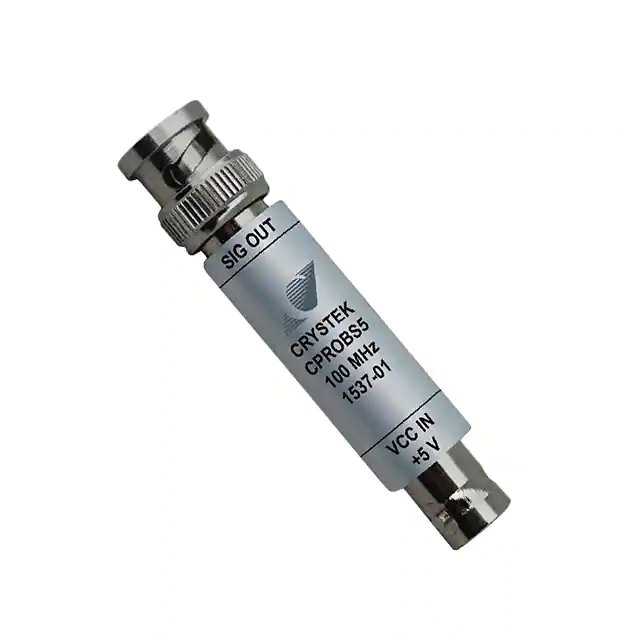

CPROBS5-0100XTAL OSC XO 100.0000MHZ SNWV Crystek Corporation |
2,390 |
|
Datasheet |
PRO | Module Adapter, BNC M to F | Box | Active | Crystal | XO (Standard) | 100 MHz | - | Sine Wave | 5V | ±25ppm | - | 0°C ~ 70°C | - | 30mA | - | Free Hanging | - | 0.550" Dia x 2.590" L (13.97mm x 65.79mm) | - |
|
|
CPROBS5-0010XTAL OSC XO 10.0000MHZ SN INLNE Crystek Corporation |
2,710 |
|
Datasheet |
PRO | Module Adapter, BNC M to F | Box | Active | Crystal | XO (Standard) | 10 MHz | - | Sine Wave | 5V | ±25ppm | - | 0°C ~ 70°C | - | 30mA | - | Free Hanging | - | 0.550" Dia x 2.590" L (13.97mm x 65.79mm) | - |
|
CCHD-575-50-80.000XTAL OSC XO 80.0000MHZ HCMOS SMD Crystek Corporation |
4,407 |
|
Datasheet |
CCHD-575 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 80 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.295" L x 0.200" W (7.50mm x 5.08mm) | 0.098" (2.50mm) |
