DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8025B-235-364-20FAN AXIAL 80X25MM 24VDC WIRE |
301 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.4dB(A) | 3.6 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-08025DBJW12-AFAN AXIAL 80X25MM 24VDC WIRE |
358 |
|
Datasheet |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 3.84 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
FAD1-08025CBKW12-AFAN AXIAL 80X25MM 12VDC WIRE |
263 |
|
Datasheet |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.8 CFM (1.59m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 48.1dB(A) | 5.4 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
FAD1-04010CBLW11FAN AXIAL 40X10MM 12VDC WIRE |
629 |
|
Datasheet |
FAD1-04010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 21.0dB(A) | 720 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
CFM-A225V-227-405FAN AXIAL 120X25MM 24VDC WIRE |
158 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 40.5dB(A) | 4.03 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
F410T-05MCFAN AXIAL 40X10MM 5VDC WIRE |
1,071 |
|
Datasheet |
F410T | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | Tubeaxial | - | 18.0dB(A) | 600 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
F410T-12LCFAN AXIAL 40X10MM 12VDC WIRE |
732 |
|
Datasheet |
F410T | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | Tubeaxial | - | 12.0dB(A) | 480 mW | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
F310R-12LLCFAN AXIAL 30X10MM 12VDC WIRE |
1,188 |
|
Datasheet |
F310R | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.056 in H2O (13.9 Pa) | Sleeve | Tubeaxial | - | 13.0dB(A) | 300 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
MR9225X24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
3,766 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 107.0 CFM (3.00m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|

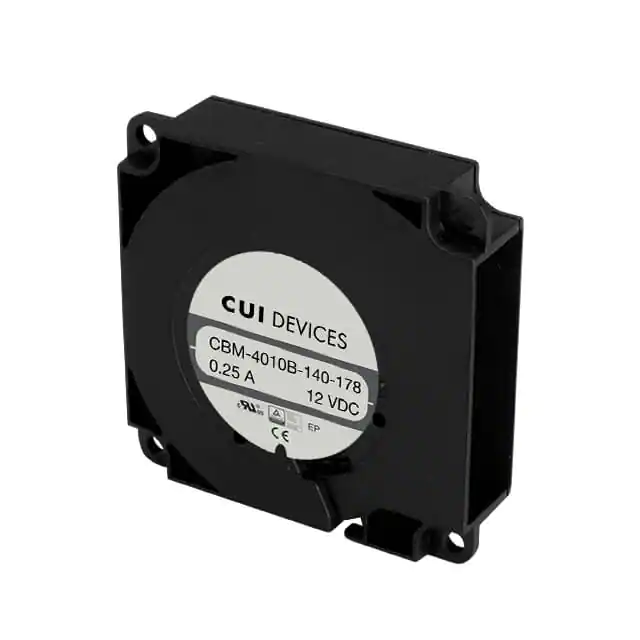

CBM-4010B-140-178-20FAN BLOWER 39.5X10MM 12VDC WIRE |
368 |
|
Datasheet |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 17.8dB(A) | 960 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MF30060V1-1000U-G99FAN AXIAL 30X6.5MM 5VDC WIRE |
461 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 6.50mm | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.6dB(A) | 560 mW | 9100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.035 lb (15.88 g) |
|
CFM-5010-13-10FAN AXIAL 50X10.6MM 12VDC WIRE |
268 |
|
Datasheet |
CFM-50 | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 10.60mm | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | 1.68 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
|

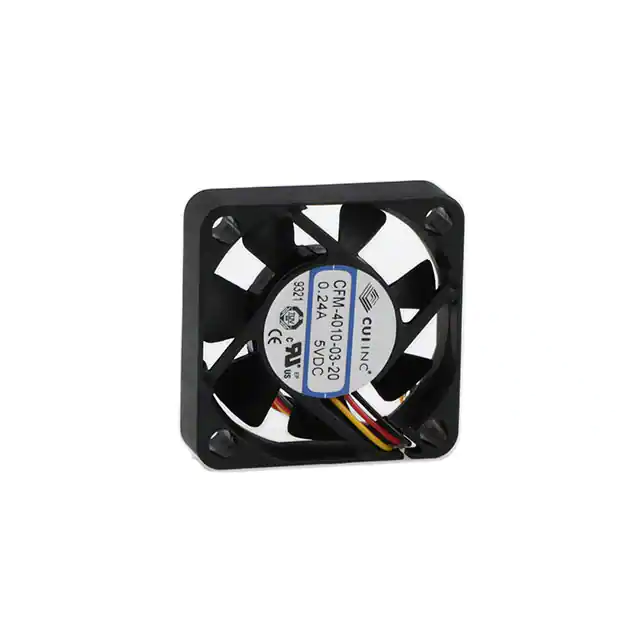

CFM-4010-03-20FAN AXIAL 40X10.6MM 5VDC WIRE |
1,993 |
|
Datasheet |
CFM-40 | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.60mm | 10.0 CFM (0.280m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 1.2 W | 8300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.031 lb (14.06 g) |
|
CFM-8020BF-135-346FAN AXIAL 80X20MM 12VDC WIRE |
127 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 34.7dB(A) | 1.8 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
M5210E12C-RSRFAN AXIAL 52X10MM 12VDC WIRE |
214 |
|
Datasheet |
M5210 | Bulk | Active | 12VDC | Square - 52mm L x 52mm H | 10.00mm | 11.3 CFM (0.316m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.044 lb (19.96 g) |
|
|
4145/MF30101V1-1000U-A99FAN AXIAL 30X10MM VAPO 12VDC |
988 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 660 mW | 11500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.018 lb (8.16 g) |
|
CFM-4010-13-20FAN AXIAL 40X10.6MM 12VDC WIRE |
1,679 |
|
Datasheet |
CFM-40 | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.60mm | 10.0 CFM (0.280m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 1.56 W | 8300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.032 lb (14.51 g) |
|
M5210E05C-RSRFAN AXIAL 52X10MM 5VDC WIRE |
187 |
|
Datasheet |
M5210 | Bulk | Active | 5VDC | Square - 52mm L x 52mm H | 10.00mm | 11.3 CFM (0.316m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.044 lb (19.96 g) |
|
CFM-9225B-225-317-20FAN AXIAL 92X25MM 24VDC WIRE |
131 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.7dB(A) | 1.92 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9A0612G4011FAN AXIAL 60X25MM 12VDC WIRE |
1,696 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
