DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

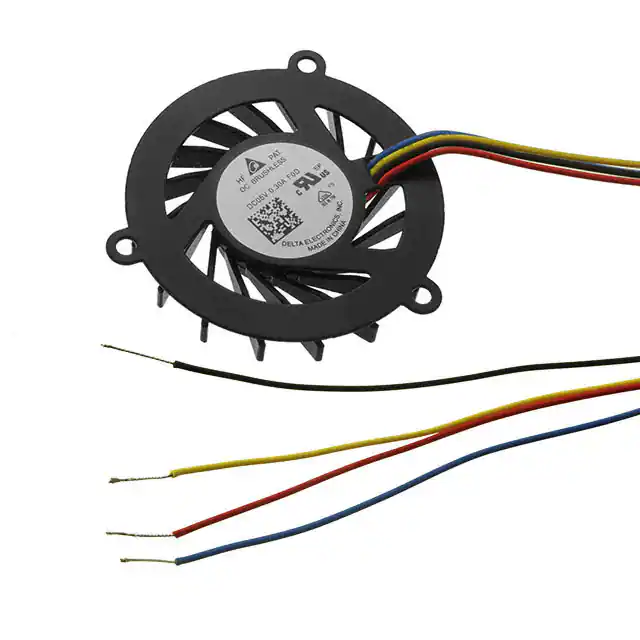

KSB0405HBF0DFAN IMP MTR FRAMEL 42X8.5MM 5VDC |
2,020 |
|
Datasheet |
KSB - Frameless | Box | Active | 5VDC | Round - 42mm Dia | 8.50mm | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Motorized Impellers, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 800 mW | 3150 RPM | 4 Wire Leads | - | 32 ~ 158°F (0 ~ 70°C) | CE, cURus, VDE | 0.022 lb (9.98 g) |
|

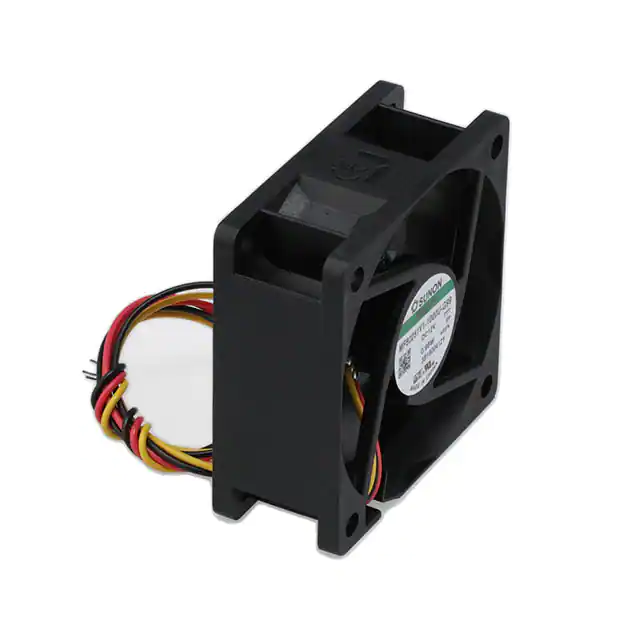

MF60251V1-1000U-G99FAN AXIAL 60X25MM 12VDC WIRE |
775 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 900 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
|
06025SA-24P-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,326 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.7 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-24K-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,107 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 17.0dB | 700 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

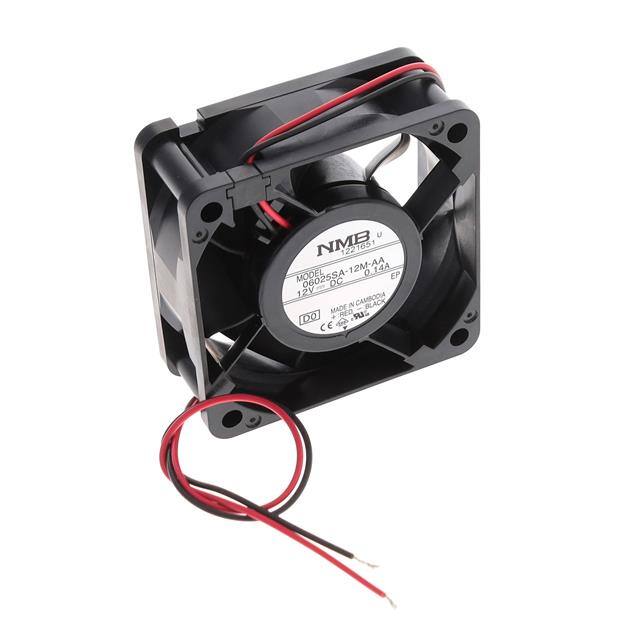

06025SA-12M-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
353 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 27.5dB | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12M-EA-D0FAN AXIAL 60X25MM 12VDC WIRE |
291 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 27.5dB | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12P-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
291 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 2.04 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD9225-24HSSFAN AXIAL 92.5X25MM 24VDC WIRE |
129 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | Tubeaxial | - | 35.0dB | 3.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
109R0624G4D01FAN AXIAL 60X25MM 24VDC WIRE |
718 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
06025SA-12K-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
572 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 17.0dB | 700 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

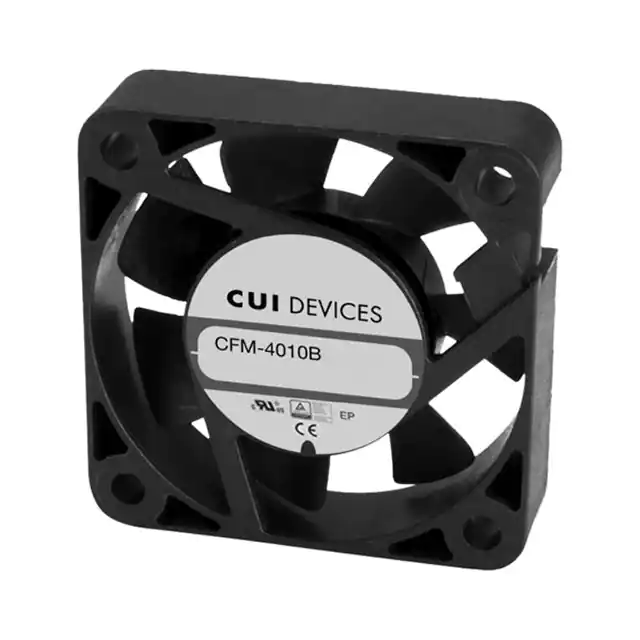

CFM-4010B-065-251-22FAN AXIAL 40X10.5MM 5VDC WIRE |
189 |
|
Datasheet |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.1dB(A) | 850 mW | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

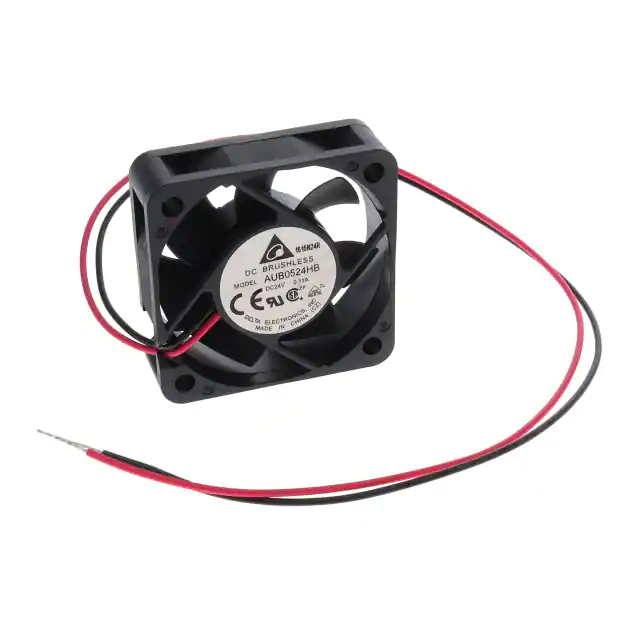

AUB0524HBFAN AXIAL 50X15MM 24VDC WIRE |
1,048 |
|
Datasheet |
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.68 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

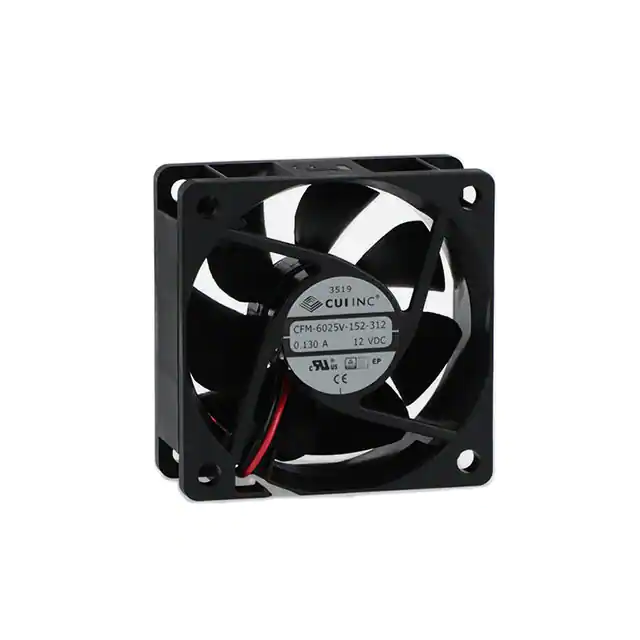

CFM-6025V-152-312FAN AXIAL 60X25MM 12VDC WIRE |
809 |
|
Datasheet |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 31.2dB(A) | 1.8 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
HAC0251S4-1000U-999FAN 120X25MM 12VDC |
147 |
|
Datasheet |
HAC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 55.1 CFM (1.54m³/min) | 0.070 in H2O (17.4 Pa) | Sleeve | Tubeaxial | - | 28.8dB(A) | 1.06 W | 1600 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

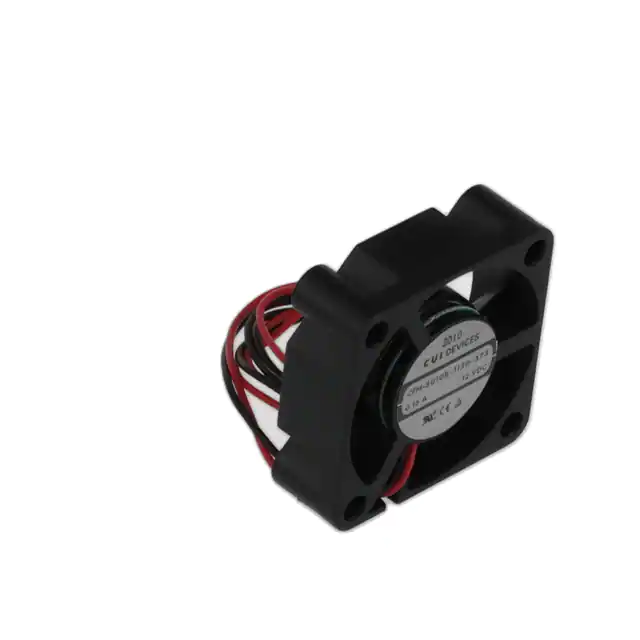

CFM-3010B-1130-373FAN AXIAL 30X10.5MM 12VDC WIRE |
160 |
|
Datasheet |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.3dB(A) | 2.04 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MF40202VX-1000U-F99FAN AXIAL 40X20MM 24VDC WIRE |
368 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB(A) | 940 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
9S0612S401FAN AXIAL 60X25MM 12VDC WIRE |
4,152 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
AFB0812HD-AFAN AXIAL 80X20MM 12VDC WIRE |
1,964 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 49.3 CFM (1.38m³/min) | 0.249 in H2O (62.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.64 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
|
04010SA-05L-AAD-0FAN AXIAL 40X10MM BALL 5VDC WIRE |
407 |
|
Datasheet |
04010SA | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 21.5dB | 400 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

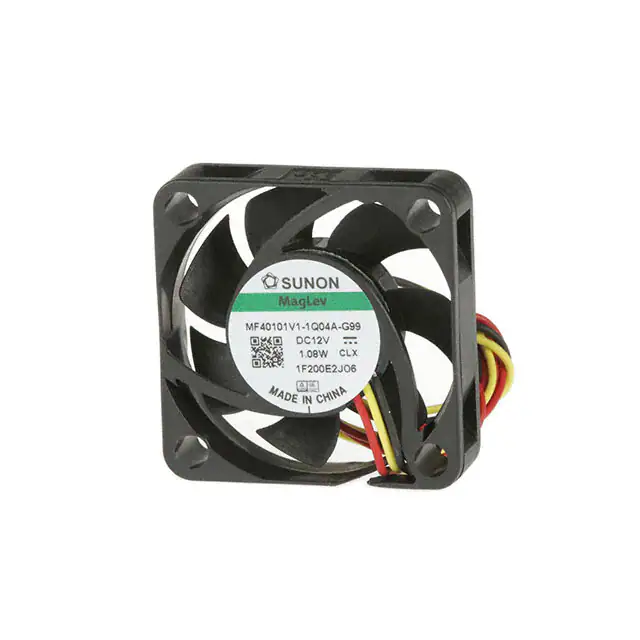

4507HQ/MF40101V1-1Q04A-G99FAN AXIAL 40X10MM VAPO 12VDC |
557 |
|
- |
MagLev® MF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 940 mW | 7700 RPM | - | - | -22 ~ 194°F (-30 ~ 90°C) | cURus, TUV | 0.035 lb (15.88 g) |
