DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD8025-24HSSFAN AXIAL 80X25MM 24VDC WIRE |
690 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.160 in H2O (39.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 34.0dB | 2.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.191 lb (86.64 g) |
|

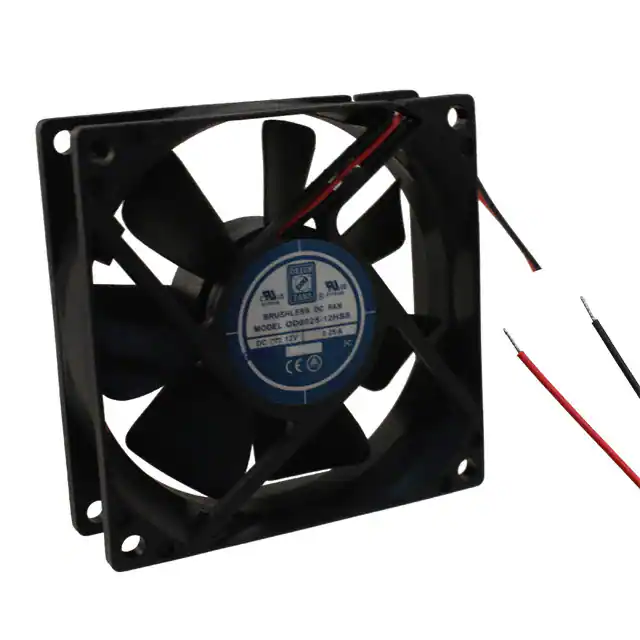

OD8025-12HSSFAN AXIAL 80X25MM 12VDC WIRE |
385 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.160 in H2O (39.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 34.0dB | 2.9 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
06025SS-24R-AT-D0FAN AXIAL 60X25MM 24VDC WIRE |
2,271 |
|
Datasheet |
06025SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.410 in H2O (102.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.5dB | 3.6 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
08015SS-24N-AT-00FAN AXIAL 80X15MM 24VDC WIRE |
260 |
|
Datasheet |
08015SS | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 34.0 CFM (0.952m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB | 2.88 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
CFM-4020BF-235-114FAN AXIAL 40X20MM 24VDC WIRE |
544 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 11.4dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

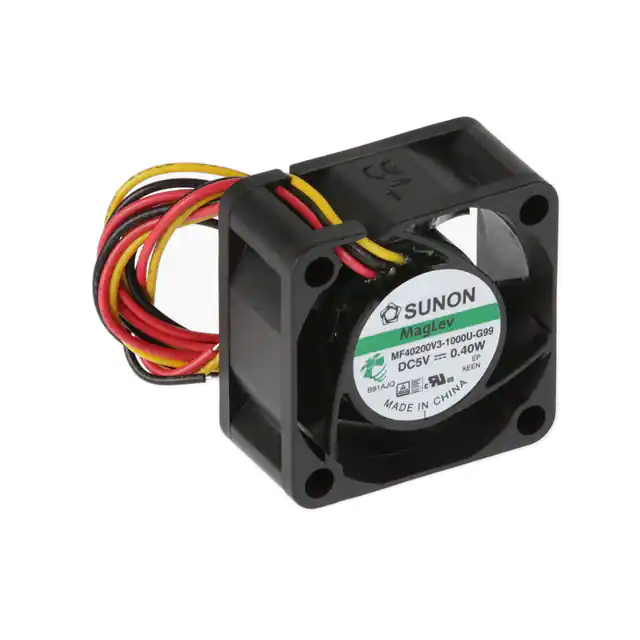

MF40200V3-1000U-G99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
492 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 16.5dB(A) | 380 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
|
BSB0205HA5-00HSFBLOWER SQUARE 20X5MM 5VDC PWM |
489 |
|
Datasheet |
BSB | Box | Active | 5VDC | Square - 20mm L x 20mm H | 5.00mm | 0.530 CFM (0.015m³/min) | 0.432 in H2O (107.7 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.7dB(A) | 0.5 W | 10500 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

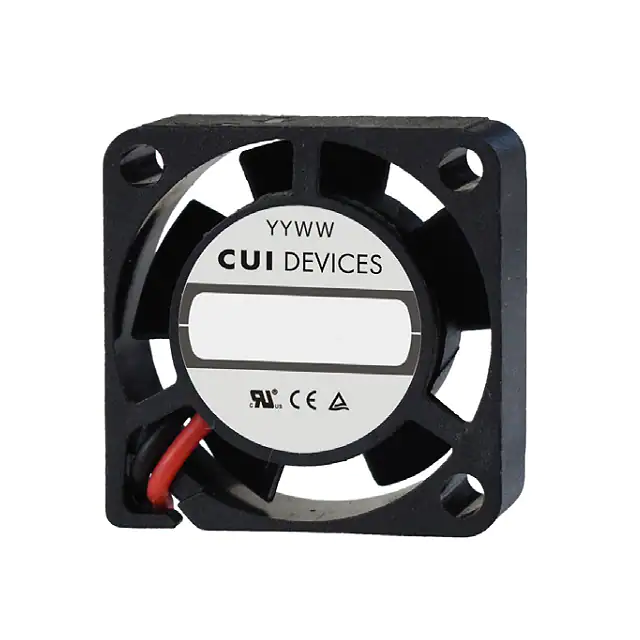

CFM-2510B-070-140FAN AXIAL 25X10MM BALL 5VDC WIRE |
173 |
|
Datasheet |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 14.1dB(A) | 600 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6015V-254-362-20FAN AXIAL 60X15MM 24VDC WIRE |
3,199 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 30.4 CFM (0.851m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.2dB(A) | 2.36 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
CFM-4020V-260-210-20FAN AXIAL 40X20MM 24VDC WIRE |
332 |
|
Datasheet |
CFM-40V | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 720 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-6015V-239-292-20FAN AXIAL 60X15MM 24VDC WIRE |
178 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 22.8 CFM (0.638m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.2dB(A) | 1.16 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
MF60152V2-1000U-A99FAN AXIAL 60X15MM 24VDC WIRE |
1,661 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 22.8 CFM (0.638m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.2dB(A) | 960 mW | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.079 lb (35.83 g) |
|
MF60201V2-1000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
1,522 |
|
Datasheet |
MagLev® MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 780 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
|
MF60251VX-1000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
967 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.2dB(A) | 1.56 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
|
|
MF60201V1-1000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
469 |
|
Datasheet |
MagLev® MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 33.5dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
|

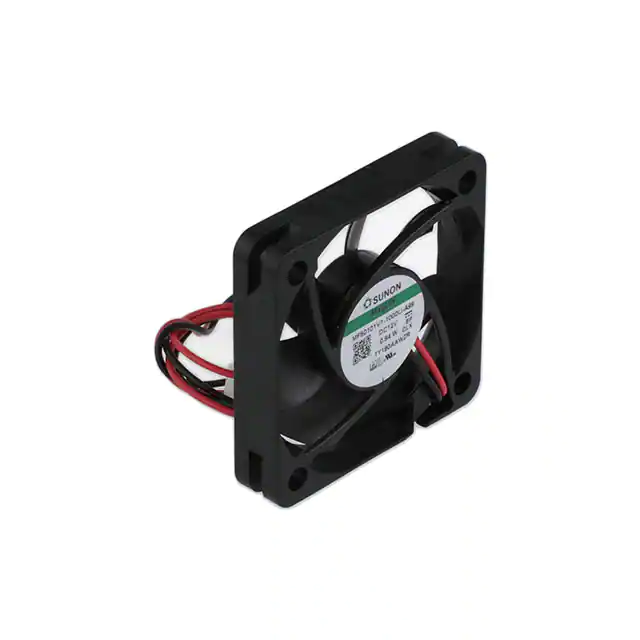

4131/MF50101V1-1000U-A99FAN AXIAL 50X10MM VAPO 12VDC |
536 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.7dB(A) | 840 mW | 5800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.043 lb (19.5 g) |
|
4140/MF40101VX-1000U-A99FAN AXIAL 40X10MM VAPO 12VDC |
357 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.4dB(A) | 1.05 W | 8500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.035 lb (15.88 g) |
|

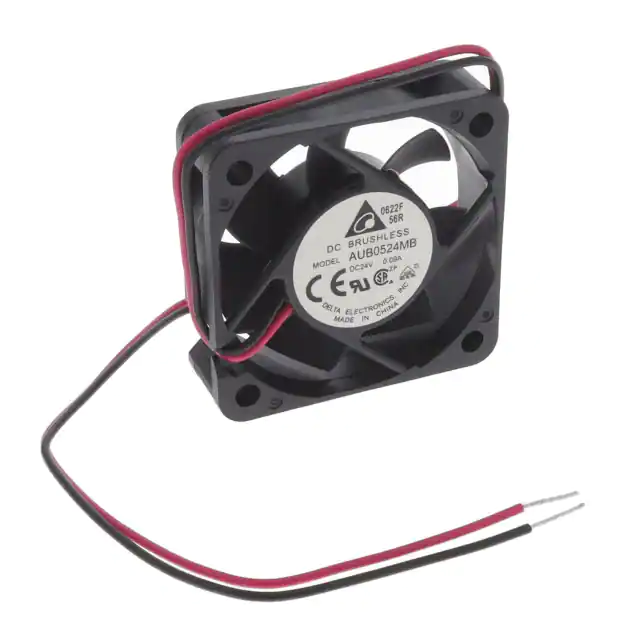

AUB0524MBFAN AXIAL 50X15MM 24VDC WIRE |
1,208 |
|
Datasheet |
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

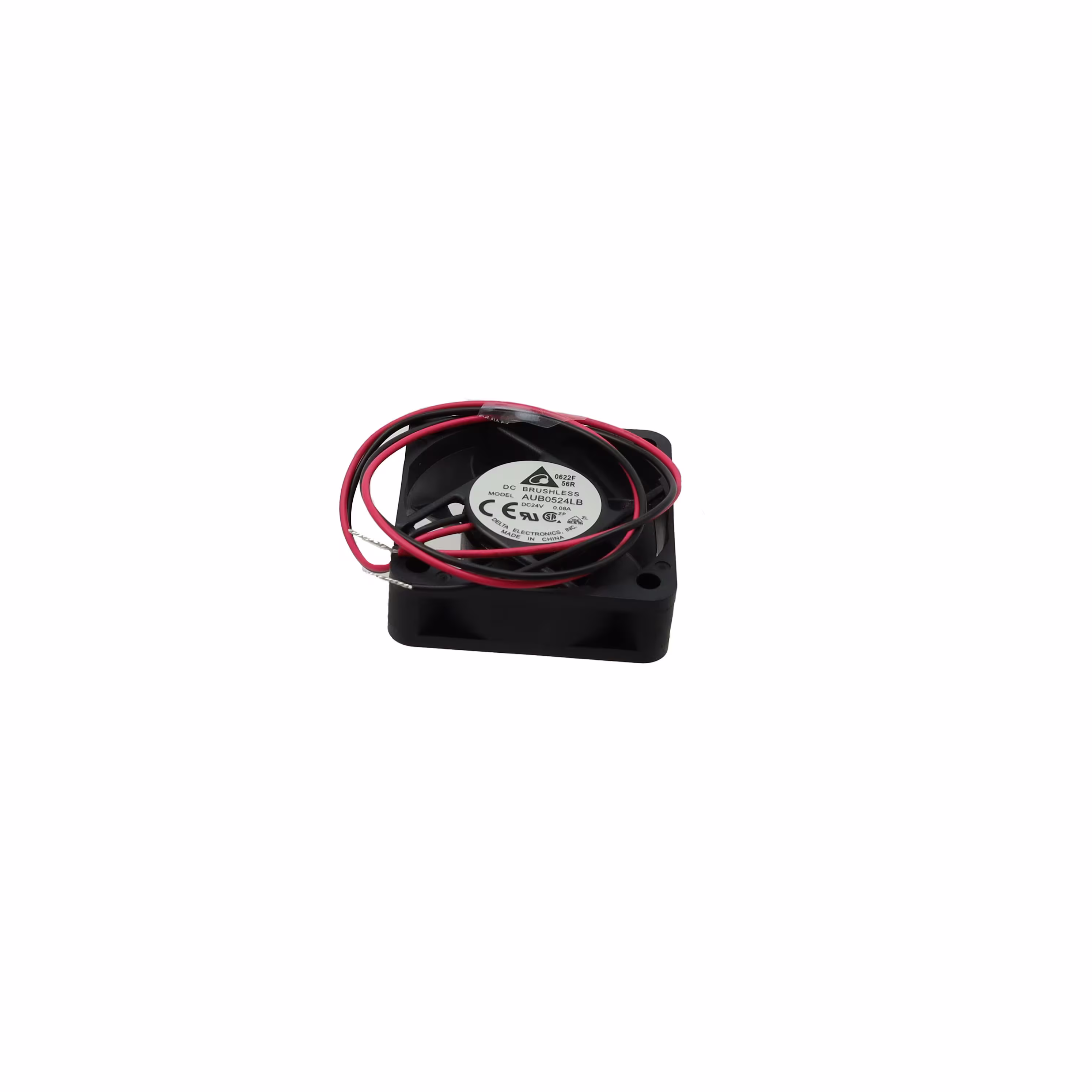

AUB0524LBFAN AXIAL 50X15MM 24VDC WIRE |
772 |
|
Datasheet |
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.126 in H2O (31.4 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
4137/MF40202V2-1000U-A99FAN AXIAL 40X20MM VAPO 24VDC |
349 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 600 mW | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
