DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

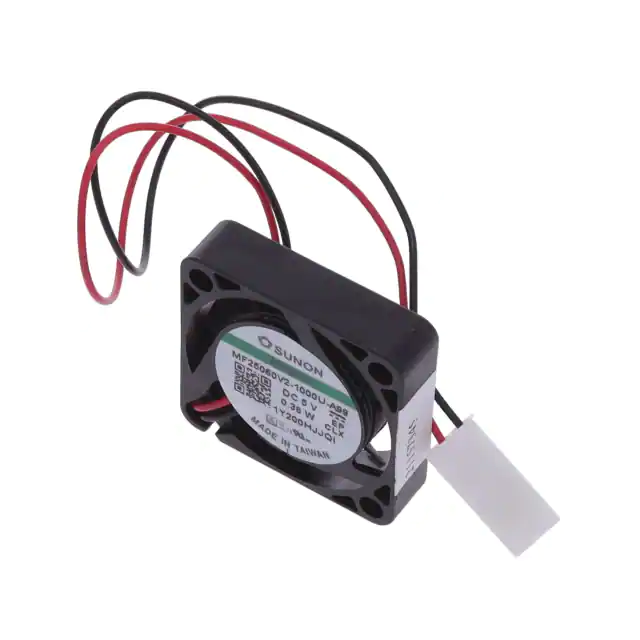

4138/MF25060V2-1000U-A99FAN AXIAL 25X6.5MM VAPO 5VDC Sunon Fans |
3,751 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.50mm | 2.2 CFM (0.061m³/min) | 0.160 in H2O (40.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 18.0dB(A) | 380 mW | 10000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.012 lb (5.44 g) |
|

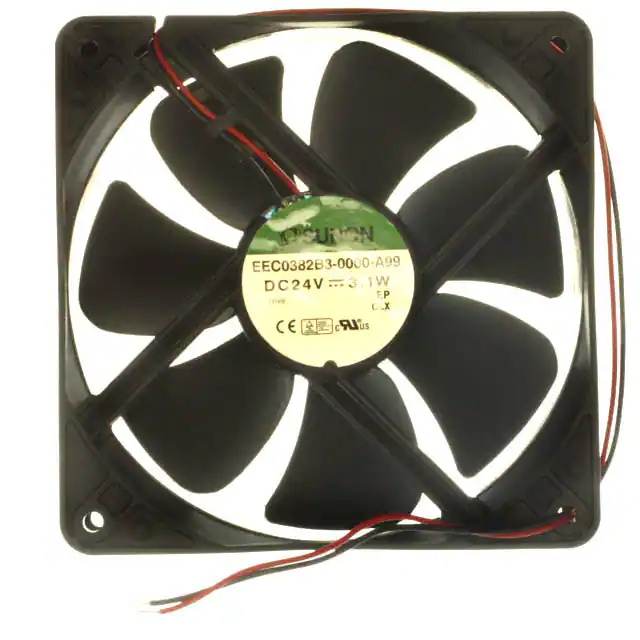

EEC0382B3-000U-A99FAN AXIAL 120X38MM 24VDC WIRE Sunon Fans |
1,368 |
|
Datasheet |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | 3.1 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|
EEC0254B3-000U-A99FAN AXIAL 120X25MM 48VDC WIRE Sunon Fans |
2,137 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 2.6 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|
MF60101V1-1000U-F99FAN AXIAL 60X10MM 12VDC WIRE Sunon Fans |
1,992 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 1.3 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.051 lb (23.13 g) |
|
4556HQ/EG50040S1-C912-S9AFAN BLOWER 67.5X4.6MM 5VDC RECT Sunon Fans |
1,485 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 67.5mm L x 54mm H | 4.60mm | 2.6 CFM (0.073m³/min) | 0.680 in H2O (169.4 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.4dB(A) | 2 W | 5100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.029 lb (13.15 g) |
|
|
4548HQ/EG50040S1-CG61-S9AFAN BLOWER 61.28X5.55MM 5VDC Sunon Fans |
3,385 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 61.28mm L x 52.75mm H | 5.55mm | 2.7 CFM (0.076m³/min) | 0.810 in H2O (201.8 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.9dB(A) | 2 W | 7200 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.038 lb (17.24 g) |
|

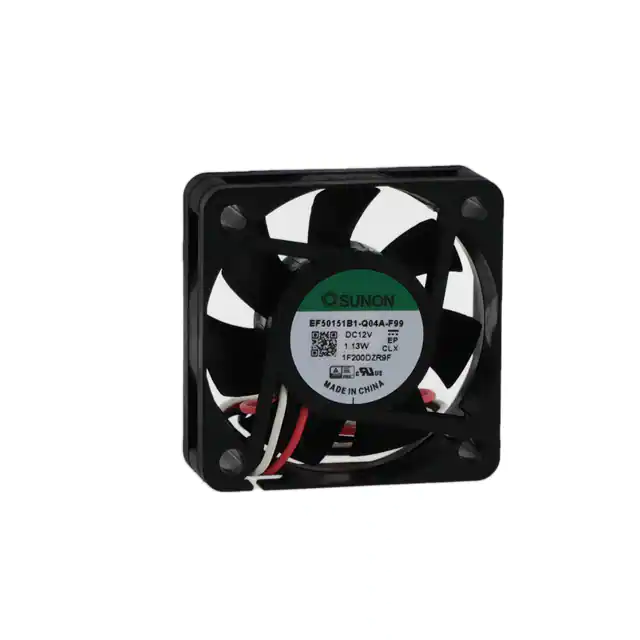

4510HQ/EF50151B1-Q04A-F99FAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
4,021 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.9 CFM (0.333m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.8dB(A) | 940 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 0.075 lb (34.02 g) |
|
|
4890HQ-EFK6B51B1-1C01U-G99DC BLOWER, 193.6X206X115MM, 2 BA Sunon Fans |
3,302 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5152HQ/MF75090V1-C330-S9ADC BLOWER 80X87X11MM TACH/PWM Sunon Fans |
3,976 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5151HQ/MF75090V1-C331-S9ADC BLOWER 80X87X11MM TACH/PWM Sunon Fans |
100 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
