DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

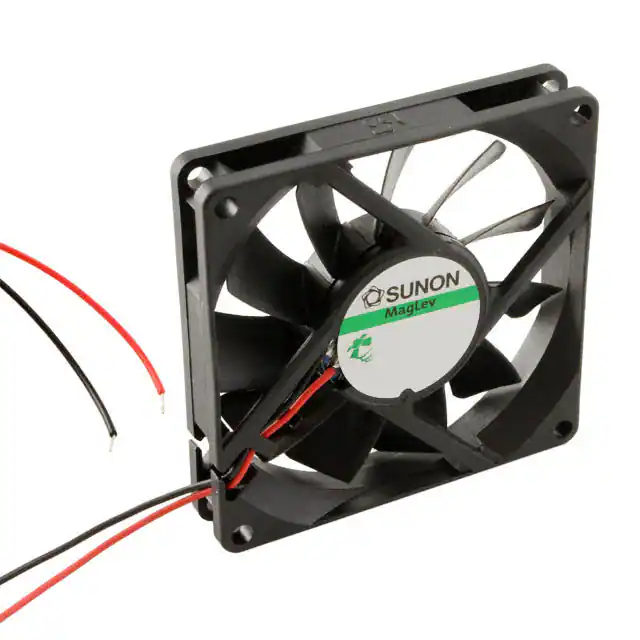

ME80151V1-000U-A99FAN AXIAL 80X15MM 12VDC WIRE Sunon Fans |
4,781 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.7dB(A) | 1.96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.15 lb (68.04 g) |
|
MF50151V1-B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE Sunon Fans |
2,747 |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 4.5 CFM (0.126m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 39.8dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.067 lb (30.39 g) |
|
EE92251B2-000U-999FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,393 |
|
Datasheet |
EE | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
EE80251BX-000U-A99FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,016 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 1.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.196 lb (88.9 g) |
|
MF50151VX-B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE Sunon Fans |
1,135 |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 42.2dB(A) | 2.04 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | 0.067 lb (30.39 g) |
|

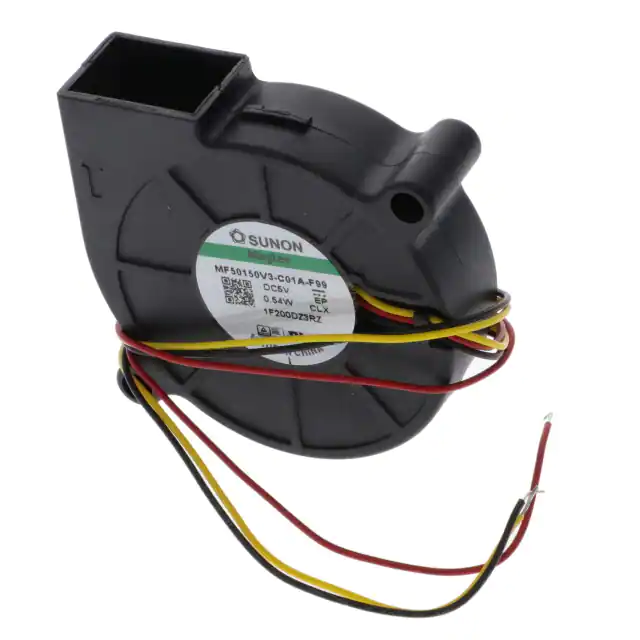

4512HQ/MF50150V3-C01A-F99FAN BLOWER 51X15MM VAPO 5VDC Sunon Fans |
318 |
|
Datasheet |
MagLev® MF | Box | Obsolete | 5VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.7 CFM (0.076m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Sensor | 25.3dB(A) | 540 mW | 3300 RPM | - | - | -4 ~ 185°F (-20 ~ 85°C) | cURus, TUV | 0.059 lb (26.76 g) |
|

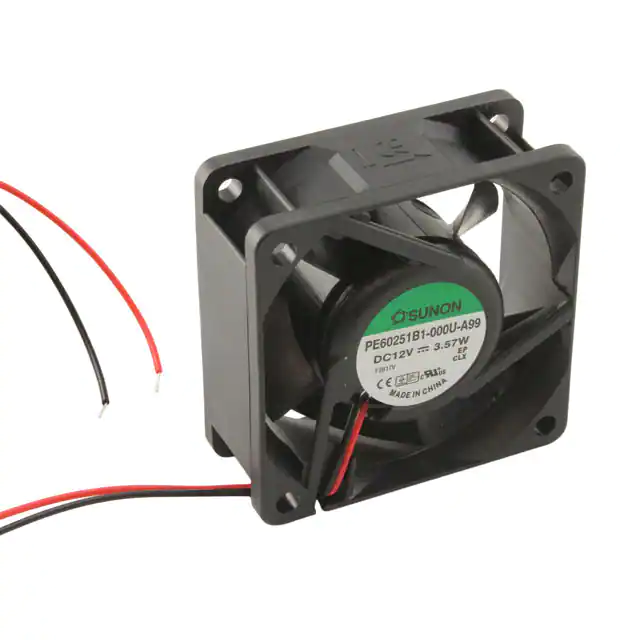

PE60251B1-000U-A99FAN AXIAL 60X25MM 12VDC WIRE Sunon Fans |
2,205 |
|
Datasheet |
PE | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.57 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|

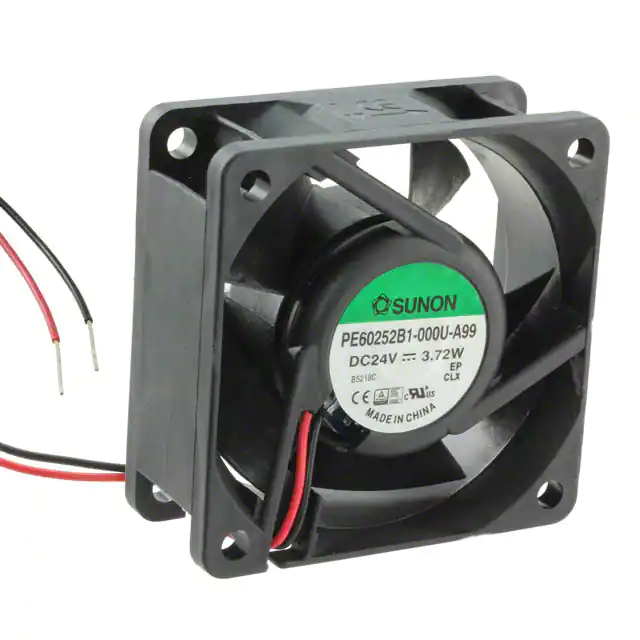

PE60252B1-000U-A99FAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
1,187 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.72 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
PF38281B2-000U-A99FAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
556 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.9 CFM (0.473m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 3.48 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.089 lb (40.37 g) |
|
PF40281B2-000U-A99FAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
255 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.0 CFM (0.504m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.7dB(A) | 2.96 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
