DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF25060V1-1000U-A99FAN AXIAL 25X6.5MM 5VDC WIRE Sunon Fans |
1,763 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.50mm | 3.0 CFM (0.084m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 24.8dB(A) | 580 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.012 lb (5.44 g) |
|
|
MF30101V2-1000U-A99FAN AXIAL 30X10MM 12VDC WIRE Sunon Fans |
4,790 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.6 CFM (0.129m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 20.0dB(A) | 390 mW | 8600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80252V1-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
2,943 |
|
Datasheet |
MagLev® PF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.7dB(A) | 4.32 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF40281BX-1000U-S9HFAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
4,386 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 11.4 W | 22000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
MF50151V1-1000U-G99FAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
4,295 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 870 mW | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
|
|
EF60252S1-1000U-A99FAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
1,437 |
|
Datasheet |
EF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 27.0dB(A) | 1.2 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
|

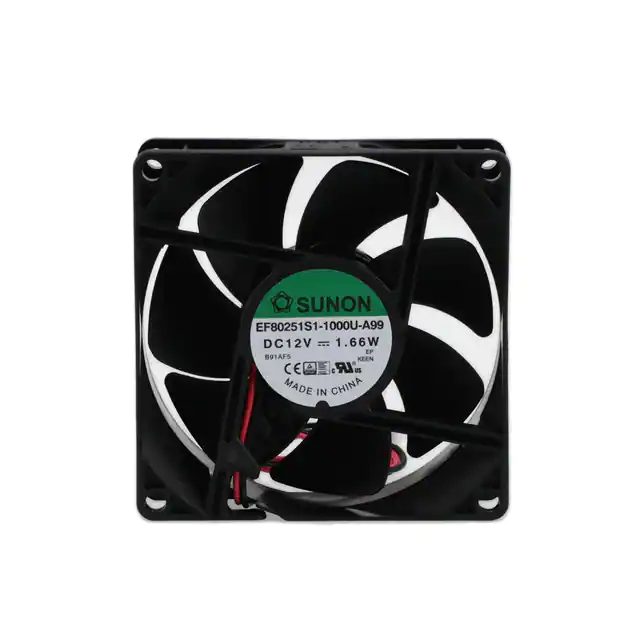

4149/EF80251S1-1000U-A99FAN AXIAL 80X25MM 12VDC Sunon Fans |
1,208 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.44 W | 3200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
MF60101V1-1000U-G99FAN AXIAL 60X10MM 12VDC WIRE Sunon Fans |
4,731 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB(A) | 1.3 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.051 lb (23.13 g) |
|
|
4550HQ/EG50060S1-C391-S9AFAN BLOWER 81.8X17.2MM 5VDC RECT Sunon Fans |
4,748 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 81.8mm L x 81.3mm H | 17.20mm | 6.3 CFM (0.176m³/min) | 0.820 in H2O (204.3 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.2dB(A) | 1.9 W | 3700 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, CUR, TUV, UL | 0.101 lb (45.81 g) |
|
|
4132/MF30100V1-1000U-A99FAN AXIAL 30X10MM VAPO 5VDC Sunon Fans |
4,199 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 600 mW | 11000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.018 lb (8.16 g) |
