DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

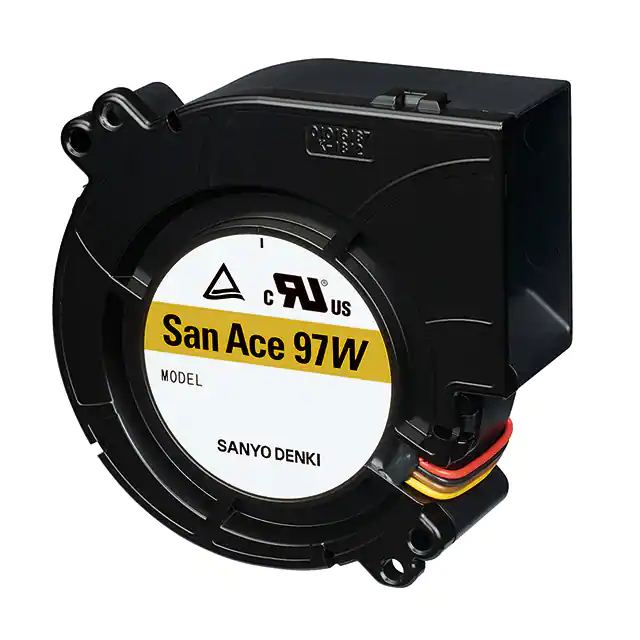

9W1BM12P2H001FAN BLOWER 97.1X33MM 12VDC WIRE Sanyo Denki America Inc. |
3,117 |
|
Datasheet |
San Ace 97W | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 38.6 CFM (1.08m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 15.6 W | 4800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.529 lb (240.00 g) |
|
9TG24P0G01FAN IMP MTRZD 175X69MM 24VDC Sanyo Denki America Inc. |
284 |
|
Datasheet |
San Ace C175 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 494.7 CFM (13.85m³/min) | 3.550 in H2O (885.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 93.6 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (771.1 g) |
|
9W2TM24P4H001FAN IMP MTRZD 100X25MM 24VDC Sanyo Denki America Inc. |
114 |
|
Datasheet |
San Ace 100W | Box | Active | 24VDC | Round - 100mm Dia | 25.00mm | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
109E5724H502FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
114 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 13.92 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
109E1724H502FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
2,883 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 13.92 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

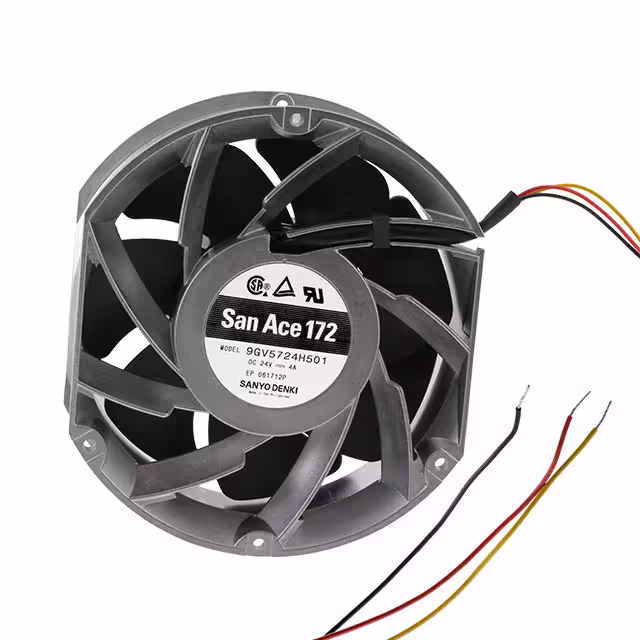

9GV5724H501FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
2,739 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 74.0dB(A) | 96 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|

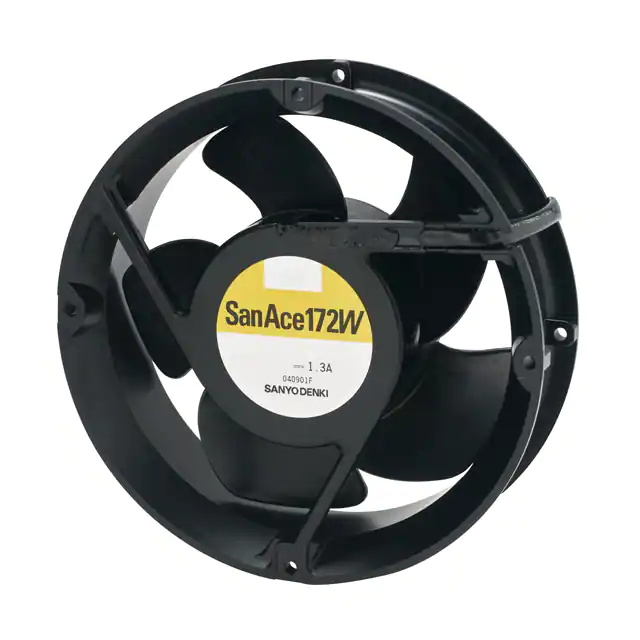

9WE1724K501FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
4,566 |
|
Datasheet |
San Ace 172W | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 300.1 CFM (8.40m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.9 lbs (900.0 g) |
|
9A0912S402FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
380 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.24 W | 3550 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109R0805F401FAN AXIAL 80X25MM BALL 5VDC WIRE Sanyo Denki America Inc. |
139 |
|
Datasheet |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.25 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109P0512A702FAN AXIAL 52X15MM 12VDC WIRE Sanyo Denki America Inc. |
919 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 2.52 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
