DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WPA0424P6G001FAN AXIAL 40X20MM 24VDC WIRE Sanyo Denki America Inc. |
2,704 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.4 CFM (0.375m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 2 W | 13700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
9GA0948P1H03FAN AXIAL 92X38MM 48VDC WIRE Sanyo Denki America Inc. |
379 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 26.4 W | 9700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9GA1212G40011FAN AXIAL 120X25.4MM 12VDC WIRE Sanyo Denki America Inc. |
3,005 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.16 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|

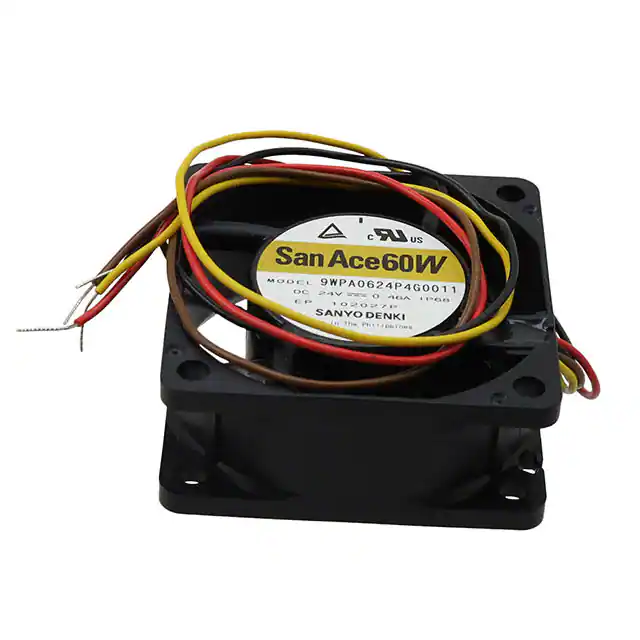

9WPA0624P4G0011FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
119 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 11.04 W | 12000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9CRA0612P0G001FAN AXIAL DUAL 60X76MM 12VDC Sanyo Denki America Inc. |
301 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 70.6 CFM (1.98m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 27.6 W | 16500 Front, 13000 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.604 lb (273.97 g) |
|

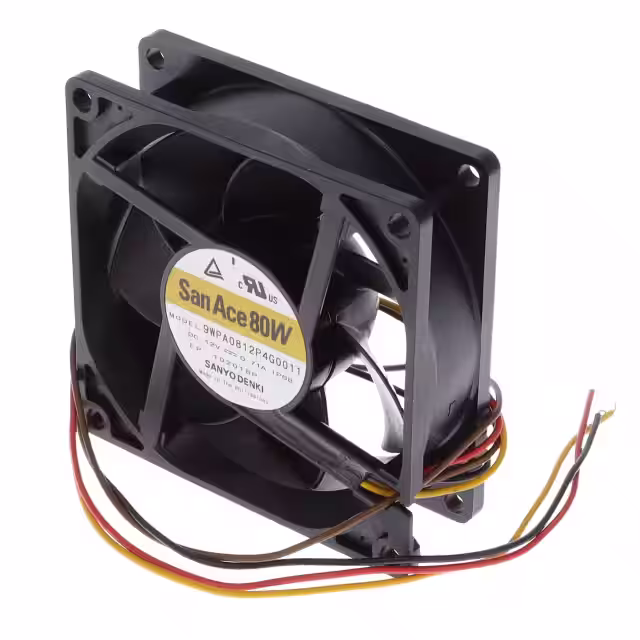

9WPA0812P4G0011FAN AXIAL 80X25.2MM 12VDC WIRE Sanyo Denki America Inc. |
110 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0824P4G001FAN AXIAL 80X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
106 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

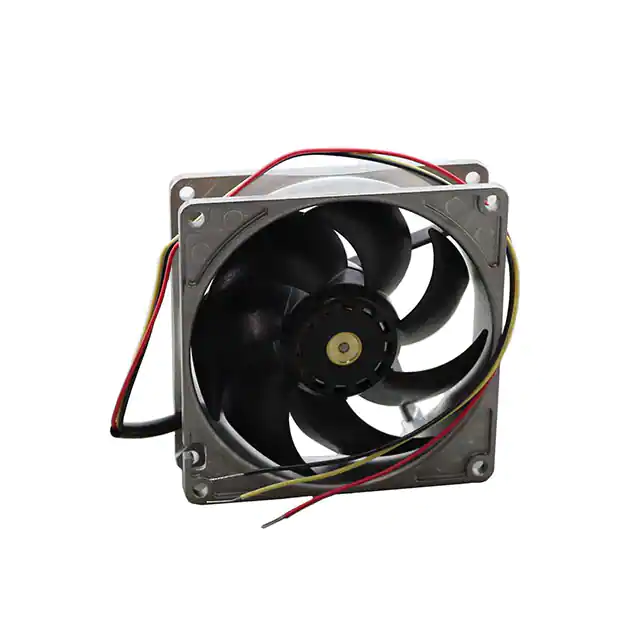

9LG0912H4001FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,249 |
|
Datasheet |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
9HV0812P1G001FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
250 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|

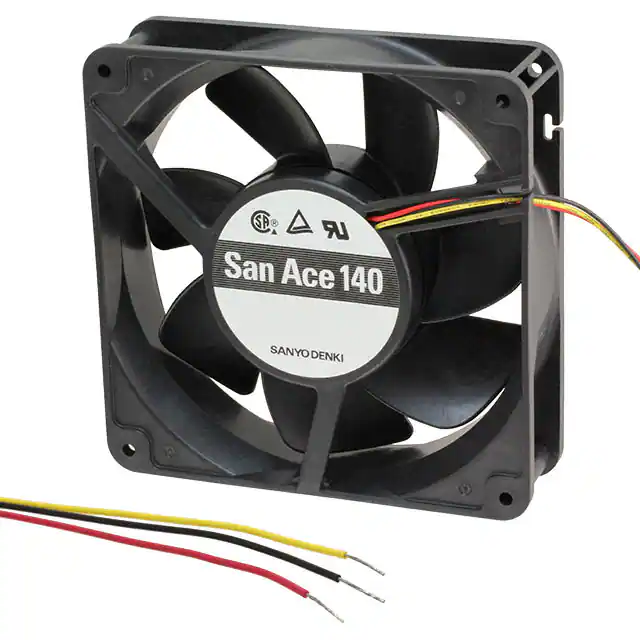

109P1412H101FAN AXIAL 140X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,626 |
|
Datasheet |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 159.0 CFM (4.45m³/min) | 0.378 in H2O (94.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.76 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
