DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0624G4021FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
115 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.12 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109P0424D6D01FAN AXIAL 40X20MM 24VDC WIRE Sanyo Denki America Inc. |
173 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 3.12 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
9S0924M4011FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
179 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.68 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

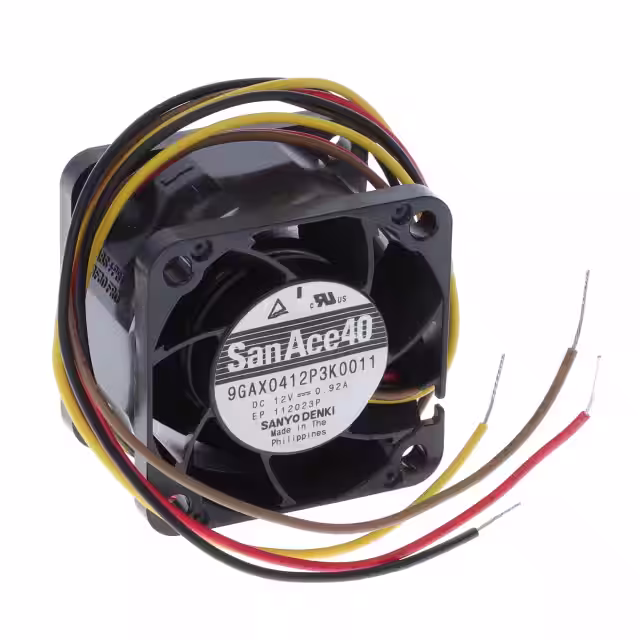

9GAX0412P3K0011FAN AXIAL 40X28MM 12VDC WIRE Sanyo Denki America Inc. |
374 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|

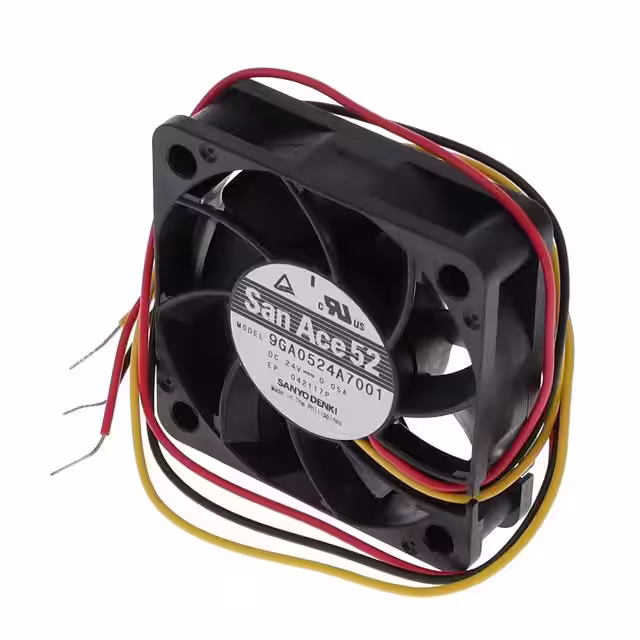

9GA0524A7001FAN AXIAL 52X15MM 24VDC WIRE Sanyo Denki America Inc. |
261 |
|
Datasheet |
San Ace 52 | Bulk | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 1.2 W | - | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
9G1212H1011FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,817 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
109P0412H702FAN AXIAL 40X15MM 12VDC WIRE Sanyo Denki America Inc. |
180 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.56 W | 7700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
109P0412S702FAN AXIAL 40X15MM 12VDC WIRE Sanyo Denki America Inc. |
126 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.1 CFM (0.199m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.16 W | 8600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
|
9A0624S4021FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
880 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
9GV3612J301FAN AXIAL 36X28MM 12VDC WIRE Sanyo Denki America Inc. |
2,073 |
|
Datasheet |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 19.4 CFM (0.543m³/min) | 2.108 in H2O (525.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.5dB(A) | 9 W | 19000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.102 lb (46.27 g) |
