DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

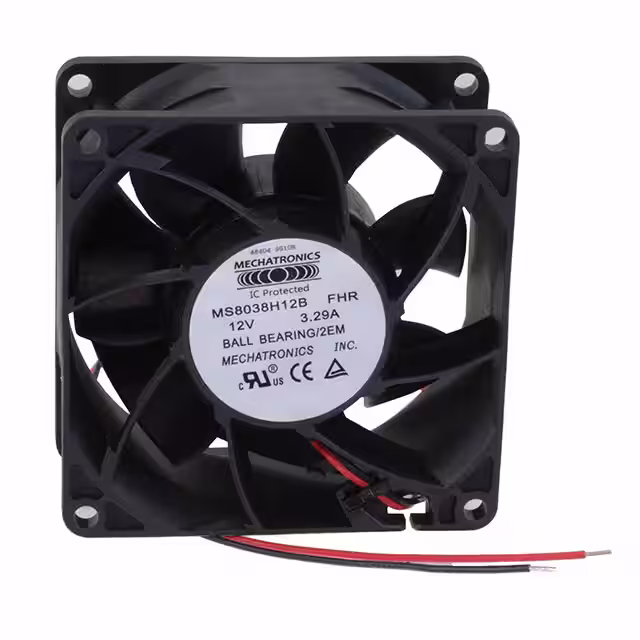

MS8038H12B-FHR-2EMFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
402 |
|
Datasheet |
MS8038-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB(A) | - | 9000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.391 lb (177.35 g) |
|
MD9238H48B-FSRFAN AXIAL 92X38MM 48VDC WIRE Mechatronics Fan Group |
209 |
|
Datasheet |
MD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.7 CFM (2.82m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.5dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|

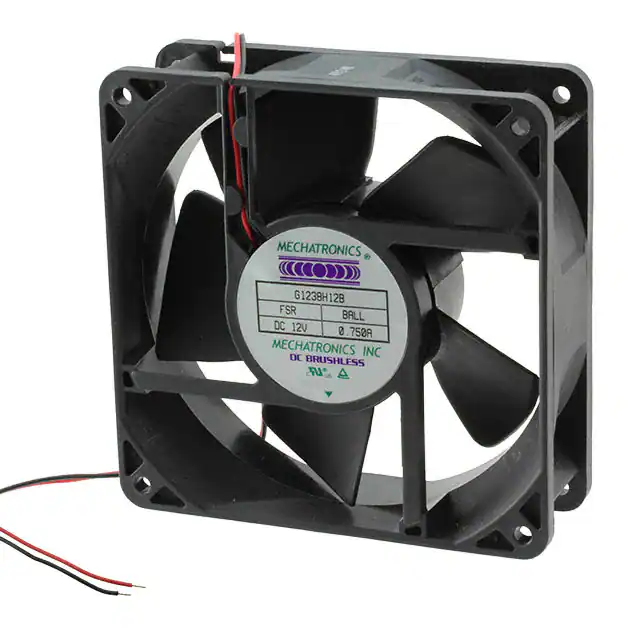

G1238H12B-FSRFAN AXIAL 119X38MM 12VDC WIRE Mechatronics Fan Group |
422 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

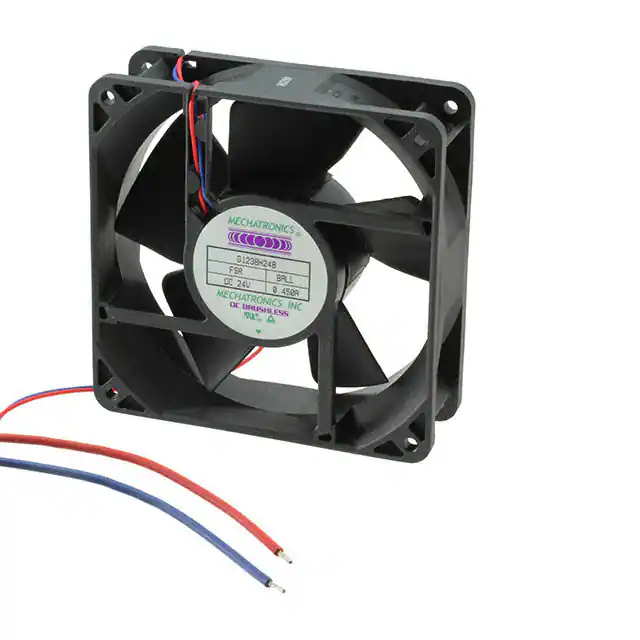

G1238H24B-FSRFAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
181 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
MR9238E12B-FSRFAN AXIAL 92X38MM 12VDC WIRE Mechatronics Fan Group |
172 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart | 63.3dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238E24B-FSRFAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
575 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart | 63.3dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
MQ6038E24B-FSRFAN AXIAL 60X38MM 24VDC WIRE Mechatronics Fan Group |
152 |
|
Datasheet |
MQ6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 69.2 CFM (1.94m³/min) | 2.111 in H2O (525.8 Pa) | Ball | Tubeaxial | - | 64.0dB(A) | - | 11000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.234 lb (106.14 g) |
|

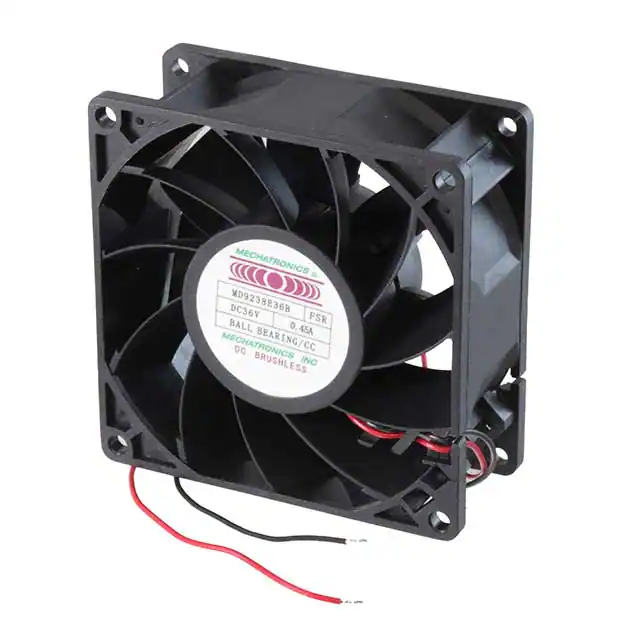

MD9238E36B-FSR-CCFAN AXIAL 92X38MM 36VDC WIRE Mechatronics Fan Group |
140 |
|
Datasheet |
MD9238 | Bulk | Active | 36VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
MXB9733H24B-BSRFAN BLOWER 97X33MM 24VDC WIRE Mechatronics Fan Group |
131 |
|
Datasheet |
MXB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 33.00mm | 28.5 CFM (0.798m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 55.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|

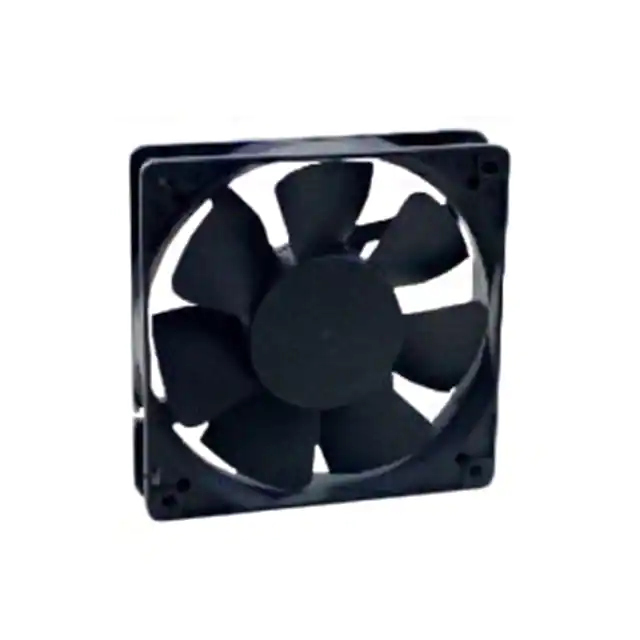

MR1225E24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE Mechatronics Fan Group |
793 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.6dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
