DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS1751H24B-FHR-2EMFAN AXIAL 171X51.5MM 24VDC WIRE Mechatronics Fan Group |
119 |
|
Datasheet |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart | 71.0dB(A) | - | 5500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|

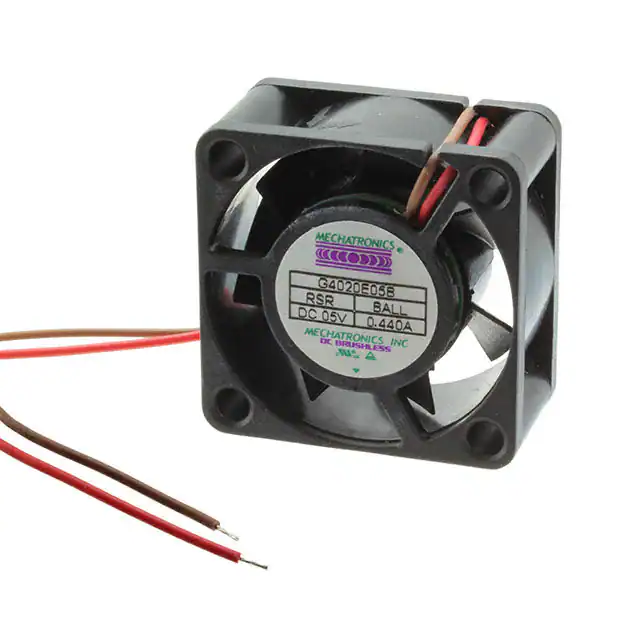

G4020E05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE Mechatronics Fan Group |
1,146 |
|
Datasheet |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MR4020M24B-RSRFAN AXIAL 40X20MM 24VDC WIRE Mechatronics Fan Group |
312 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.8dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|

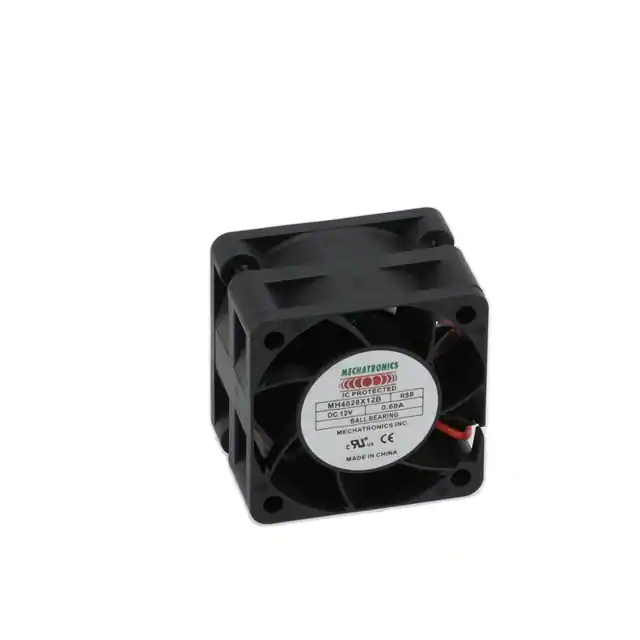

MH4028X12B-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
112 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.2 CFM (0.706m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 63.0dB(A) | - | 16500 RPM | 2 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|

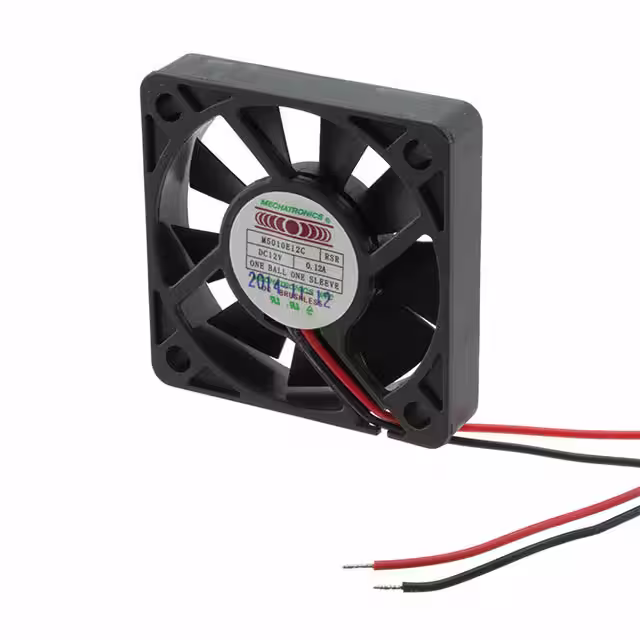

M5010E12C-RSRFAN AXIAL 50X10MM 12VDC WIRE Mechatronics Fan Group |
785 |
|
Datasheet |
M5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.140 in H2O (34.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.046 lb (20.87 g) |
|
G4020E12B-RSRFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
591 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|

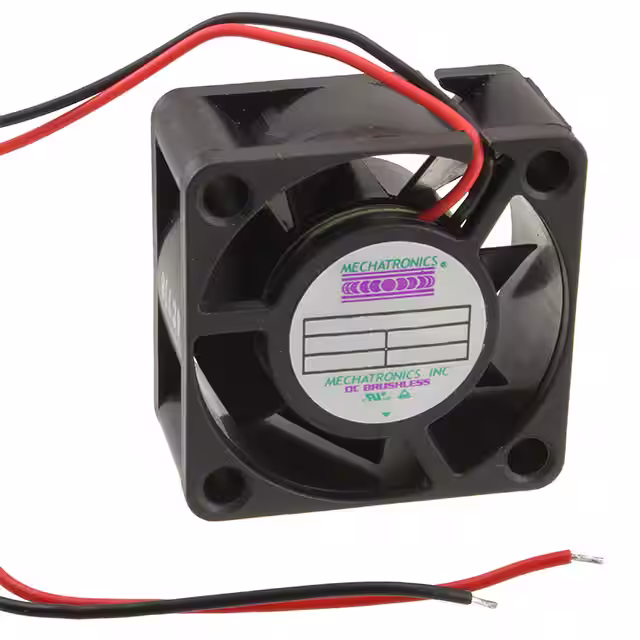

G4020M12B-RSRFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
282 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MR3010L05B-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE Mechatronics Fan Group |
1,013 |
|
Datasheet |
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 20.5dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M05B-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE Mechatronics Fan Group |
848 |
|
Datasheet |
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.2dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M12B-RSRFAN AXIAL 30X10MM 12VDC WIRE Mechatronics Fan Group |
610 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.2dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
