DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4015X12B-RSRFAN AXIAL 40X15MM 12VDC WIRE Mechatronics Fan Group |
121 |
|
Datasheet |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 12000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|

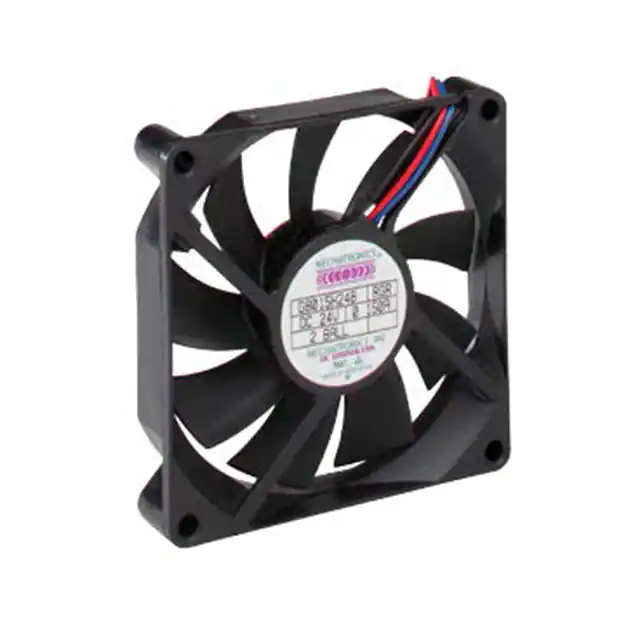

G8015H24B-RGRFAN AXIAL 80X15.3MM 24VDC WIRE Mechatronics Fan Group |
200 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.30mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
E1225E12B-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
786 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
MD4028V12B-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
785 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|

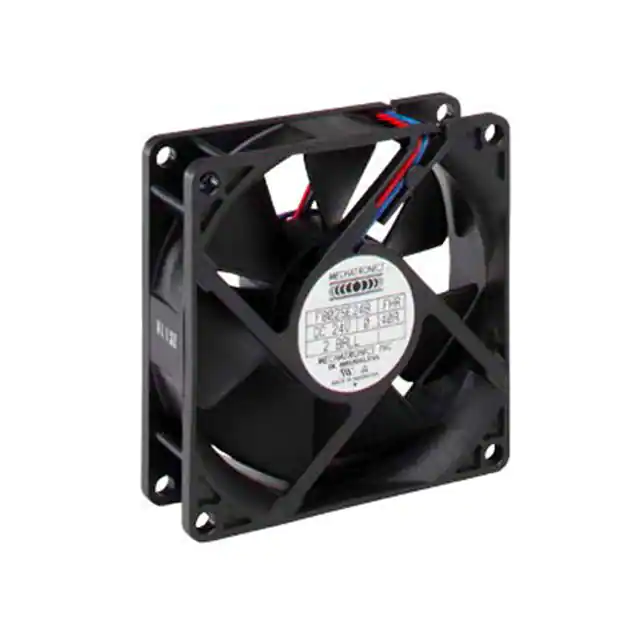

F8025X12B1-FHRFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
556 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|

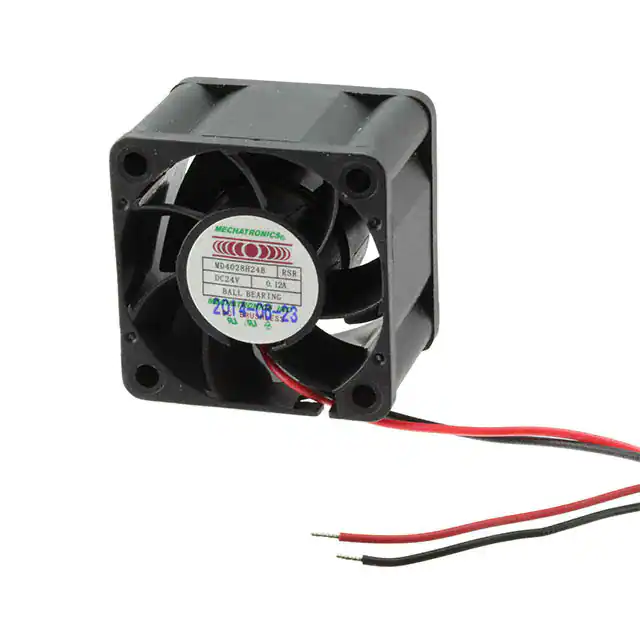

MD4028H24B-RSRFAN AXIAL 40X28MM 24VDC WIRE Mechatronics Fan Group |
484 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.6 CFM (0.381m³/min) | 0.533 in H2O (132.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB(A) | - | 9200 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|

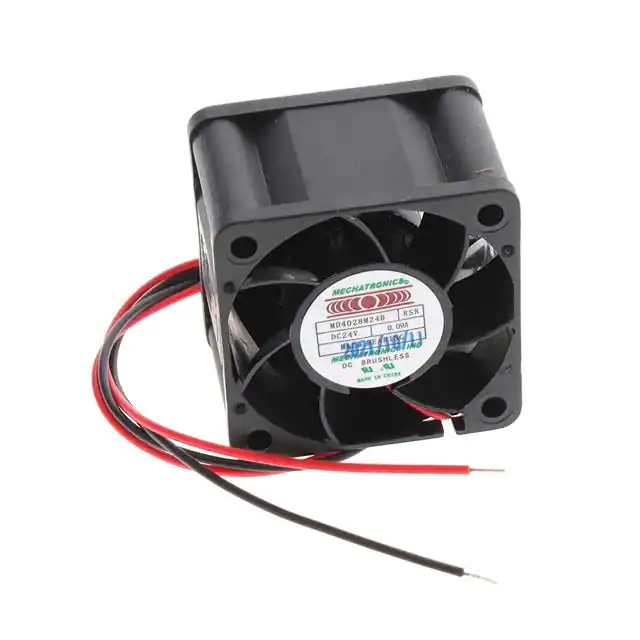

MD4028M24B-RSRFAN AXIAL 40X28MM 24VDC WIRE Mechatronics Fan Group |
143 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 11.8 CFM (0.330m³/min) | 0.403 in H2O (100.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.2dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
E9225X12B-FSRFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
549 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|

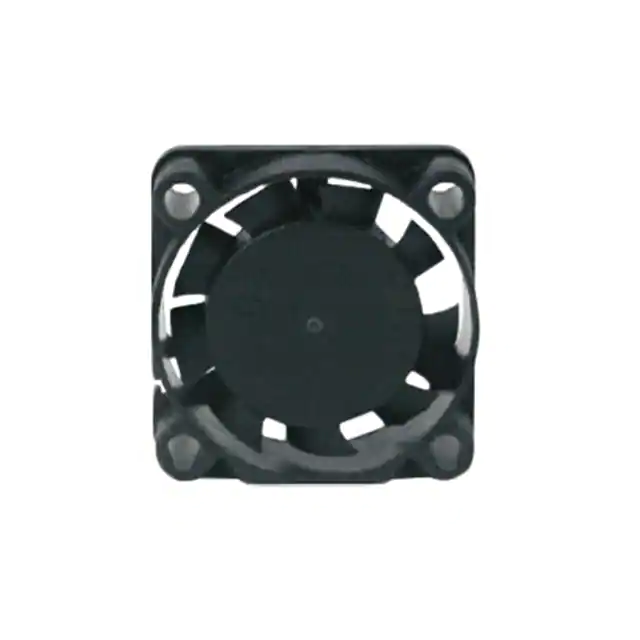

MS2507E05D-RSRFAN AXIAL 25X7.4MM SLEEVE 5VDC Mechatronics Fan Group |
205 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 7.40mm | 2.8 CFM (0.078m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | - | 17000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
|
MR3010L12B-RSRFAN AXIAL 30X10MM 12VDC WIRE Mechatronics Fan Group |
240 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 20.5dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
