Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2800985SPD 10VAC/15VDC MCOV 1 POLE |
7,705 |
|
Datasheet |
PT | Bulk | Obsolete | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 1.3 kV | -40°C ~ 70°C | - | DIN Rail | UL |
|
|
2801274SPD 37VAC/53VDC MCOV 1 POLE |
2,660 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 37VAC, 53VDC | 10 kA | 20 kA | - | - | 950 V | -40°C ~ 70°C | - | DIN Rail | UL |
|

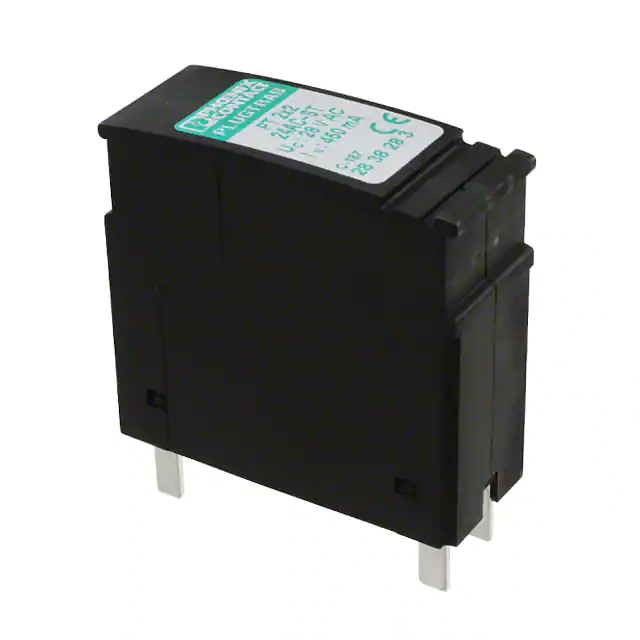

2838283SPD 28VAC/40VDC MCOV 1 POLE |
4,184 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 28VAC, 40VDC | 10 kA | 20 kA | - | - | 1 kV | -40°C ~ 85°C | - | Base Mount | cUL, EAC, UL |
|
2838241SPD 4VAC/6VDC MCOV 1 POLE |
2,941 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 4VAC, 6VDC | 10 kA | 10 kA | - | - | - | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
|

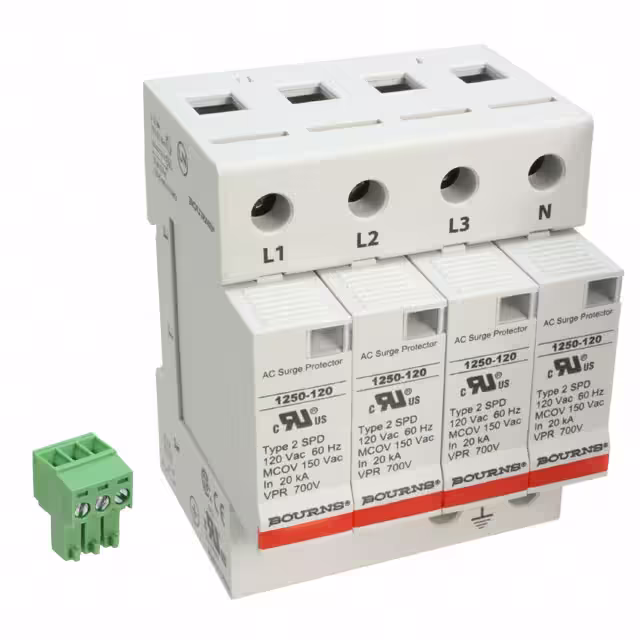

1250-4S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
8,152 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 4 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|

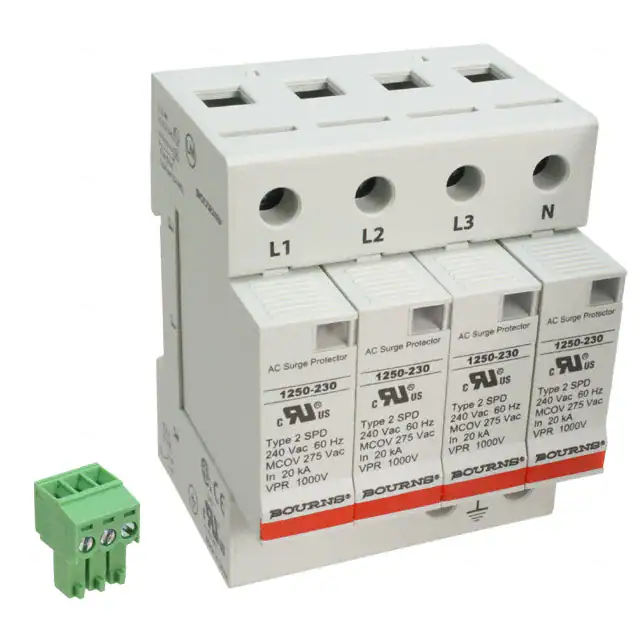

1250-4S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
5,940 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 4 | 275VAC | 20 kA | 50 kA | 100 kA | 1 kV | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|

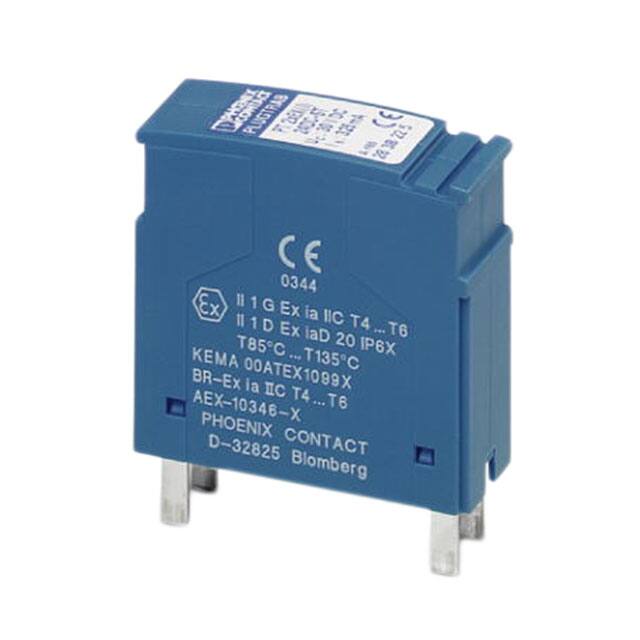

2838225SPD 21VAC/30VDC MCOV 1 POLE |
3,243 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | 10 kA | 20 kA | - | - | 1 kV | -40°C ~ 80°C | - | Base Mount | EAC, UL |
|
2025030000SPD TYPE 1 180VAC MCOV 1 POLE |
4,397 |
|
- |
VPU | Box | Obsolete | Type 1 | Base + Module | 1 | 180VAC | 20 kA | 40 kA | 25 kA | - | - | -40°C ~ 70°C | - | Chassis Mount | CE, cURus |
|
|
SPD2-PV550-MSPD TYP 1/TYP 2 1.1KV MCOV 1POLE |
2,255 |
|
- |
SPD2 PV | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.1kV | 20 kA | 40 kA | 50 kA | 3 kV | 4.2 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
BSPD5DINLHFSPD 4.2VAC/6VDC MCOV 4 POLE |
4,085 |
|
Datasheet |
BSPD | Bulk | Active | - | Base + Module | 4 | 4.2VAC, 6VDC | 10 kA | 20 kA | - | - | - | -40°C ~ 80°C | - | DIN Rail | ATEX, CE, CSAus, UL |
|
|
1260-4SMG-127SPD 180VAC MCOV 4 POLE |
3,661 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 4 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4SMG-277SPD 350VAC MCOV 4 POLE |
4,049 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 4 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2730500000SPD TYPE 2 150VAC MCOV 4 POLE |
7,265 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 4 | 150VAC | 20 kA | 50 kA | 200 kA | 600 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|

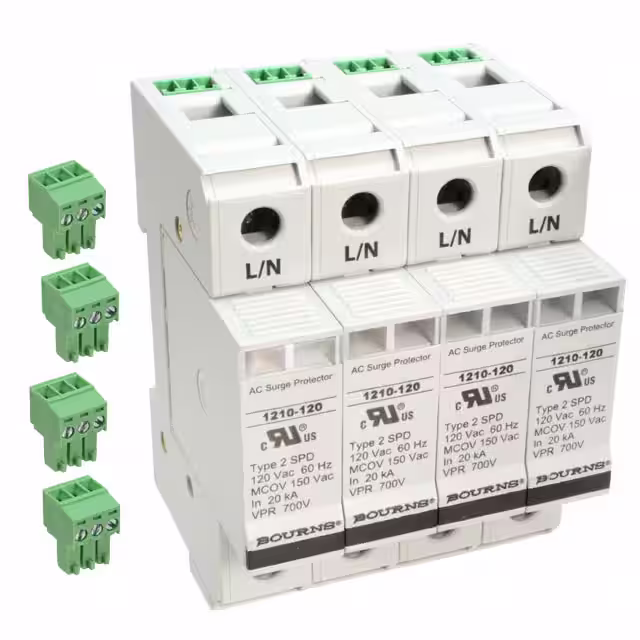

1210-4S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
6,176 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 4 | 150VAC | 20 kA | 100 kA | 100 kA | 600 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
1210-4S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
7,085 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 4 | 275VAC | 20 kA | 100 kA | 100 kA | 900 V | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|

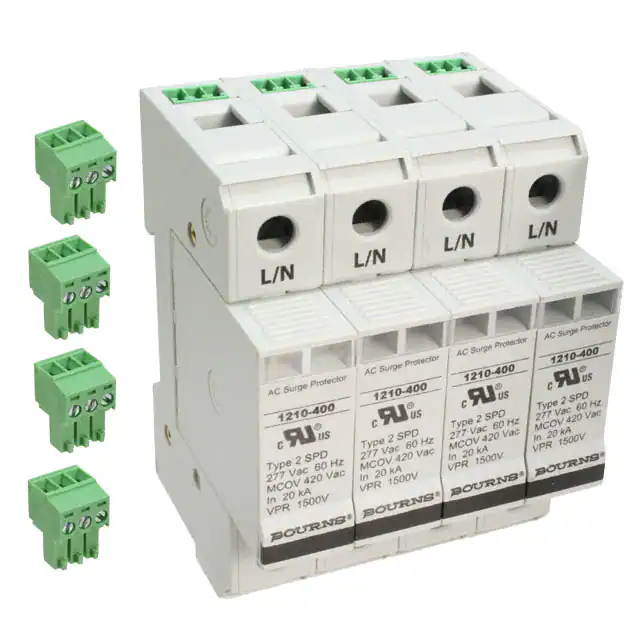

1210-4S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
6,897 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 4 | 420VAC | 20 kA | 100 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
|
2801532SPD TYP1/TYP2 75VAC/100VDC MCOV |
3,231 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75VAC, 100VDC | 12.5 kA | 30 kA | 25 kA | 600 V | 800 V | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR, VDE |
|
|
1260-4NSMG-127SPD 180VAC MCOV 4 POLE |
9,464 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 4 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4NSMG-277SPD 350VAC MCOV 4 POLE |
3,628 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 4 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
SSP057POESE10IGSPD 48VDC MCOV 1 POLE |
3,751 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 48VDC | 10 kA | - | - | - | - | - | - | Chassis Mount | - |
