Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.15155.0060104SWITCH TOGGLE |
4,852 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M2T12S4A5A40SWITCH TOGGLE SPDT 6A 125V |
1,927 |
|
- |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 7.62mm | - | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
34ASP18T7M2GTSWITCH TOGGLE SPDT 5A 125V |
2,083 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
CF-TB-1AS3-155SWITCH TOGGLE SPST 15A 125V |
3,631 |
|
Datasheet |
CF-TB | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.30mm Dia | M12 x 1 | - | - | -10°C ~ 65°C |
|
|
CF-TB-1AS3-155-ASWITCH TOGGLE SPST 15A 125V |
2,909 |
|
Datasheet |
CF-TB | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.30mm Dia | M12 x 1 | - | - | -10°C ~ 65°C |
|
|
CF-TB-1AS3-155CSWITCH TOGGLE SPST 15A 125V |
2,650 |
|
Datasheet |
CF-TB | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.30mm Dia | M12 x 1 | - | - | -10°C ~ 65°C |
|
|
CF-TB-1AS3-155C-ASWITCH TOGGLE SPST 15A 125V |
3,526 |
|
Datasheet |
CF-TB | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.30mm Dia | M12 x 1 | - | - | -10°C ~ 65°C |
|
|
STE115D10-ZSWITCH TOGGLE SPDT 15A 125V |
4,681 |
|
- |
STE | Bulk | Obsolete | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | Dust Proof | - | -15°C ~ 70°C |
|
|
54110-01SWITCH TOGGLE SPDT 25A 12V |
3,827 |
|
Datasheet |
54100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 25A (DC) | - | 12 V | Flatted | 17.46mm | Illuminated | Incandescent, Red/White | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
551806-BXSWITCH TOGGLE DPDT 20A 12V |
4,092 |
|
- |
551800 | Box | Obsolete | Panel Mount | DPDT | On-Off-On | 20A (DC) | - | 12 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
551849-BXSWITCH TOGGLE SPDT 30A 12V |
3,979 |
|
- |
551800 | Box | Obsolete | Panel Mount | SPDT | On-On-Off | 30A (DC) | - | 12 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
551862-BXSWITCH TOGGLE DPDT 30A 12V |
2,618 |
|
- |
551800 | Box | Obsolete | Panel Mount | DPDT | Mom-On-Off | 30A (DC) | - | 12 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
59024-102SWITCH TOGGLE SPST-NO 25A 12V |
4,155 |
|
- |
59024 | Bulk | Obsolete | Panel Mount | SPST-NO | Off-Mom | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|

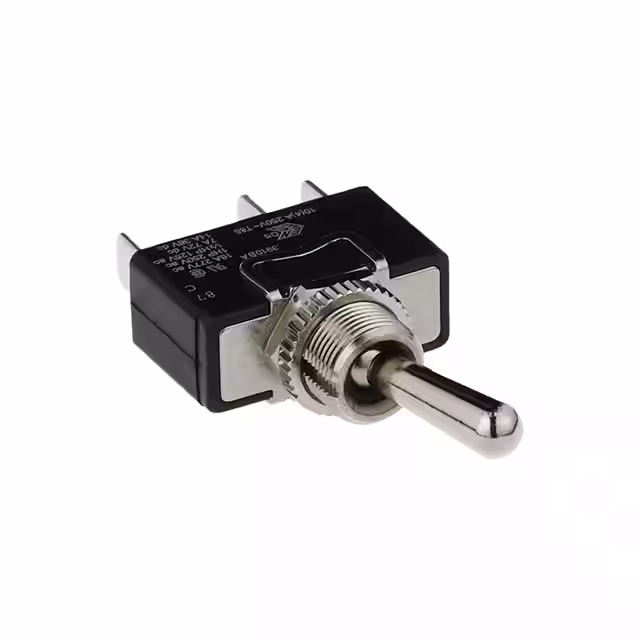

C3910BAAAASWITCH TOGGLE SPDT 20A 250V |
3,923 |
|
Datasheet |
3900 | - | Active | Panel Mount | SPDT | On-On | 20A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
111-16-68-XMTK1SWITCH TOGGLE SPST 6A 125V |
2,148 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

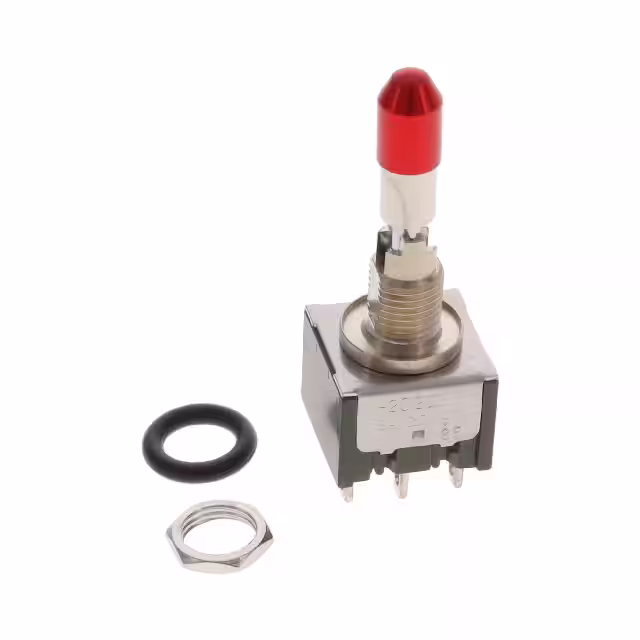

M2022LL3W01-CSWITCH TOGGLE DPDT 6A 125V |
1,974 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Red Cap | -30°C ~ 85°C |
|
|
M2012SA1W05SWITCH TOGGLE SPDT 6A 125V |
2,425 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M2011ES4W01SWITCH TOGGLE SPST 6A 125V |
1,206 |
|
- |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SD8G01SWITCH TOGGLE SPDT 0.4VA 28V |
1,753 |
|
- |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013SD8G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,147 |
|
- |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
