Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

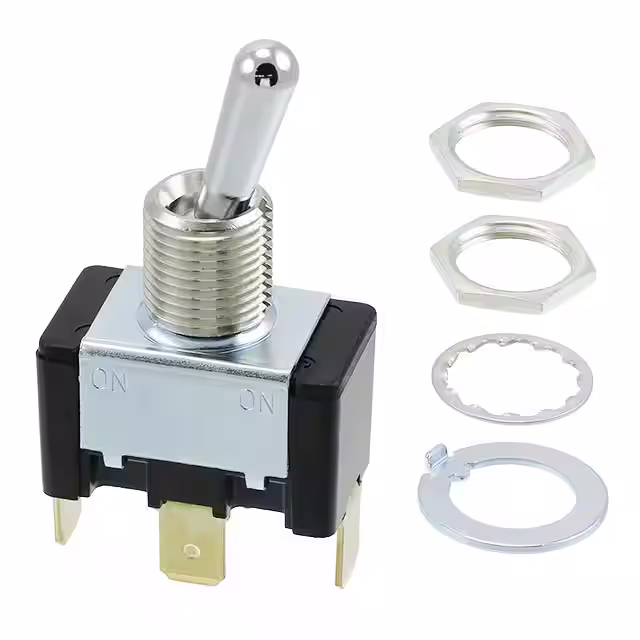

ET115E-ZSWITCH TOGGLE SPDT 15A 125V |
4,253 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET115F12-ZSWITCH TOGGLE SPDT 15A 125V |
2,981 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET210S12-ZSWITCH TOGGLE DPDT 10A 125V |
1,145 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
ET210T12-ZSWITCH TOGGLE DPDT 10A 125V |
3,785 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

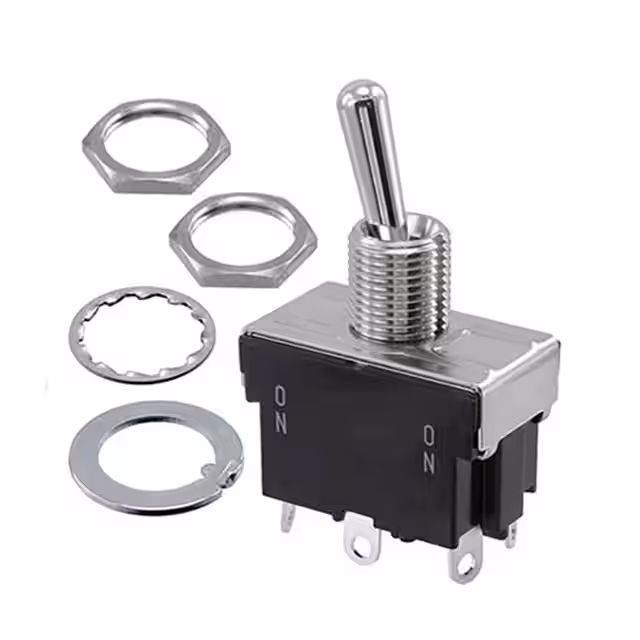

ET220P12-ZSWITCH TOGGLE DPDT 20A 125V |
2,490 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

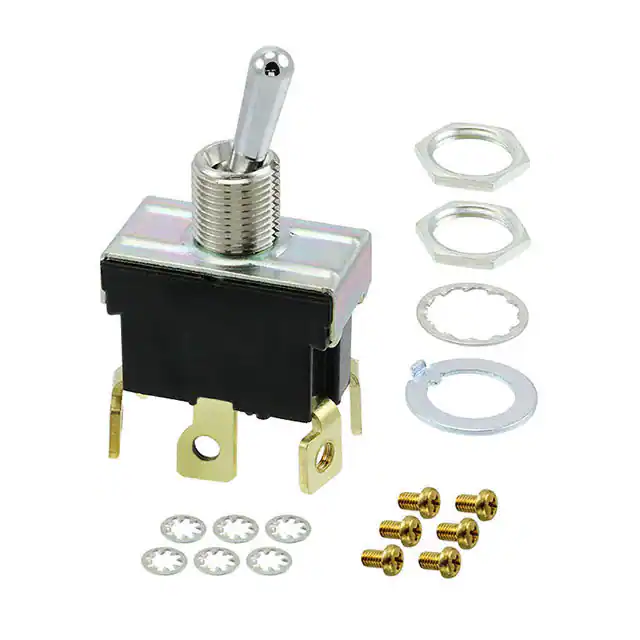

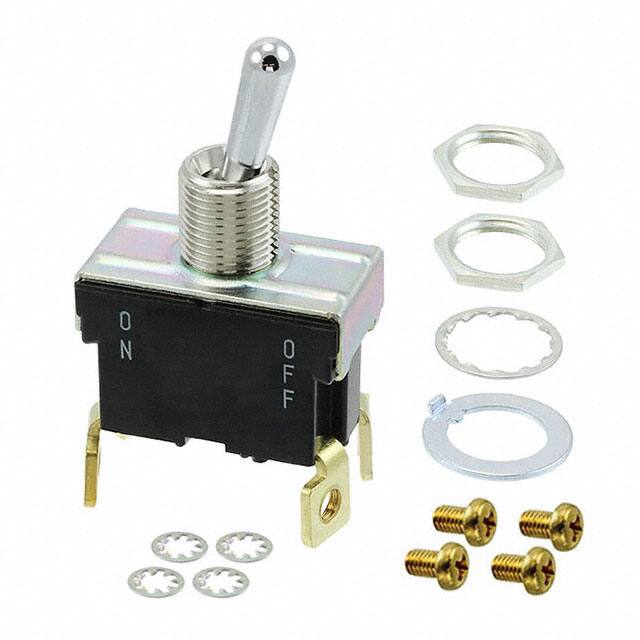

ET225K10-ZSWITCH TOGGLE DPST 25A 125V |
4,096 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPST | On-Off | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET225N10-ZSWITCH TOGGLE DPDT 25A 125V |
4,008 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET225N-ZSWITCH TOGGLE DPDT 25A 125V |
2,756 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

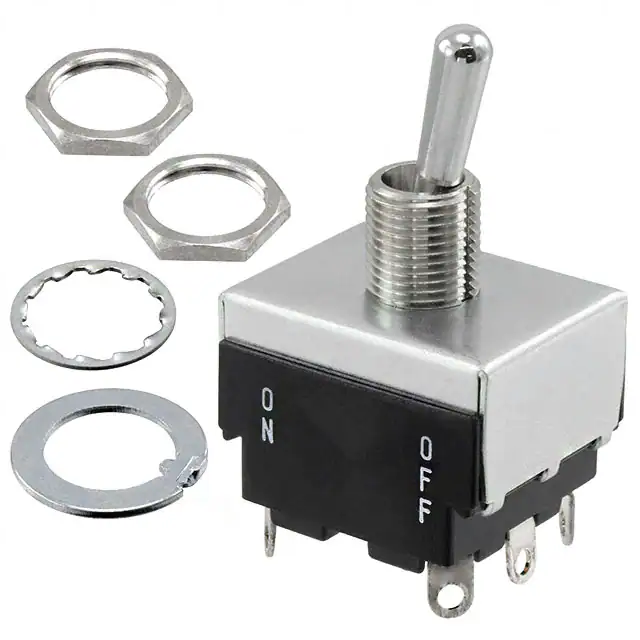

ET315A12-ZSWITCH TOGGLE 3PST 15A 125V |
4,754 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

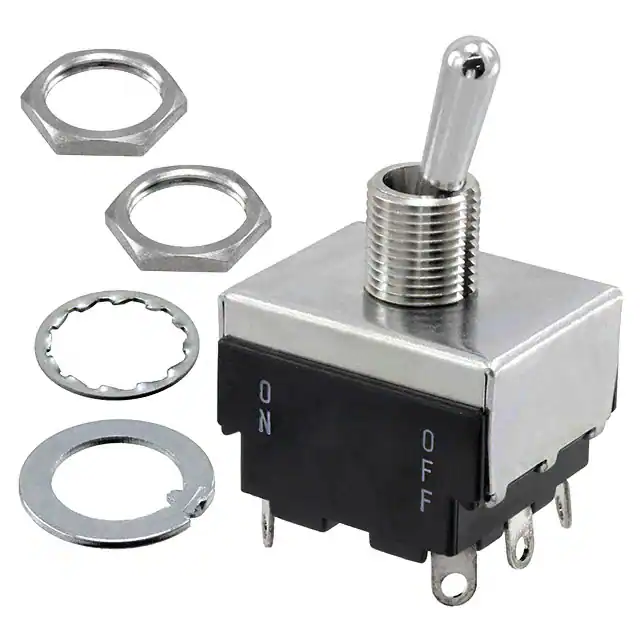

ET325A12-ZSWITCH TOGGLE 3PST 25A 125V |
2,505 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PST | On-Off | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

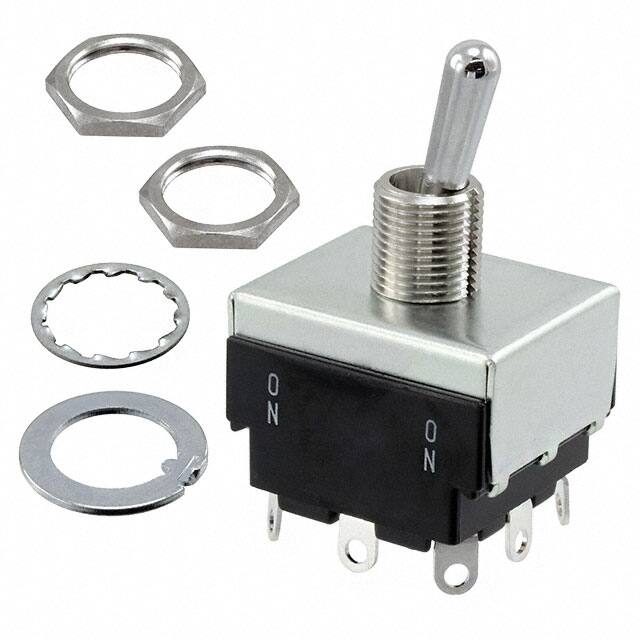

ET325D12-ZSWITCH TOGGLE 3PDT 25A 125V |
1,262 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
ET325E12-ZSWITCH TOGGLE 3PDT 25A 125V |
1,794 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET415N12-ZSWITCH TOGGLE 4PDT 15A 125V |
4,186 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET420K12-ZSWITCH TOGGLE 4PST 20A 125V |
2,550 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
STE115A10-ZSWITCH TOGGLE SPST 15A 125V |
3,192 |
|
Datasheet |
STE | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | Dust Proof | - | -15°C ~ 70°C |
|

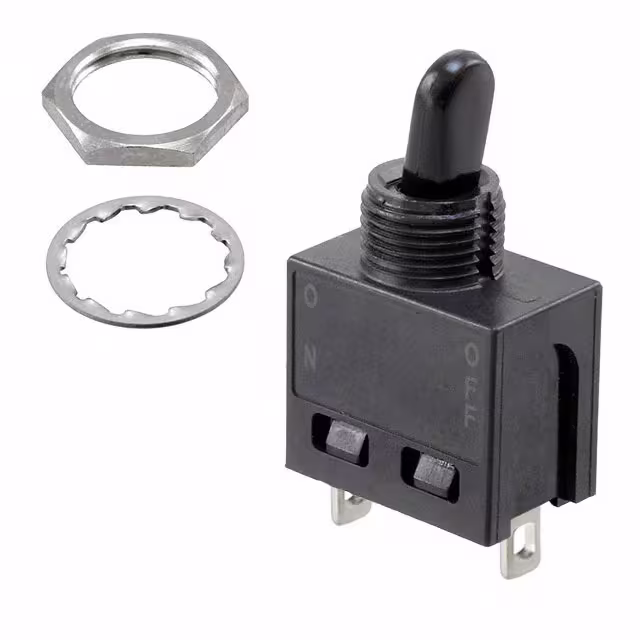

STE115A12-ZSWITCH TOGGLE SPST 15A 125V |
3,309 |
|
Datasheet |
STE | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 12.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | Dust Proof | - | -15°C ~ 70°C |
|

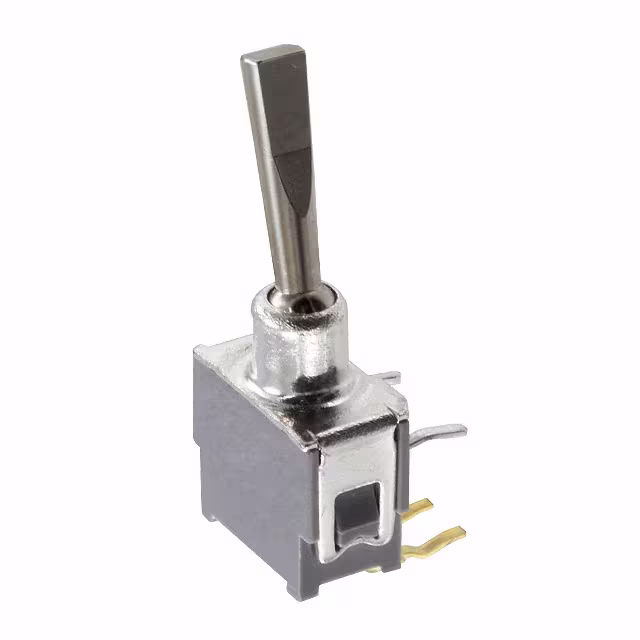

ATE1D-5F3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
1,971 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

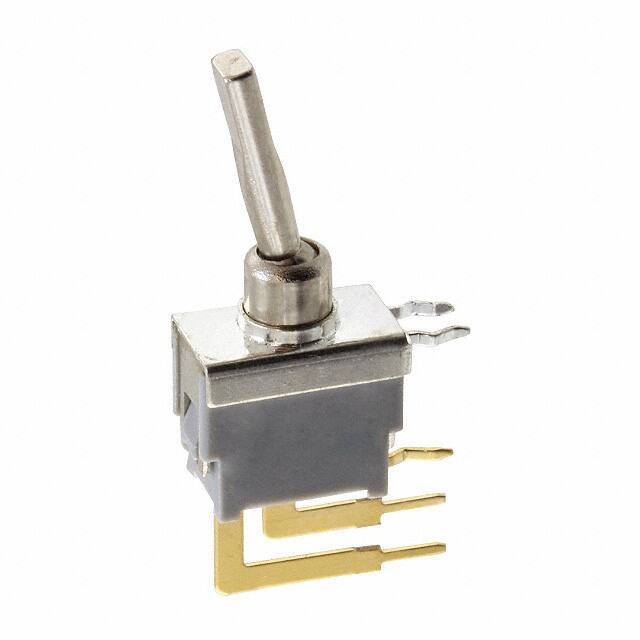

ATE1D-7F3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
2,926 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE1D-7M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
3,721 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

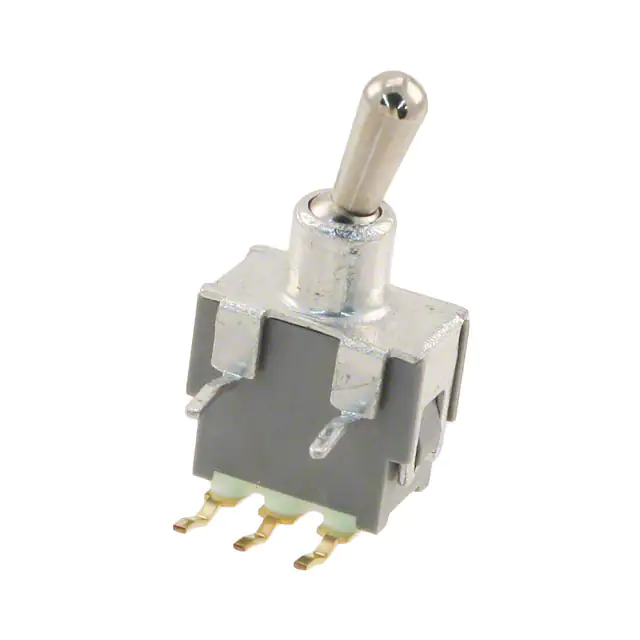

ATE1F-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
4,826 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
