Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST12T1M4ZQESWITCH TOGGLE SPDT 6A 125V |
2,105 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 11.68mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.89mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST12T2M5ZGSWITCH TOGGLE SPDT 6A 125V |
1,040 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.89mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
ST21L2HZQSWITCH TOGGLE DPDT 6A 125V |
1,887 |
|
- |
ST | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ST11T1M4CQESWITCH TOGGLE SPDT 6A 125V |
1,316 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 11.68mm | Non-Illuminated | - | - | PC Pin | Circular - 11.89mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST11T2M5ZGSWITCH TOGGLE SPDT 6A 125V |
3,917 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.89mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
ST11T1M4ZQSWITCH TOGGLE SPDT 6A 125V |
2,637 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 11.68mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.89mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
ST11T2M5ZGESWITCH TOGGLE SPDT 6A 125V |
4,437 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.89mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST12L2S2V2QESWITCH TOGGLE SPDT 6A 125V |
1,274 |
|
- |
ST | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST12L3MZQSWITCH TOGGLE SPDT 6A 125V |
4,060 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 4.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ST12KS2CQESWITCH TOGGLE SPDT 6A 125V |
3,478 |
|
- |
ST | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST12KS2V30QSWITCH TOGGLE SPDT 6A 125V |
4,210 |
|
- |
ST | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
ST12F1MZQSWITCH TOGGLE SPDT 6A 125V |
1,617 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Flatted | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ST12KMZQSWITCH TOGGLE SPDT 6A 125V |
2,454 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ST12KMV2BSWITCH TOGGLE SPDT 0.4VA 20V |
2,422 |
|
- |
ST | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ST12KHZQESWITCH TOGGLE SPDT 6A 125V |
3,748 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

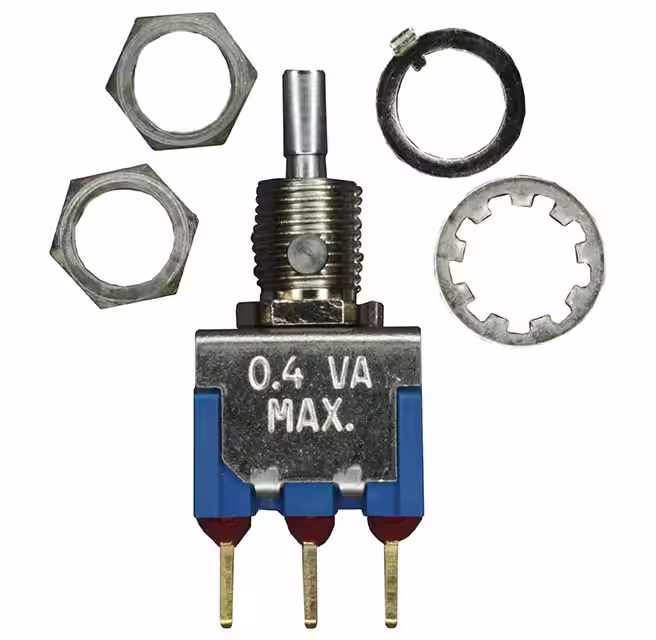

ST12F3MCBESWITCH TOGGLE SPDT 0.4VA 20V |
2,475 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST21KS2A1QSWITCH TOGGLE DPDT 6A 125V |
4,130 |
|
- |
ST | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
ST21L2HZQESWITCH TOGGLE DPDT 6A 125V |
4,228 |
|
- |
ST | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 7A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST26KMWTSWITCH TOGGLE SP3T 3A 125V |
3,748 |
|
- |
ST | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 3A (AC) | 125 V | - | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
ST26L3S3V1BSWITCH TOGGLE SP3T 0.4VA 20V |
1,057 |
|
- |
ST | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
