Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

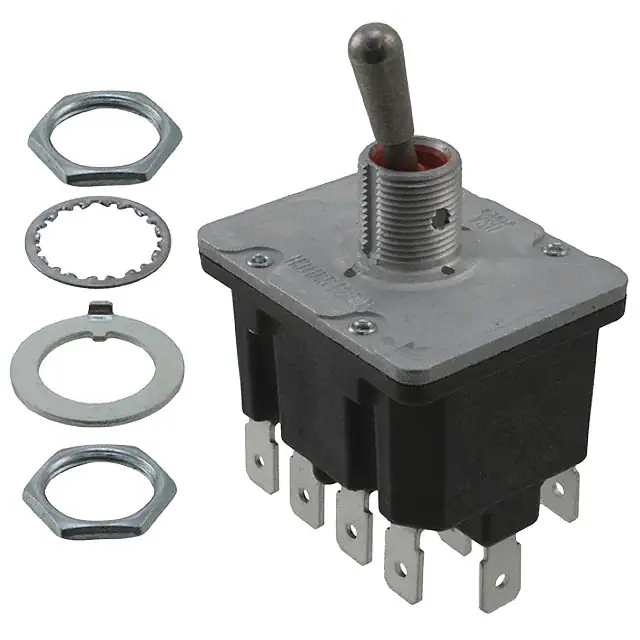

4NT91-3SWITCH TOGGLE 4PDT 15A 125V |
3,402 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

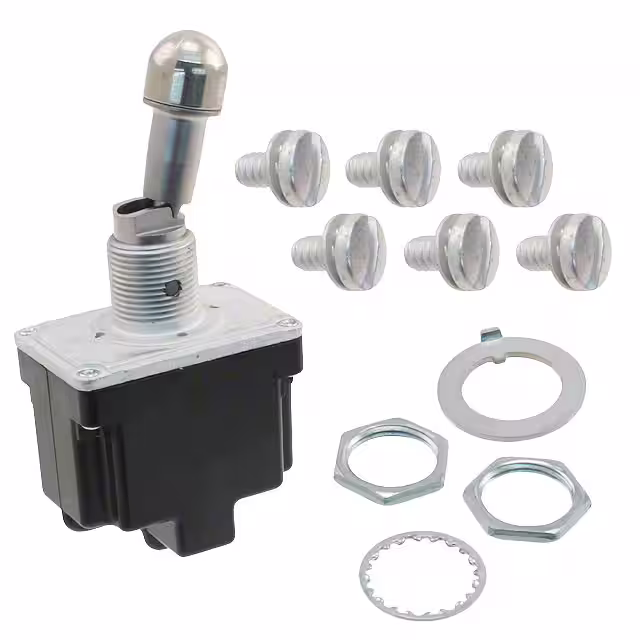

2TL1-3GSWITCH TOGGLE DPDT 15A 125V |
2,435 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1520230-2SWITCH TOGGLE DPST 20A 250V |
808 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPST | On-Off | 20A (AC) | 250 V | - | Standard Round | 20.62mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
12TW1-10SWITCH TOGGLE SP3T 5A 125V |
2,908 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
12146AD2GSWITCH TOGGLE DPDT 4A 125V |
2,171 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
AML23GBA2CA06SWITCH TOGGLE DPDT 3A 125V |
3,145 |
|
Datasheet |
AML23 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
07-2-2-13 901SWITCH TOGGLE DPDT 15A 115V |
4,264 |
|
Datasheet |
07 | Box | Active | Panel Mount | DPDT | On-On | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|
4TL1-12SWITCH TOGGLE 4PDT 15A 125V |
1,560 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

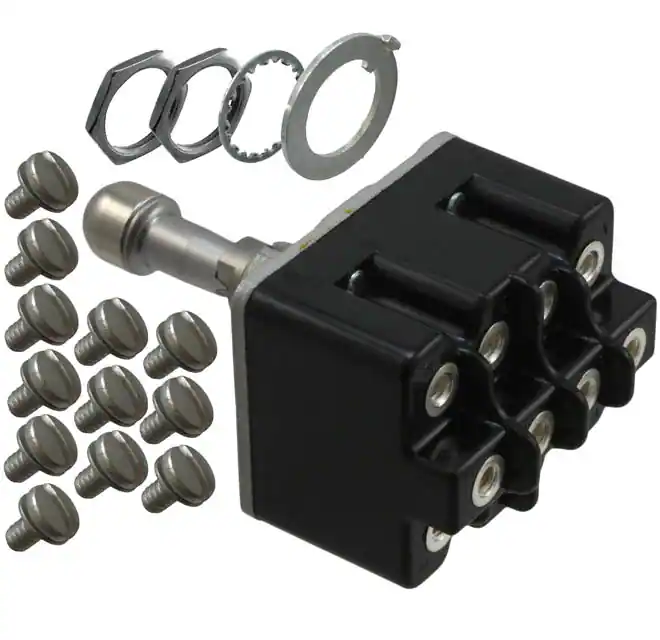

4TL1-50KSWITCH TOGGLE 4PDT 10A 125V |
1,065 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
AML25GBF2CA04RGSWITCH TOGGLE SP3T 3A 125V |
101 |
|
Datasheet |
AML25 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | Jumper needed to achieve triple throw | - |
|
|
68AT22-1SWITCH TOGGLE 8PDT 7A 115V |
3,888 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | On-Off-On | 7A (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|

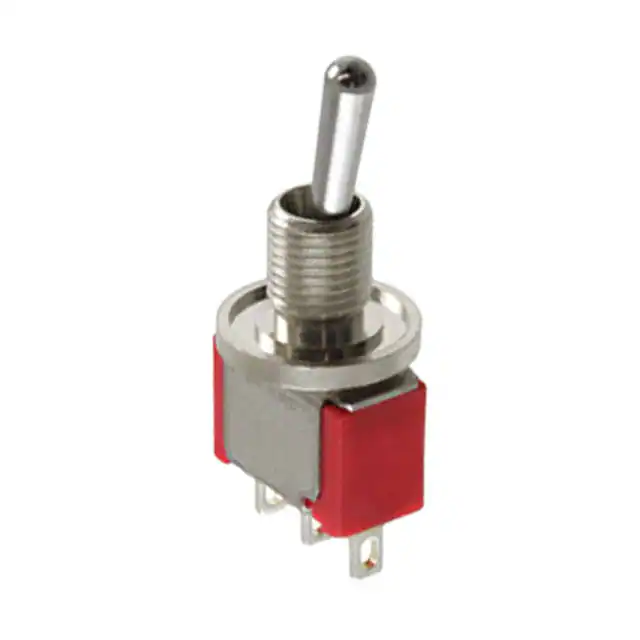

100SP2T1B9M1QESWITCH TOGGLE SPDT 5A 120V |
1,572 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

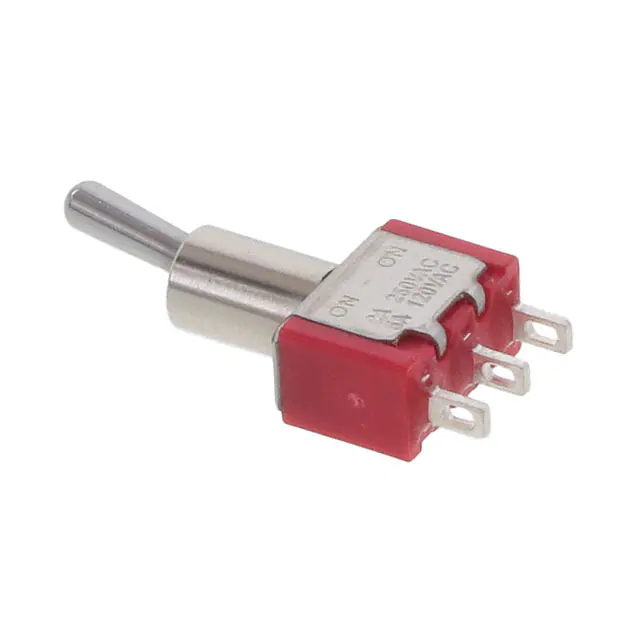

100SP1T1B2M1QESWITCH TOGGLE SPDT 5A 120V |
268 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TST 1 DSWITCH TOGGLE 1-POLE ON - ON |
500 |
|
Datasheet |
TST | Bag | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

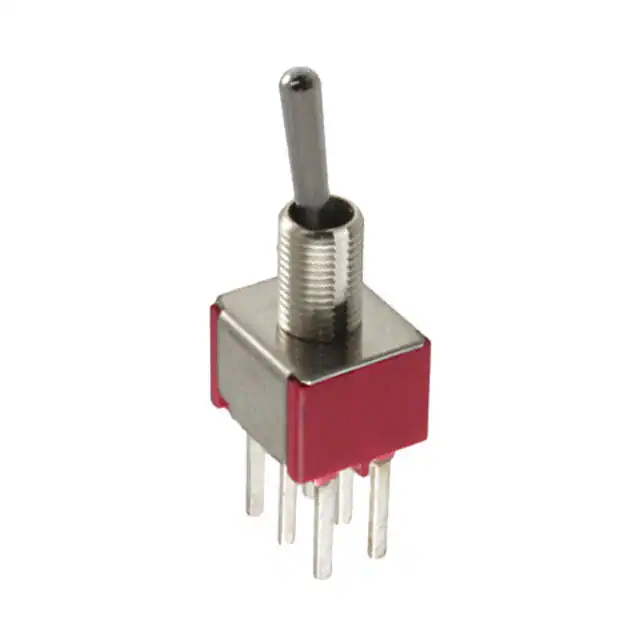

100DP1T1B1M53QESWITCH TOGGLE DPDT 5A 120V |
111 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

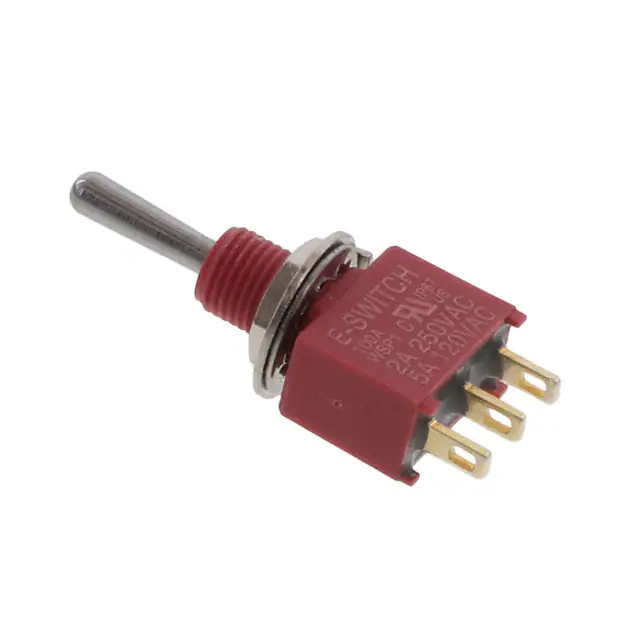

100AWSP1T1B1M1QEHSWITCH TOGGLE SPDT 5A 120V |
886 |
|
Datasheet |
100A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825138-7SWITCH TOGGLE DPDT 5A 120V |
483 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T2B1M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
576 |
|
Datasheet |
200 | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

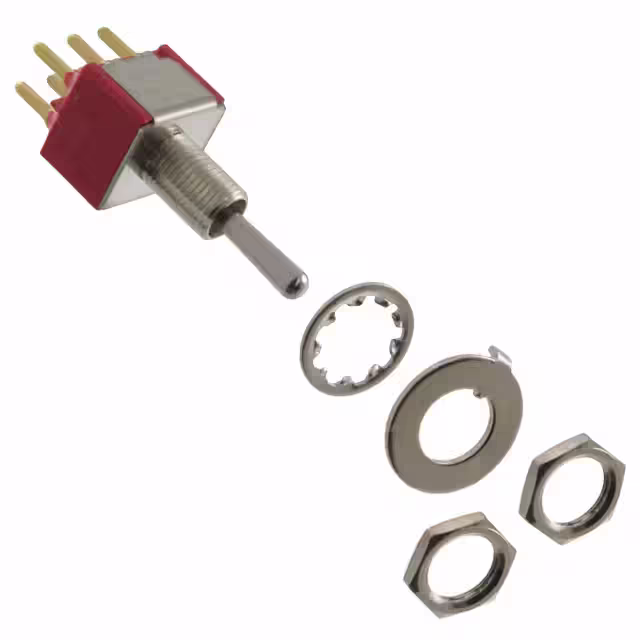

100DP3T1B1M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
539 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825138-4SWITCH TOGGLE DPDT 5A 120V |
497 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
