Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

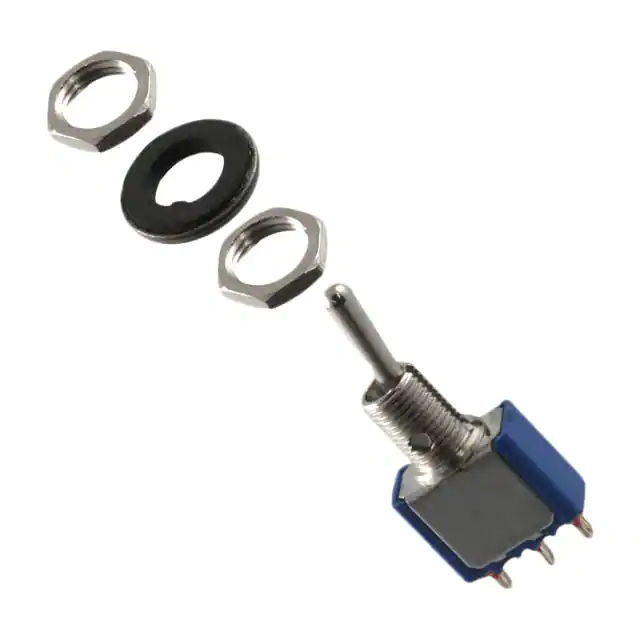

5636AKBSWITCH TOGGLE SPDT 6A 125V |
291 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Front Panel Sealing | -40°C ~ 85°C |
|

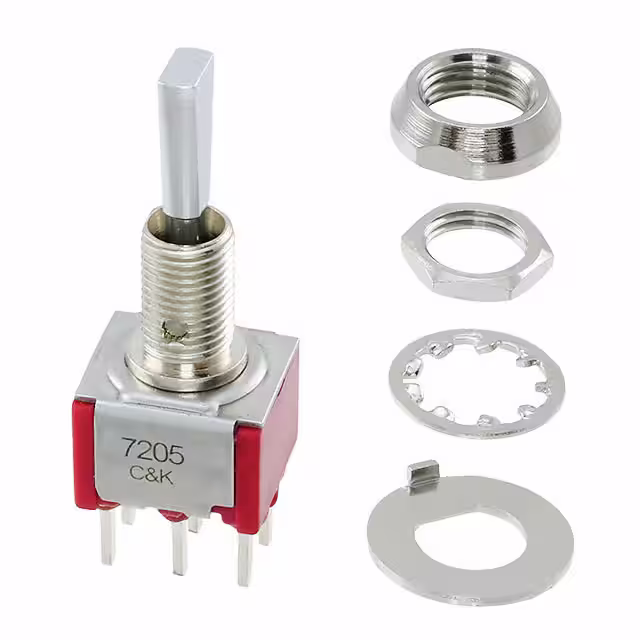

7205P3Y4CQESWITCH TOGGLE DPDT 5A 120V |
235 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

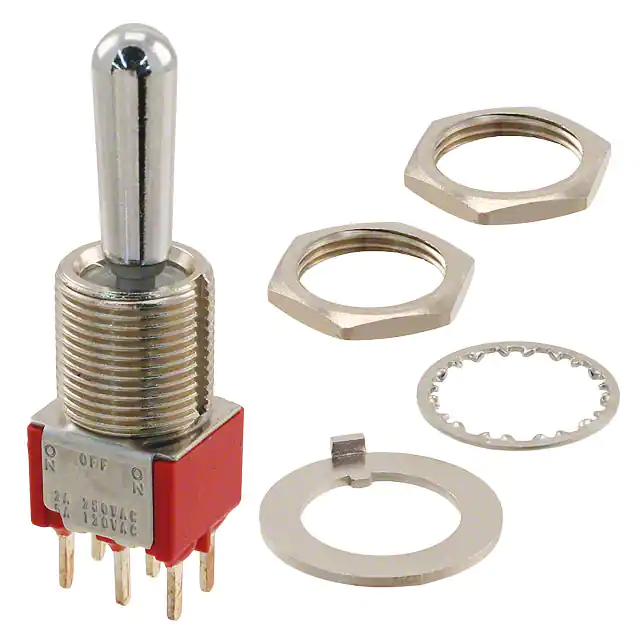

7205TCWCQESWITCH TOGGLE DPDT 5A 120V |
2,227 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7208P3YZQESWITCH TOGGLE DPDT 5A 120V |
115 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

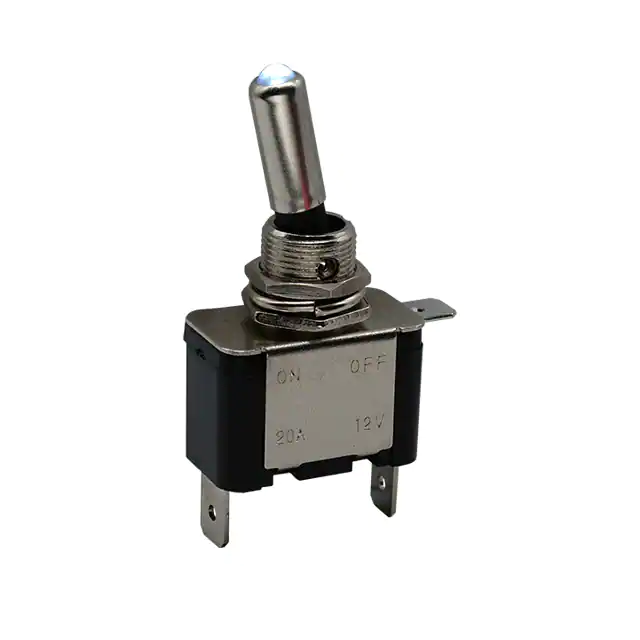

ILT01SWITCH TOGGLE SPST 20A 12V |
103 |
|
Datasheet |
ILT | Tray | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 19.90mm | Illuminated | LED, White | 2.8 ~ 3.6 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -25°C ~ 85°C |
|

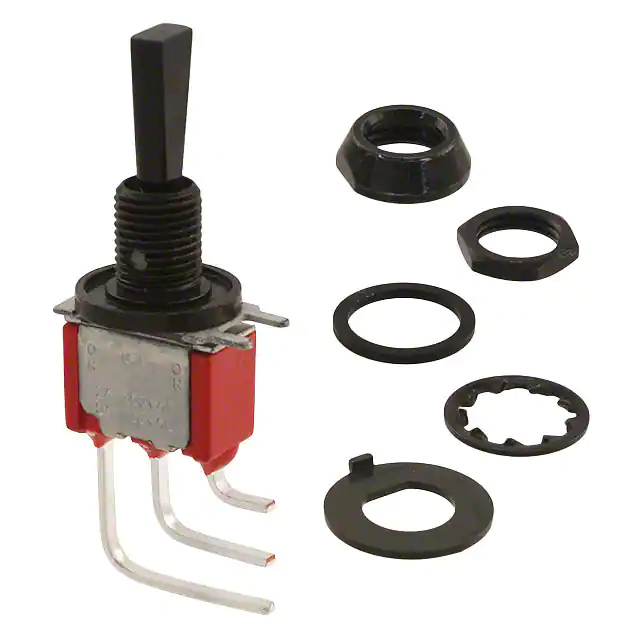

7107P3CWAV2QE22SWITCH TOGGLE SPDT 5A 120V |
417 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Actuator | -30°C ~ 85°C |
|

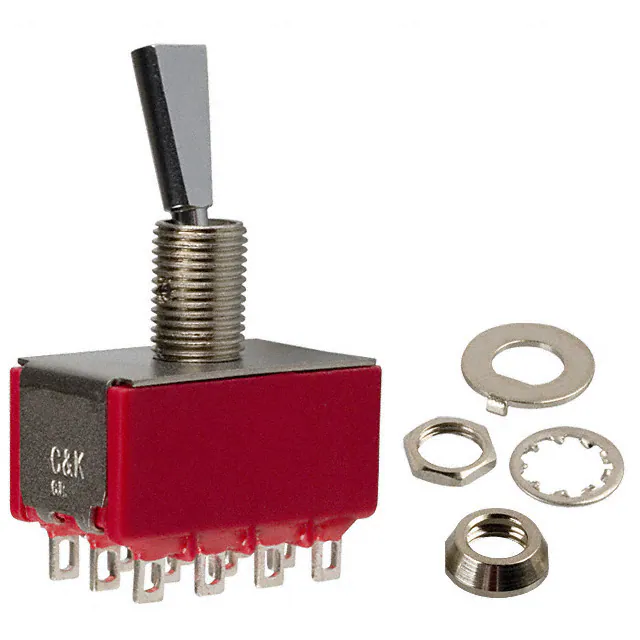

7403P3HZQESWITCH TOGGLE 4PDT 5A 120V |
180 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

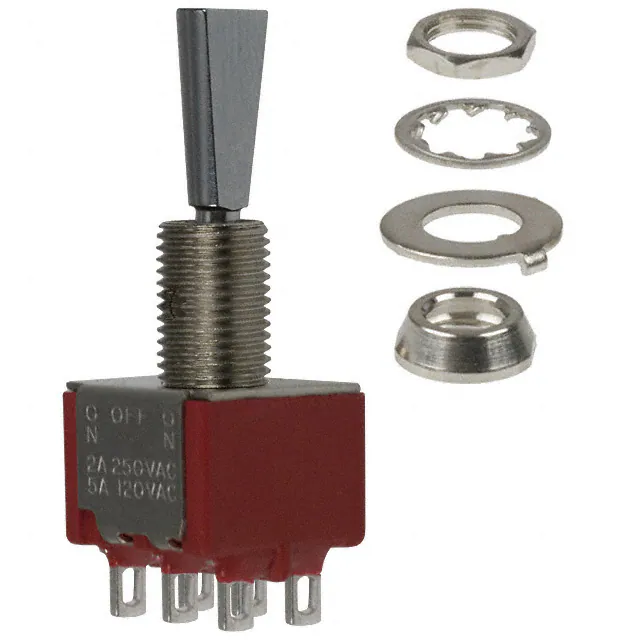

7203P3YZQESWITCH TOGGLE DPDT 5A 120V |
102 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7207P3YZQESWITCH TOGGLE DPDT 5A 120V |
138 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
4-6437630-6SWITCH TOGGLE DPDT 6A 250V |
128 |
|
Datasheet |
F | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
1825192-2SWITCH TOGGLE SPDT 0.4VA 20V |
144 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

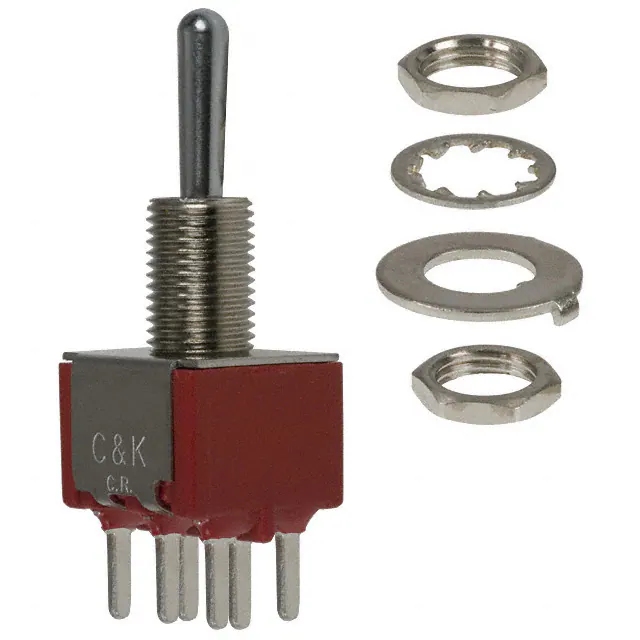

7215SYCQESWITCH TOGGLE SP3T 5A 120V |
101 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

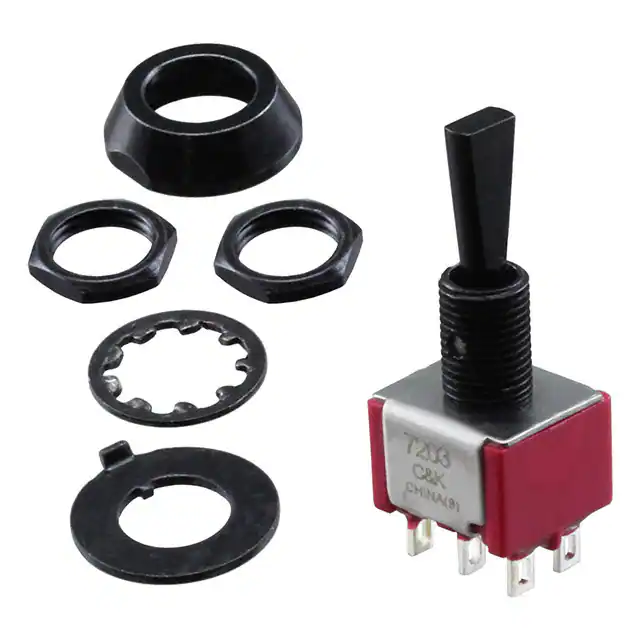

7203P3YZQE22SWITCH TOGGLE DPDT 5A 120V |
355 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|

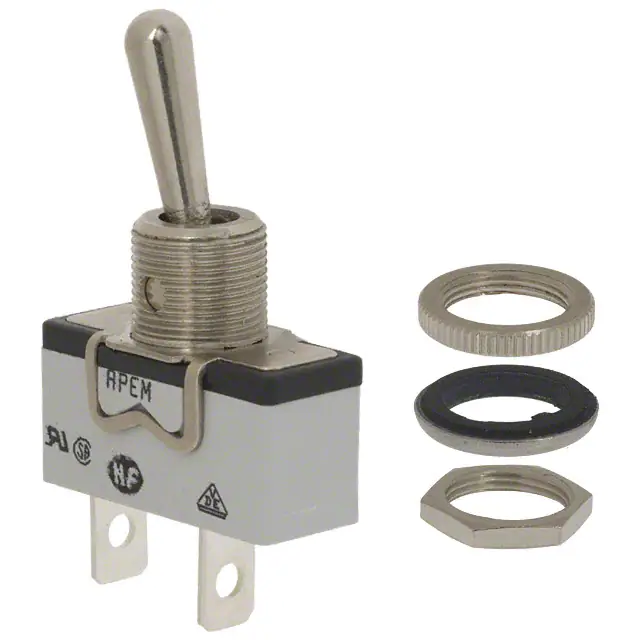

631H/2KSWITCH TOGGLE SPST 15A 250V |
293 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Front Panel Sealing | -20°C ~ 55°C |
|

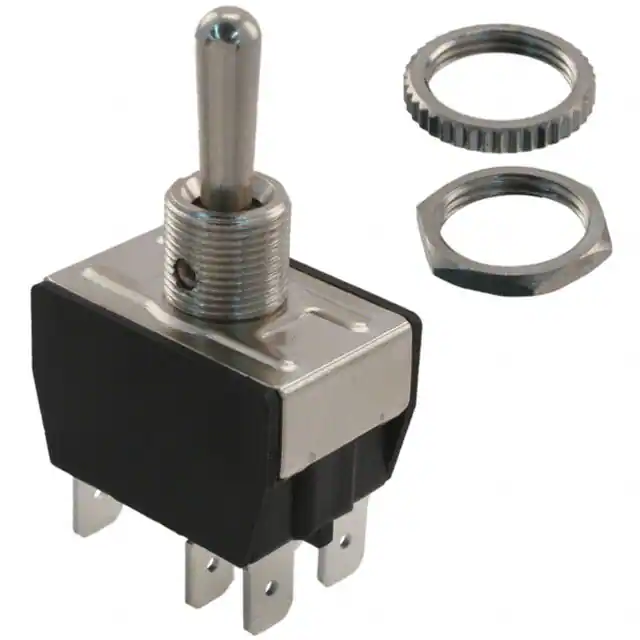

C3972BASWITCH TOGGLE DPDT 16A 125V |
421 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
7201TCWZQESWITCH TOGGLE DPDT 5A 120V |
497 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

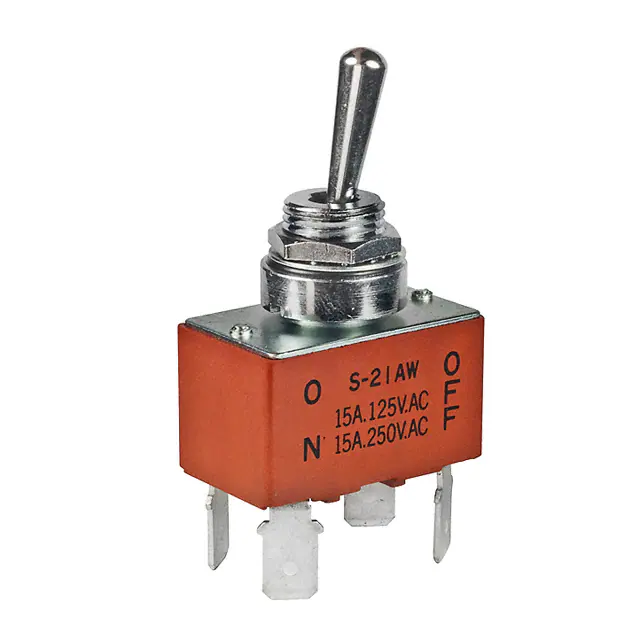

S21AWFSWITCH TOGGLE DPST 15A 125V |
113 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|

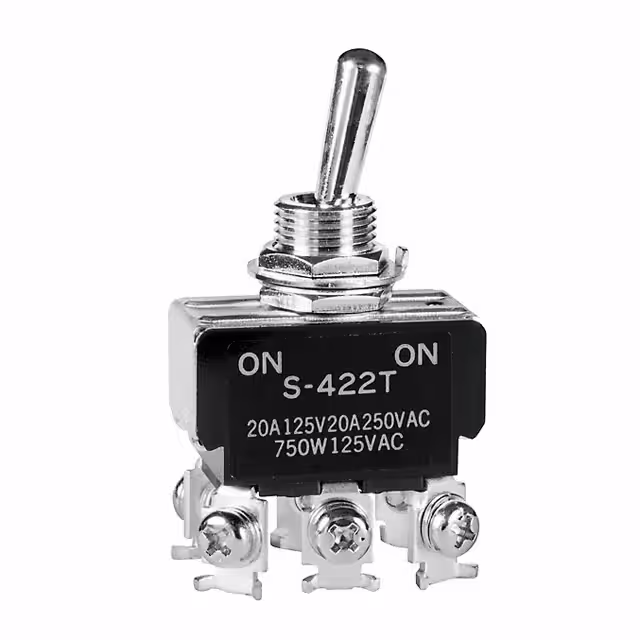

S422TSWITCH TOGGLE DPDT 20A 125V |
1,383 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

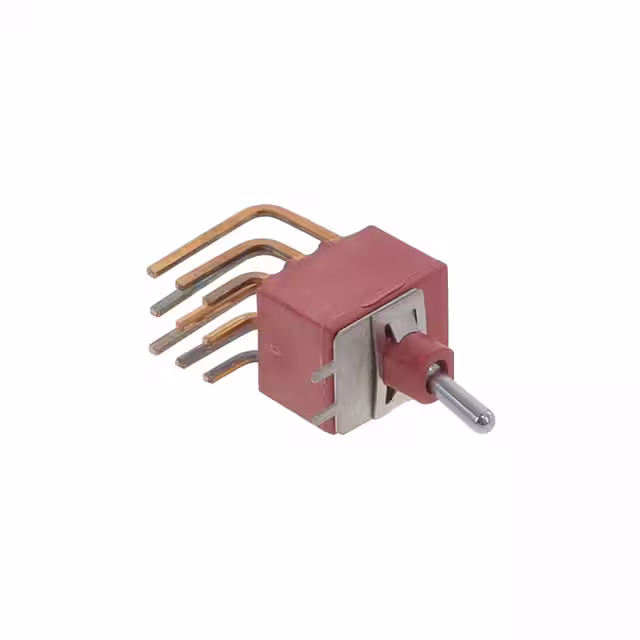

E301MD1AGESWITCH TOGGLE 3PDT 5A 125V |
500 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | 3PDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
644H/22RSWITCH TOGGLE SP3T 10A 250V |
737 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Jumper needed to achieve triple throw | -20°C ~ 55°C |
