Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A201KZQSWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
4,816 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
1571926-6SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
3,453 |
|
- |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1-1571920-6SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
2,384 |
|
Datasheet |

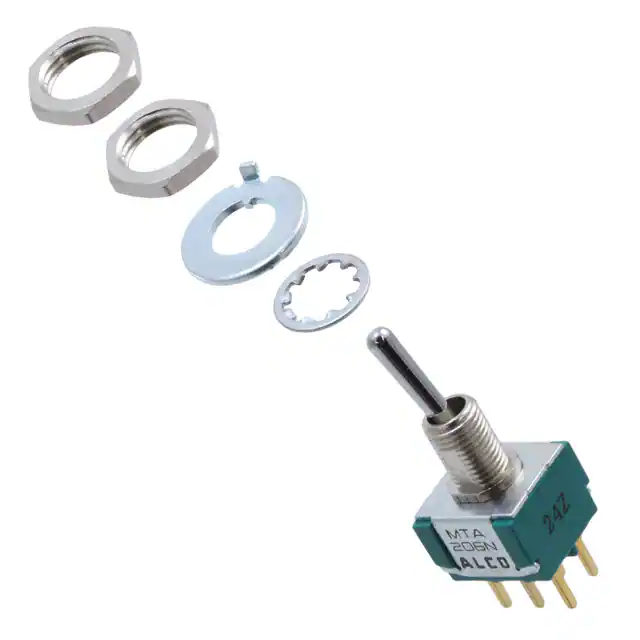

MTA Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1-1571925-6SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
2,102 |
|
- |
MTF Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Flatted | 12.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2-1571920-7SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
2,359 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1571926-5SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
4,148 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1-1571925-7SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,502 |
|
- |
MTF Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Flatted | 12.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2-1571926-5SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
4,409 |
|
- |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 17.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2-1571920-6SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
2,665 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1-1571920-5SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
3,511 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
