Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE211MD1CBSWITCH TOGGLE SP3T 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,108 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
2-1571920-0SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
3,966 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
A107P3YZQSWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
2,204 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flatted | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
1571925-6SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,241 |
|
- |
MTF Green | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Flatted | 12.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1-1571926-0SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,789 |
|
- |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 17.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

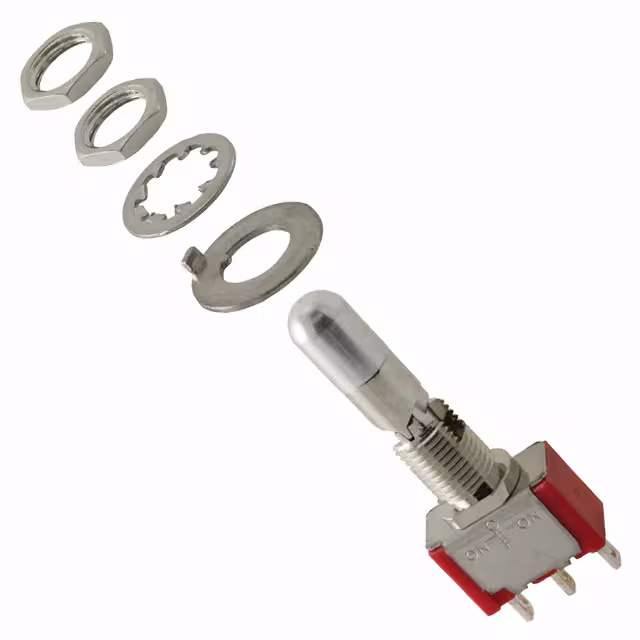

1825137-1SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
3,320 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825139-9SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
1,318 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1571924-3SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,932 |
|
- |
MTE Green | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
AE203MD1ABSWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,782 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
AE201MD1ABSWITCH TOGGLE DPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,568 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
