Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17PM-K049BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,114 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 700 mA | 200.0 | 1.8° | - | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 6.4 Ohms | Round Shaft |
|

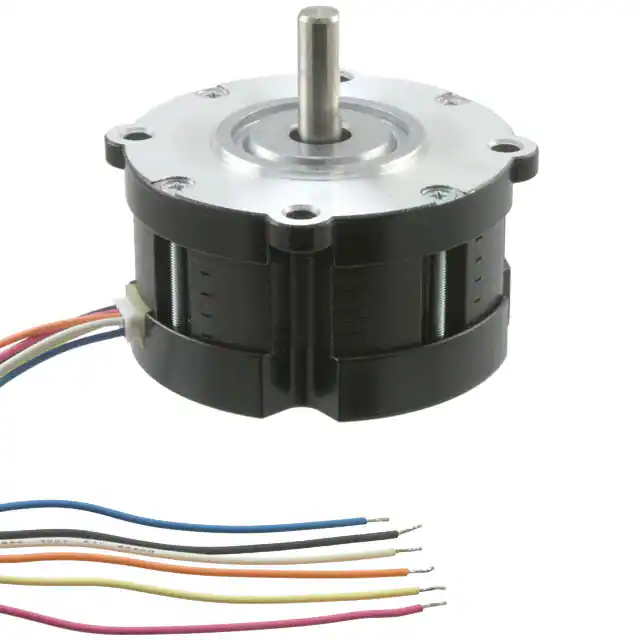

29SM-K550-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
1,476 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.5 A | 200.0 | 1.8° | ±5% | 53.82 / 380 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.1 Ohms | Round Shaft |
|
29SM-K550-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
1,640 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.5 A | 200.0 | 1.8° | ±5% | 53.82 / 380 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.1 Ohms | Round Shaft |
|

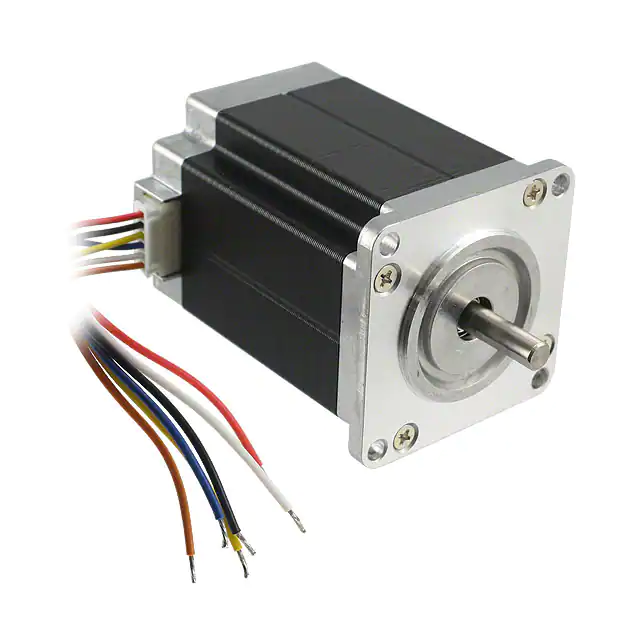

23KM-K762-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,676 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 8.6 Ohms | Flatted Shaft |
|

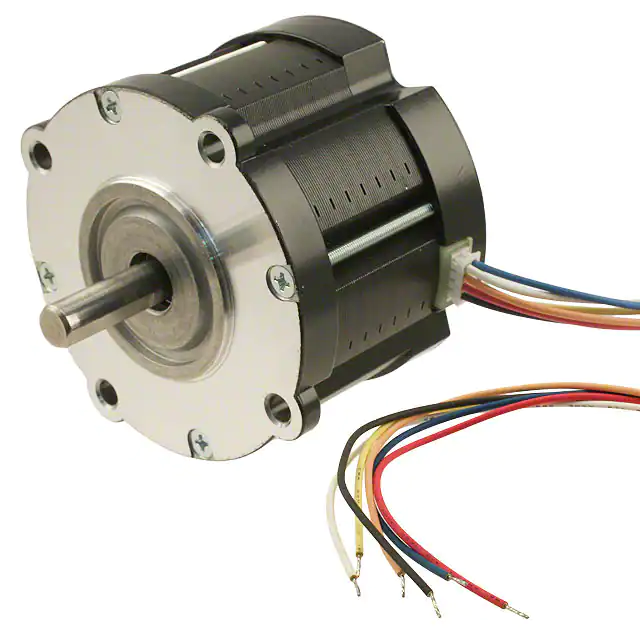

29SM-K379-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,247 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.9 A | 200.0 | 1.8° | ±5% | 116.14 / 820 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.75 Ohms | Round Shaft |
|

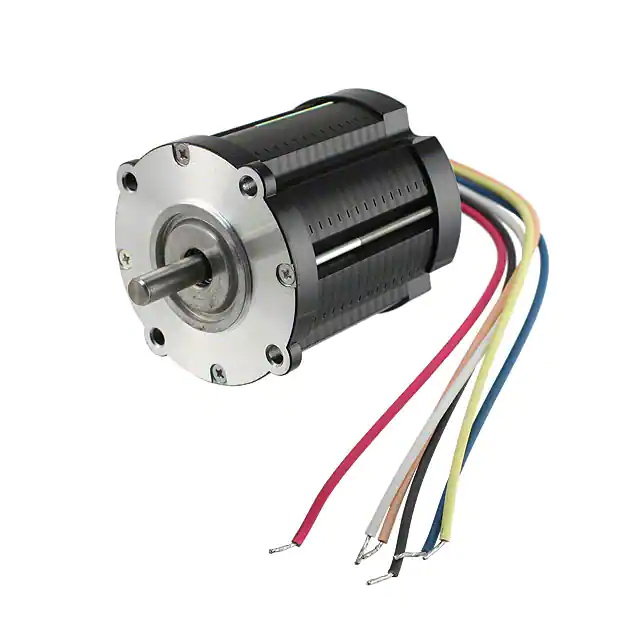

29SM-K711-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
4,981 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 205.36 / 1450 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms | Round Shaft |
|
|
SM3.4-F20-HHD8STEPPER MOTOR PM BIPOLAR 3V NMB Technologies Corporation |
3,741 |
|
Datasheet |
- | Bulk | Active | Permanent Magnet | Bipolar | 3VDC | - | 20.0 | 18° | - | - | Round - 0.134" Dia (3.40mm) | - | 0.024" (0.60mm) | 0.118" (3.00mm) | - | PC Pin | -10°C ~ 50°C | 25 Ohms | Round Shaft |
|

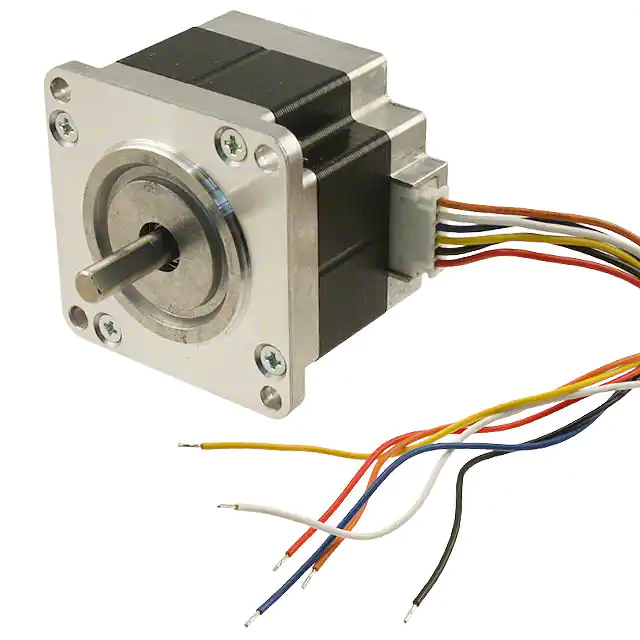

23KM-K267-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
1,704 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 900 mA | 200.0 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 5.8 Ohms | Flatted Shaft |
|

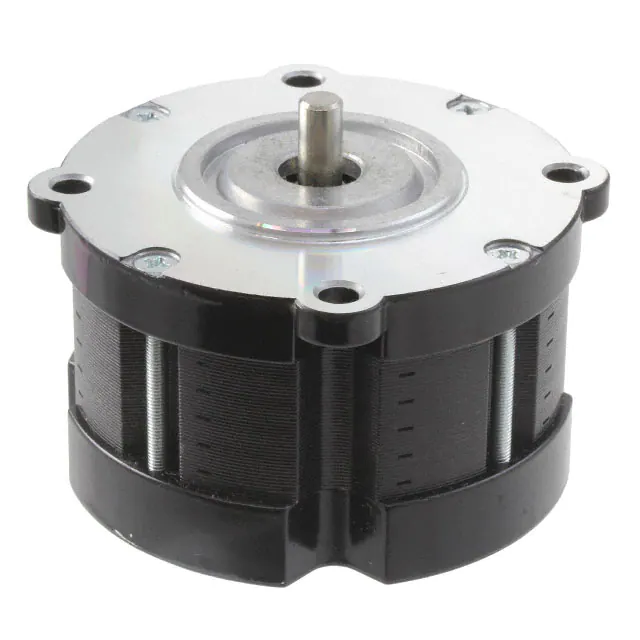

29SM-K242BT01CASTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
1,546 |
|
Datasheet |
29SM | Box | Active | Hybrid | Bipolar | 24VDC | - | 200.0 | 1.8° | ±5% | - | Round - 2.795" Dia (71.00mm) | - | 0.236" (6.00mm) | 0.453" (11.50mm) | 1.856" (47.14mm) | Connector | -10°C ~ 50°C | - | Round Shaft |
|
17PY-Z053-00VSSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,178 |
|
Datasheet |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 850 mA | 400.0 | 0.9° | ±5% | 22.7 / 160 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 4.2 Ohms | Flatted Shaft |
