Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

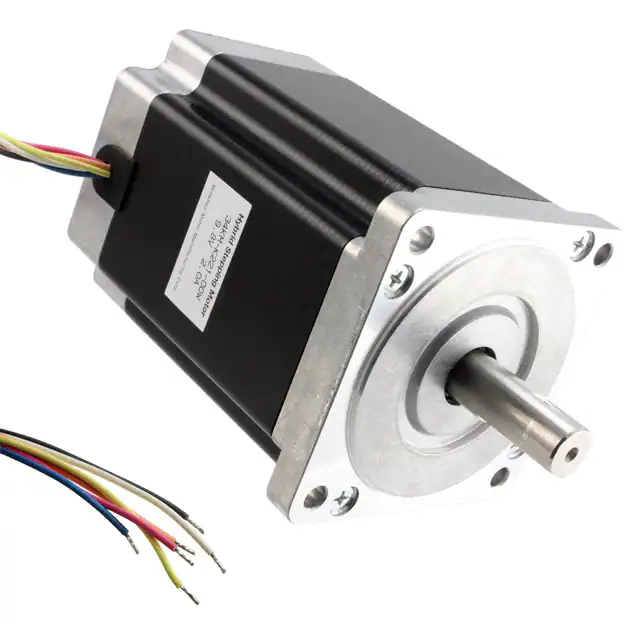

34KM-K221-00WSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,403 |
|
Datasheet |
34KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 948.92 / 6700 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 4.9 Ohms | Double Flatted Shaft |
|
17PM-K440CN05CNMOTOR, STEP, 1.8 DEG, NEMA 17 NMB Technologies Corporation |
1,798 |
|
Datasheet |
- | Tray | Active | Hybrid | - | 2.4V | 2 A | - | 1.8° | - | 63.7 / 450 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | - | 0.490" (12.45mm) | 1.220" (31.00mm) | Connector | - | - | - |
|
|
11PM-K142USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
4,963 |
|
Datasheet |
11PM-K | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200.0 | 1.8° | - | 14.87 / 105 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 2.9 Ohms | - |
|
|
11PM-K241USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
1,814 |
|
Datasheet |
11PM-K | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200.0 | 1.8° | - | 20.53 / 145 | Square - 1.102" x 1.102" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 3.4 Ohms | - |
|

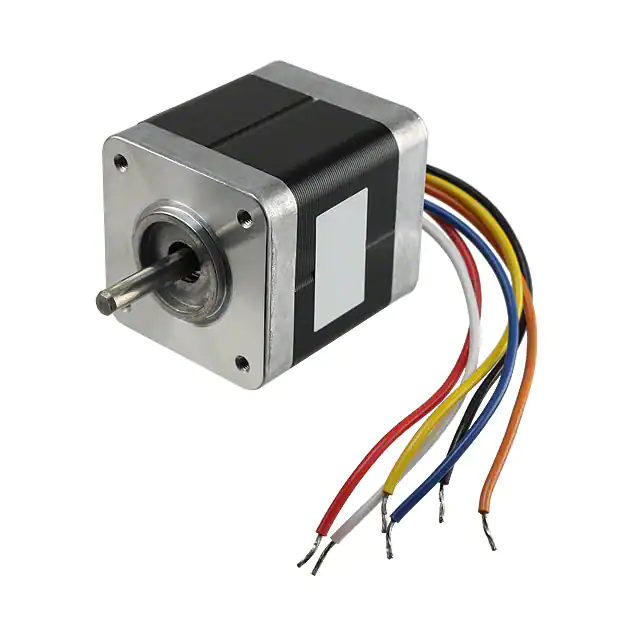

17PM-K455-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
1,343 |
|
Datasheet |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 800 mA | 200.0 | 1.8° | ±5% | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 7.3 Ohms | Flatted Shaft |
|

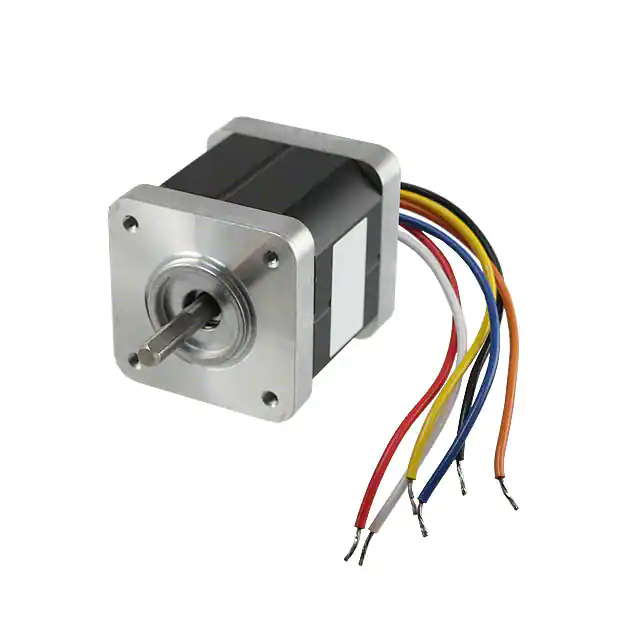

17PY-Z444-00VSSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,295 |
|
Datasheet |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.2 A | 400.0 | 0.9° | ±5% | 46.74 / 330 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 3.3 Ohms | Flatted Shaft |
|

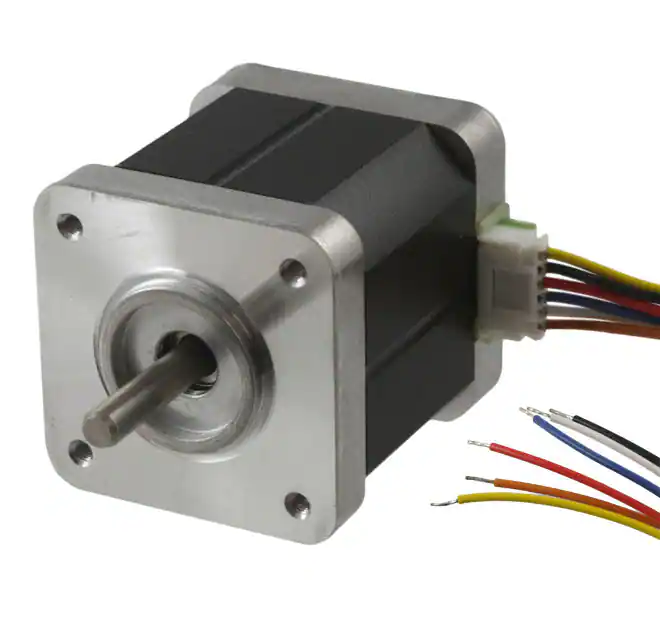

17PY-Z444-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,439 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 400.0 | 0.9° | ±5% | 46.74 / 330 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 3.3 Ohms | Flatted Shaft |
|

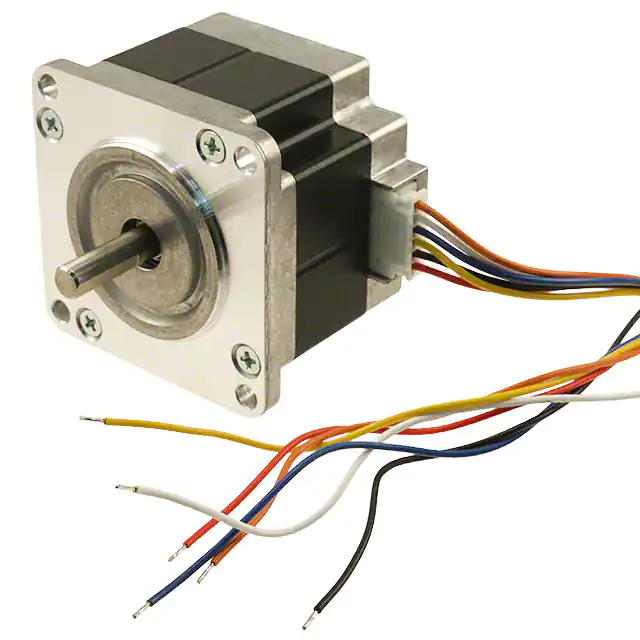

23KM-K251-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,335 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.8 A | 200.0 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.5 Ohms | Flatted Shaft |
|
|
11PM-K043-UPVSSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,173 |
|
Datasheet |
11PM-K | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200.0 | 1.8° | - | 10.62 / 75 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 2.5 Ohms | - |
|

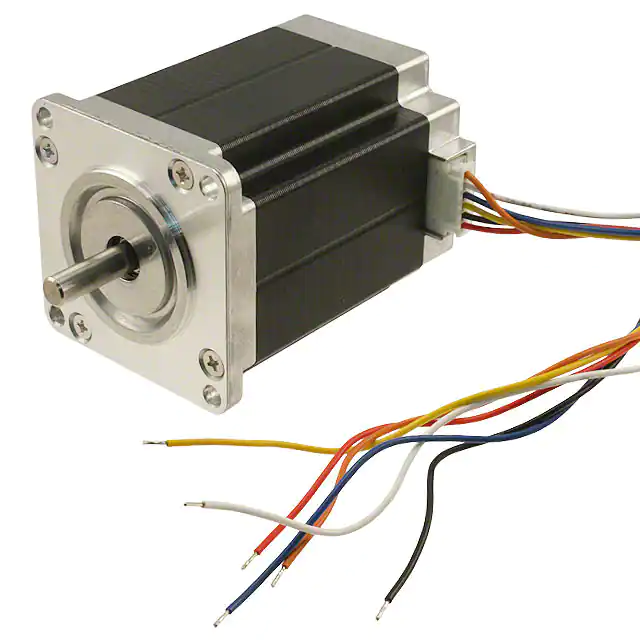

23KM-K748-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,978 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms | Flatted Shaft |
