Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

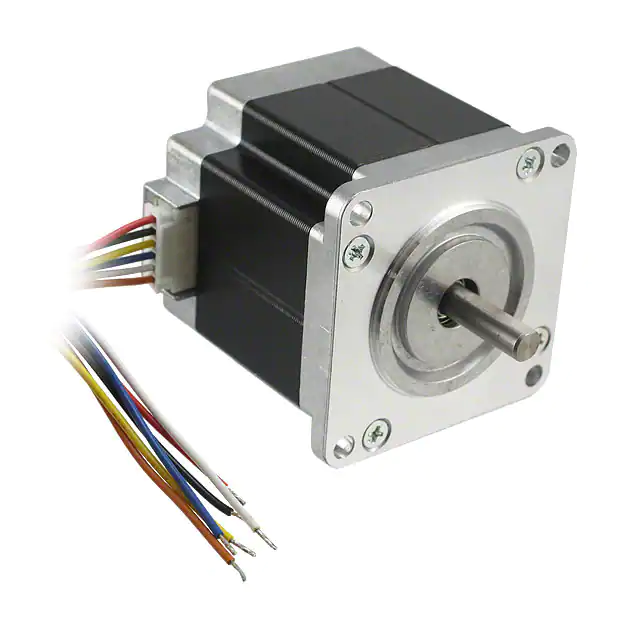

23KM-K049-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
4,133 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.7 Ohms | Flatted Shaft |
|

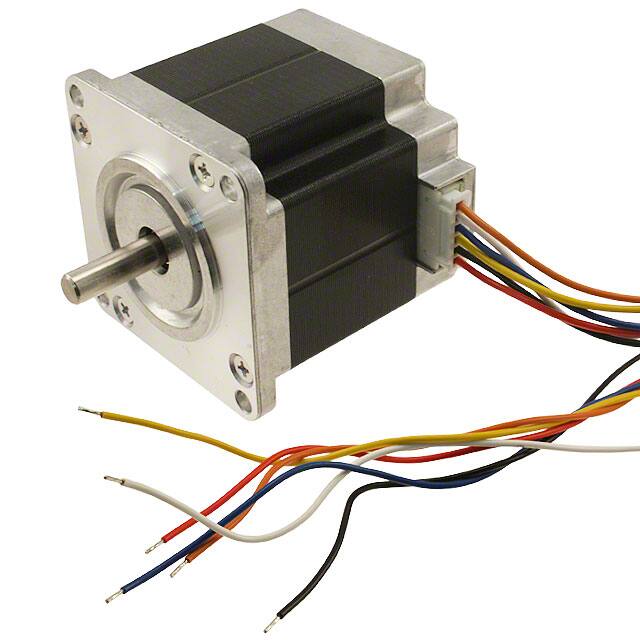

23KM-K044-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,002 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 0.85 Ohms | Flatted Shaft |
|
SM3.4-F20-UCN0FMOTORS & SOLENOIDS NMB Technologies Corporation |
2,931 |
|
Datasheet |
SM3.4-F20-UCN0F | Bulk | Active | Permanent Magnet | Bipolar | 3V | - | 20.0 | 18° | - | - | Round - 0.134" Dia (3.40mm) | - | 0.024" (0.60mm) | - | - | PC Pin | -10°C ~ 50°C | 25 Ohms | Round Shaft |
|
08PM-K049BSTDCNSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,111 |
|
Datasheet |
08PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 500 mA | 200.0 | 1.8° | - | 2.83 / 20 | Square - 0.787" x 0.787" (20.00mm x 20.00mm) | 8 | 0.157" (4.00mm) | 0.394" (10.00mm) | 0.630" (16.00mm) | Wire Leads with Connector | - | 8 Ohms | Flatted Shaft |
|
|

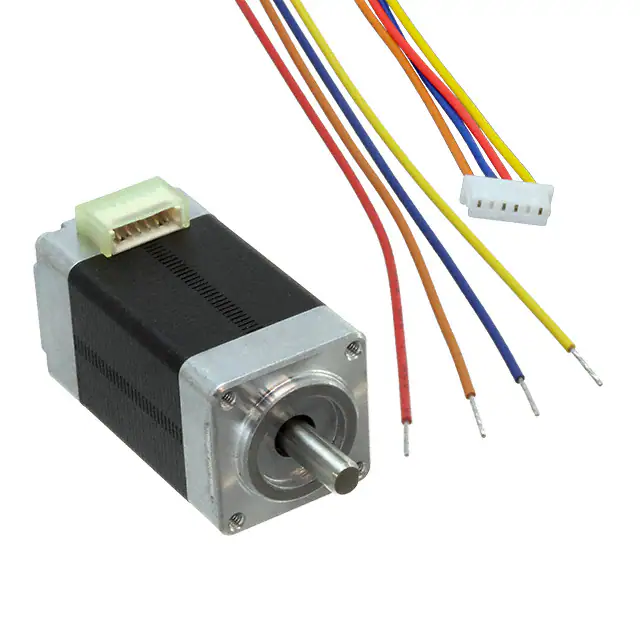

08PM-K139BSTDCNSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
4,762 |
|
Datasheet |
08PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 5.1 / 36 | Square - 0.787" x 0.787" (20.00mm x 20.00mm) | 8 | 0.157" (4.00mm) | 0.394" (10.00mm) | 0.630" (16.00mm) | Wire Leads with Connector | - | 6.5 Ohms | Flatted Shaft |
|

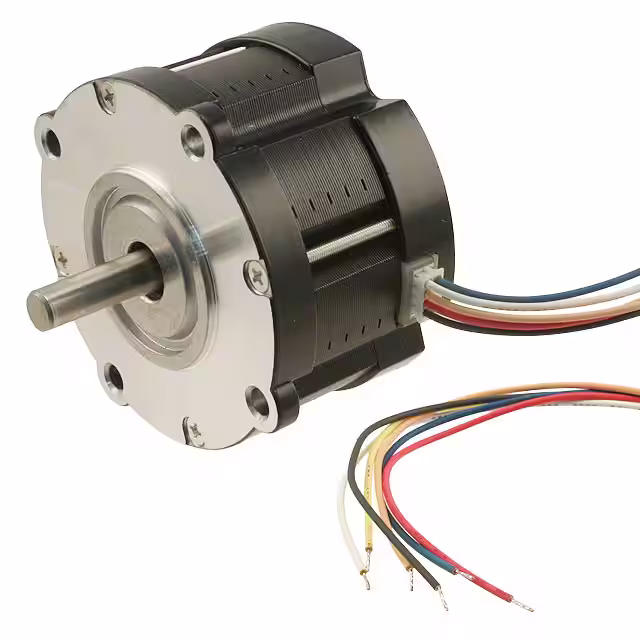

29SM-K250-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,771 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.6 A | 200.0 | 1.8° | ±5% | 82.15 / 580 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms | Round Shaft |
|
23KM-K748-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,893 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms | Flatted Shaft |
|

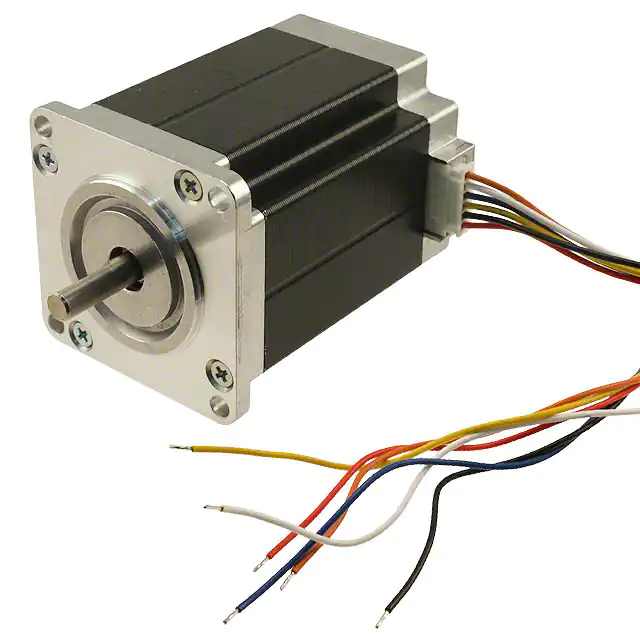

23KM-K743-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,153 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.1 Ohms | Flatted Shaft |
|

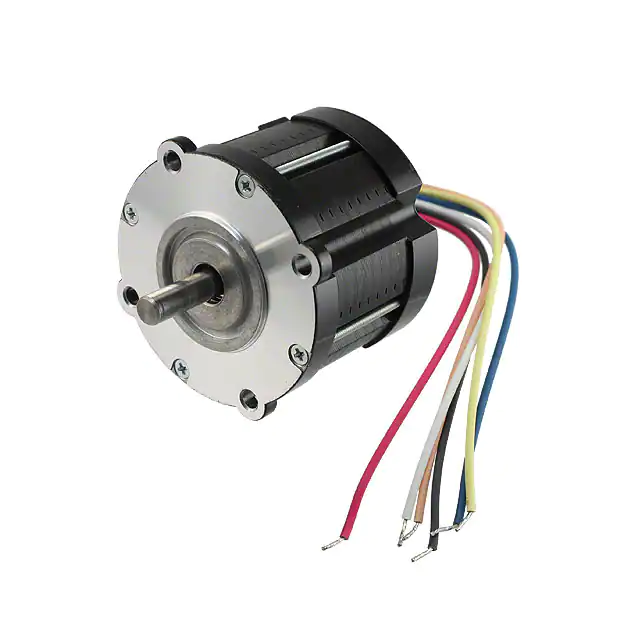

29SM-K035-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
4,086 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2.2 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.55 Ohms | Round Shaft |
|

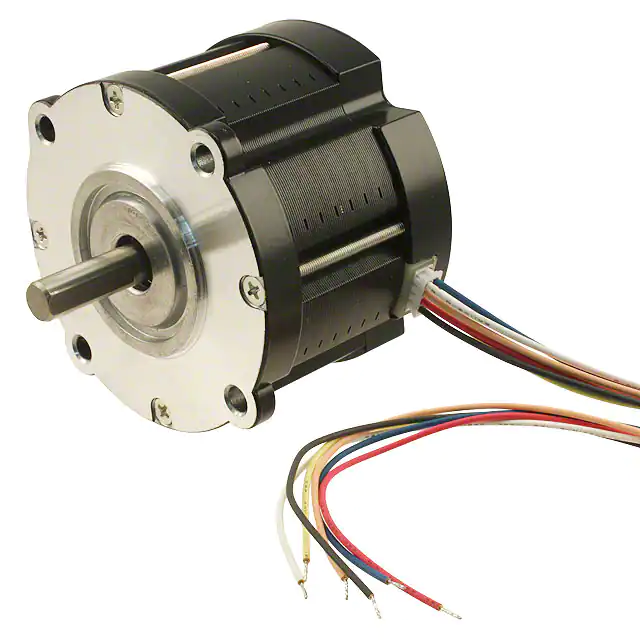

29SM-K379-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
4,633 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.9 A | 200.0 | 1.8° | ±5% | 116.14 / 820 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.75 Ohms | Round Shaft |
