Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

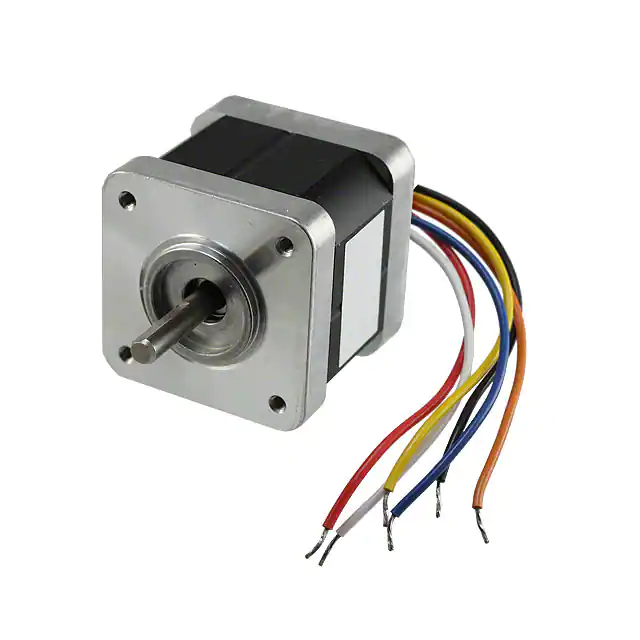

17PY-Z858-00VSSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
1,819 |
|
Datasheet |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 750 mA | 400.0 | 0.9° | ±5% | 36.82 / 260 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 7.4 Ohms | Flatted Shaft |
|
17PM-K845-00VSSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
1,847 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.2 A | 200.0 | 1.8° | ±5% | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 2.9 Ohms | Flatted Shaft |
|
17PM-KA39USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,777 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.4 A | 200.0 | 1.8° | - | 68.69 / 485 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 2.9 Ohms | Round Shaft |
|
17PY-Z845-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,347 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 400.0 | 0.9° | ±5% | 36.82 / 260 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.9 Ohms | Flatted Shaft |
|

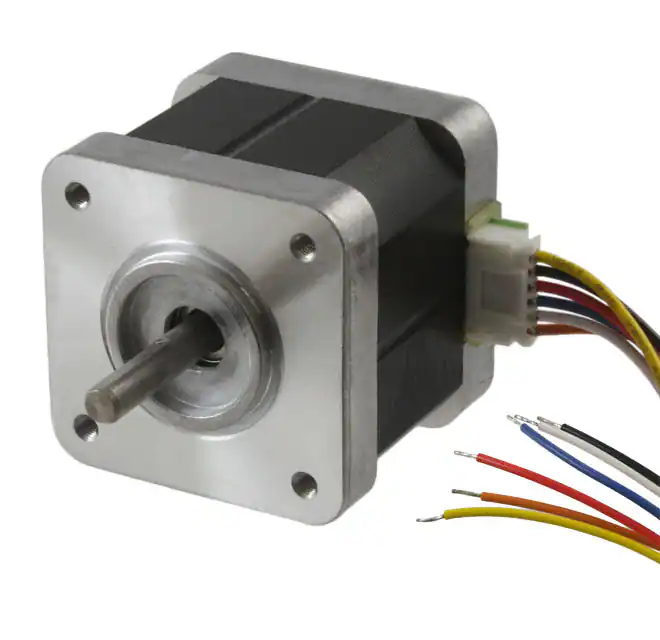

17PY-Z858-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,404 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 750 mA | 400.0 | 0.9° | ±5% | 36.82 / 260 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 7.4 Ohms | Flatted Shaft |
|

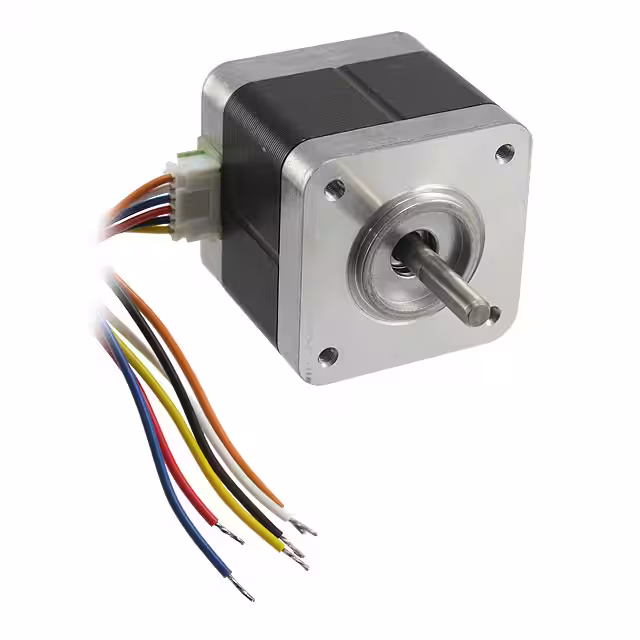

17PM-K845-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
1,979 |
|
Datasheet |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 200.0 | 1.8° | ±5% | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 2.9 Ohms | Flatted Shaft |
|

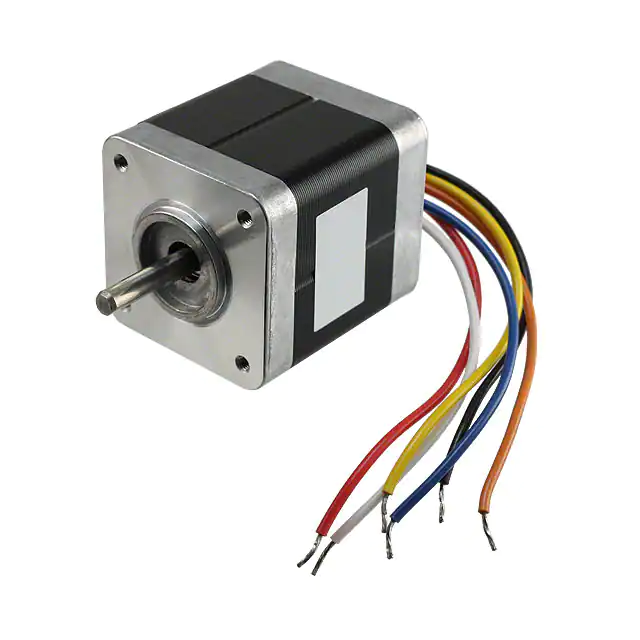

17PM-K858-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,684 |
|
Datasheet |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 750 mA | 200.0 | 1.8° | ±5% | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 7.4 Ohms | Flatted Shaft |
|
23KY-K251USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,481 |
|
Datasheet |
23KY | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.8 A | 400.0 | 0.9° | - | 66.57 / 470 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 1.6 Ohms | Round Shaft |
|
17PY-Z455-00VSSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
4,336 |
|
Datasheet |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 800 mA | 400.0 | 0.9° | ±5% | 46.74 / 330 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 7.3 Ohms | Flatted Shaft |
|
|
23KY-K040BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,612 |
|
Datasheet |
23KY | Bulk | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 400.0 | 0.9° | ±5% | 148.71 / 1050 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 0.9 Ohms | Round Shaft |
