Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56206L1XSWITCH SLIDE DPDT 500MA 125V Switchcraft Inc. |
1,397 |
|
Datasheet |
56200 | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
56206L2XSWITCH SLIDE DPDT 500MA 125V Switchcraft Inc. |
2,867 |
|
Datasheet |
56200 | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

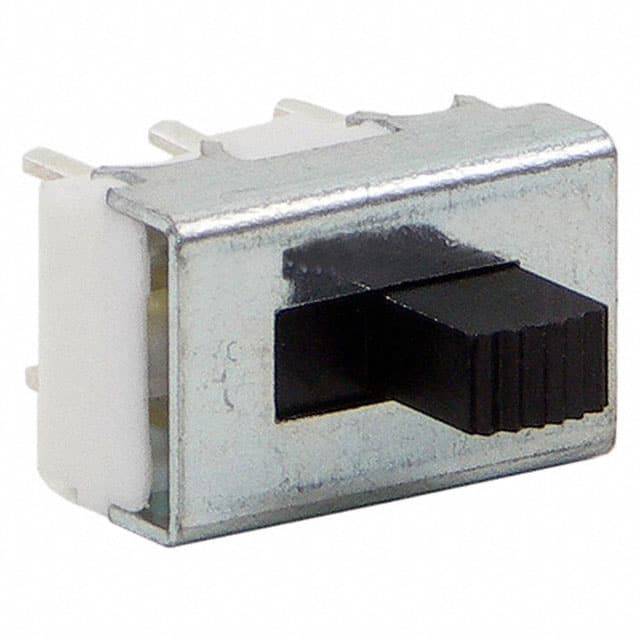

C56206L2XSWITCH SLIDE DPDT 500MA 125V Switchcraft Inc. |
1,013 |
|
Datasheet |
56200 | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
C56313L2XSWITCH SLIDE DP3T 500MA 125V Switchcraft Inc. |
2,061 |
|
Datasheet |
56300 | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.75mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

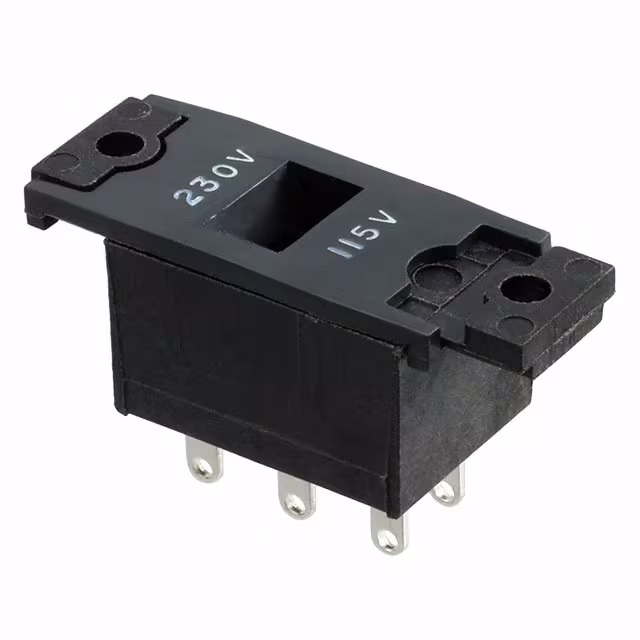

EPS1SL1SWITCH SLIDE DPDT 4A 125V Switchcraft Inc. |
3,393 |
|
Datasheet |
EPS1 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 4A (AC) | 125 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Panel Mount | Solder Lug | 115V-230V Marking |
|
46311LDRXSWITCH SLIDE SP3T 3A 125V Switchcraft Inc. |
3,030 |
|
- |
46300R | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

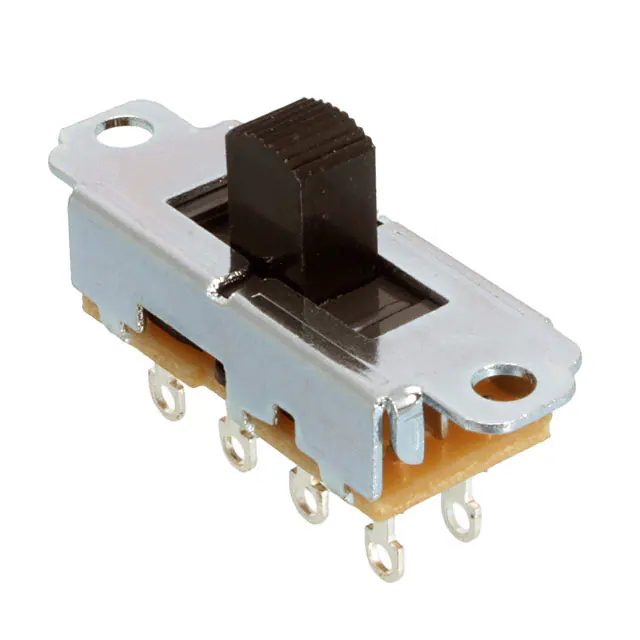

46313TDRXSWITCH SLIDE DP3T 3A 125V Switchcraft Inc. |
3,003 |
|
- |
46300R | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

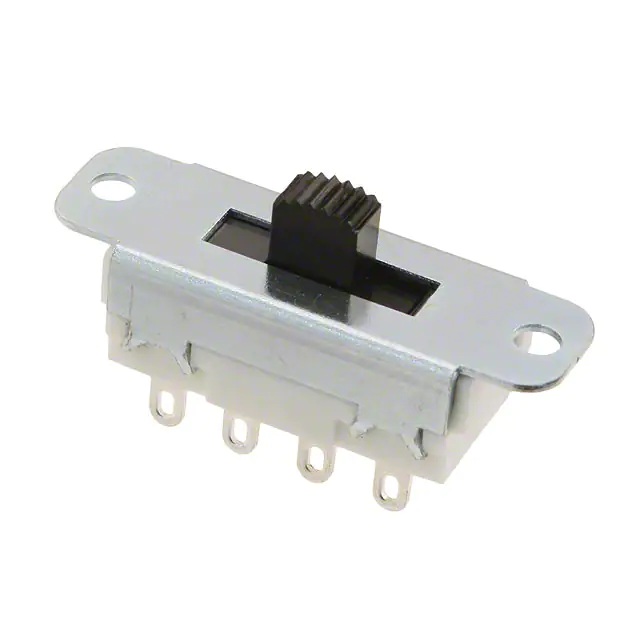

56313L2XSWITCH SLIDE DP3T 500MA 125V Switchcraft Inc. |
4,923 |
|
Datasheet |
56300 | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.75mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

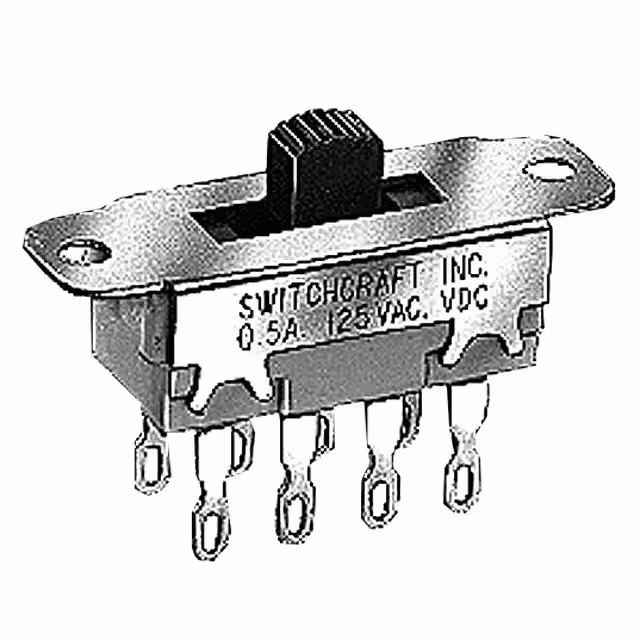

56313L1XSWITCH SLIDE DP3T 500MA 125V Switchcraft Inc. |
2,608 |
|
Datasheet |
56300 | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.75mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
EPS4PC1SWITCH SLIDE DPDT 10A 125V Switchcraft Inc. |
1,273 |
|
Datasheet |
EPS4 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC) | 125 V | - | Screwdriver Slot | Flush | Copper Alloy | - | Through Hole | PC Pin | 115V-230V Marking |
