Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
46206LFESWITCH SLIDE DPDT 3A 125V Switchcraft Inc. |
4,729 |
|
- |
46200E | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Panel Mount | Solder Lug | 115V-230V Marking |
|
|
46256LFESWITCH SLIDE DPDT 3A 125V Switchcraft Inc. |
1,808 |
|
- |
46200E | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Panel Mount | Solder Lug | 115V-230V Marking |
|

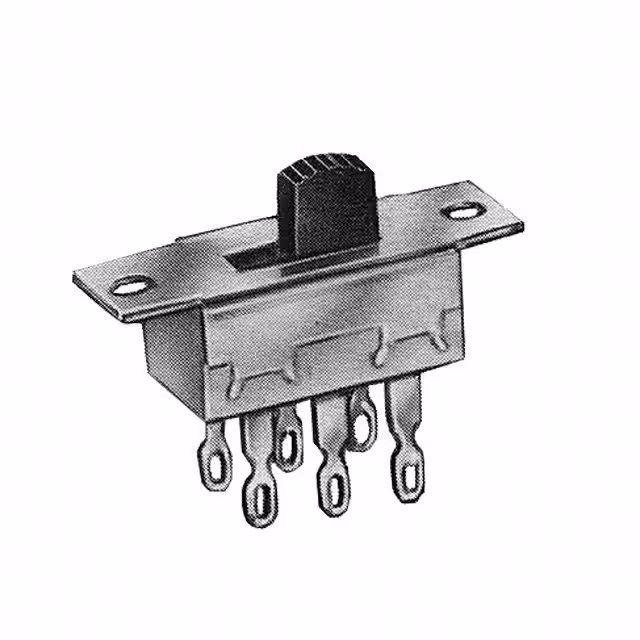

56206L1SWITCH SLIDE DPDT 500MA 125V Switchcraft Inc. |
4,020 |
|
Datasheet |
56200 | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
C46206LRXSWITCH SLIDE DPDT 3A 125V Switchcraft Inc. |
3,455 |
|
Datasheet |
46200R | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Through Hole | PC Pin | - |
|
50209LSWITCH SLIDE 3PDT 3A 125V Switchcraft Inc. |
3,650 |
|
- |
50200 | Bulk | Obsolete | 3PDT | Non-Shorting (BBM) | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
|
46203LRXSWITCH SLIDE SPDT 3A 125V Switchcraft Inc. |
1,652 |
|
Datasheet |
46200R | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
C56313L1SWITCH SLIDE DP3T 500MA 125V Switchcraft Inc. |
3,238 |
|
- |
56300 | Bulk | Obsolete | DP3T | Non-Shorting (BBM) | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.75mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
50212LSWITCH SLIDE 4PDT 3A 125V Switchcraft Inc. |
2,450 |
|
- |
50200 | Bulk | Obsolete | 4PDT | Non-Shorting (BBM) | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
|
46313LDRXSWITCH SLIDE DP3T 3A 125V Switchcraft Inc. |
4,300 |
|
Datasheet |
46300R | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.60mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
46256LFEXSWITCH SLIDE DPDT 3A 125V Switchcraft Inc. |
1,096 |
|
- |
46200E | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Panel Mount | Solder Lug | 115V-230V Marking |
