Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES215K-ZSWITCH SLIDE DPST 15A 125V Nidec Components Corporation |
1,287 |
|
Datasheet |
ES | Bulk | Obsolete | DPST | Non-Shorting (BBM) | On-Off | 15A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
ES215N-ZSWITCH SLIDE DPDT 15A 125V Nidec Components Corporation |
1,552 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 15A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
ES215P-ZSWITCH SLIDE DPDT 15A 125V Nidec Components Corporation |
2,898 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 15A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|

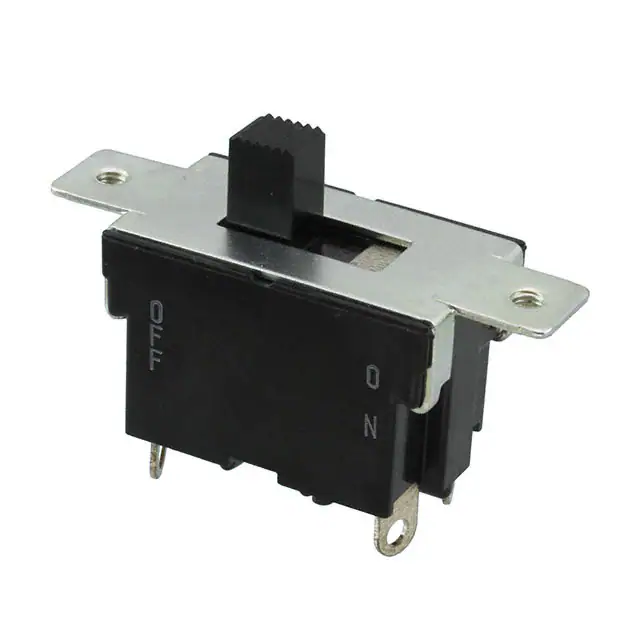

ES225K12-ZSWITCH SLIDE DPST 25A 125V Nidec Components Corporation |
4,835 |
|
Datasheet |
ES | Bulk | Obsolete | DPST | Non-Shorting (BBM) | On-Off | 25A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
ES225N12-ZSWITCH SLIDE DPDT 25A 125V Nidec Components Corporation |
2,483 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 25A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
|
ES225N-ZSWITCH SLIDE DPDT 25A 125V Nidec Components Corporation |
4,911 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 25A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
ES225P-ZSWITCH SLIDE DPDT 25A 125V Nidec Components Corporation |
4,106 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 25A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|

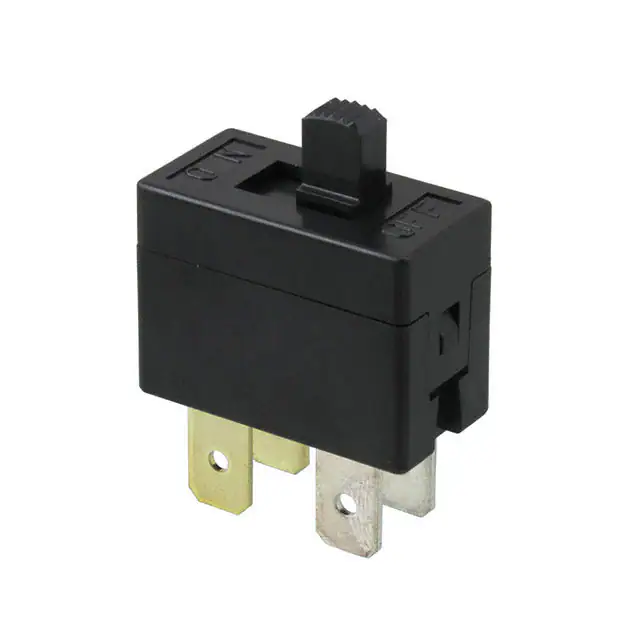

SS220K-23-ZSWITCH SLIDE DPST 20A 250V Nidec Components Corporation |
4,796 |
|
Datasheet |
SS220K-23 | Bulk | Obsolete | DPST | Non-Shorting (BBM) | On-Off | 20A (AC) | 250 V | - | Standard | 8.00mm | - | - | - | Quick Connect - 0.250" (6.3mm) | - |
|
AS2E-5M-10-ZSWITCH SLIDE DPDT 50MA 48V Nidec Components Corporation |
2,662 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|

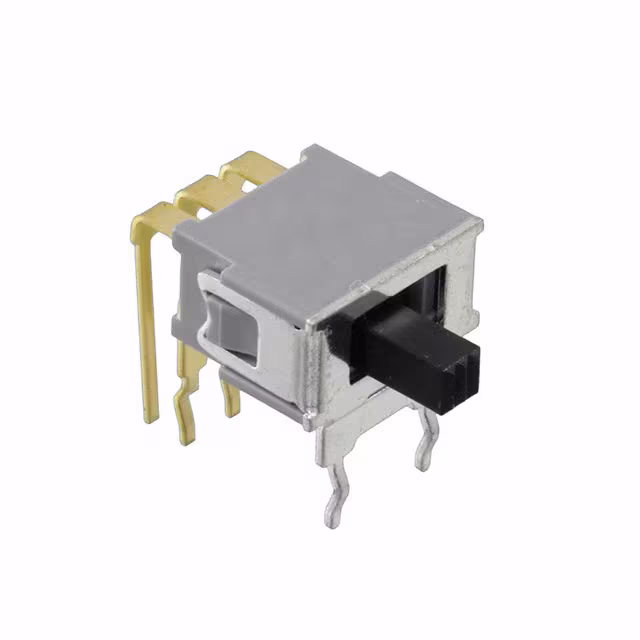

AS2E-6M-10-ZSWITCH SLIDE DPDT 50MA 48V Nidec Components Corporation |
1,923 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
