Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-4-ZSWITCH SLIDE DPDT 8A 125V Nidec Components Corporation |
3,185 |
|
- |
S | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 8A (AC) | 125 V | - | Standard | 16.00mm | - | - | Panel Mount | Solder Lug | - |
|
CMS-4216BSWITCH SLIDE 4PDT 0.1A 12V Nidec Components Corporation |
1,431 |
|
- |
CMS | Bulk | Active | 4PDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 6.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
CMS-4216ASWITCH SLIDE 4PDT 0.1A 12V Nidec Components Corporation |
4,600 |
|
- |
CMS | Bulk | Active | 4PDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 6.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | J Lead | - |
|
|
CMS-4216CSWITCH SLIDE 4PDT 0.1A 12V Nidec Components Corporation |
1,709 |
|
- |
CMS | Bulk | Active | 4PDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 6.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
CRFS-2304SWITCH SLIDE DP3T 100MA 12V Nidec Components Corporation |
4,513 |
|
Datasheet |
CRFS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 10.00mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|

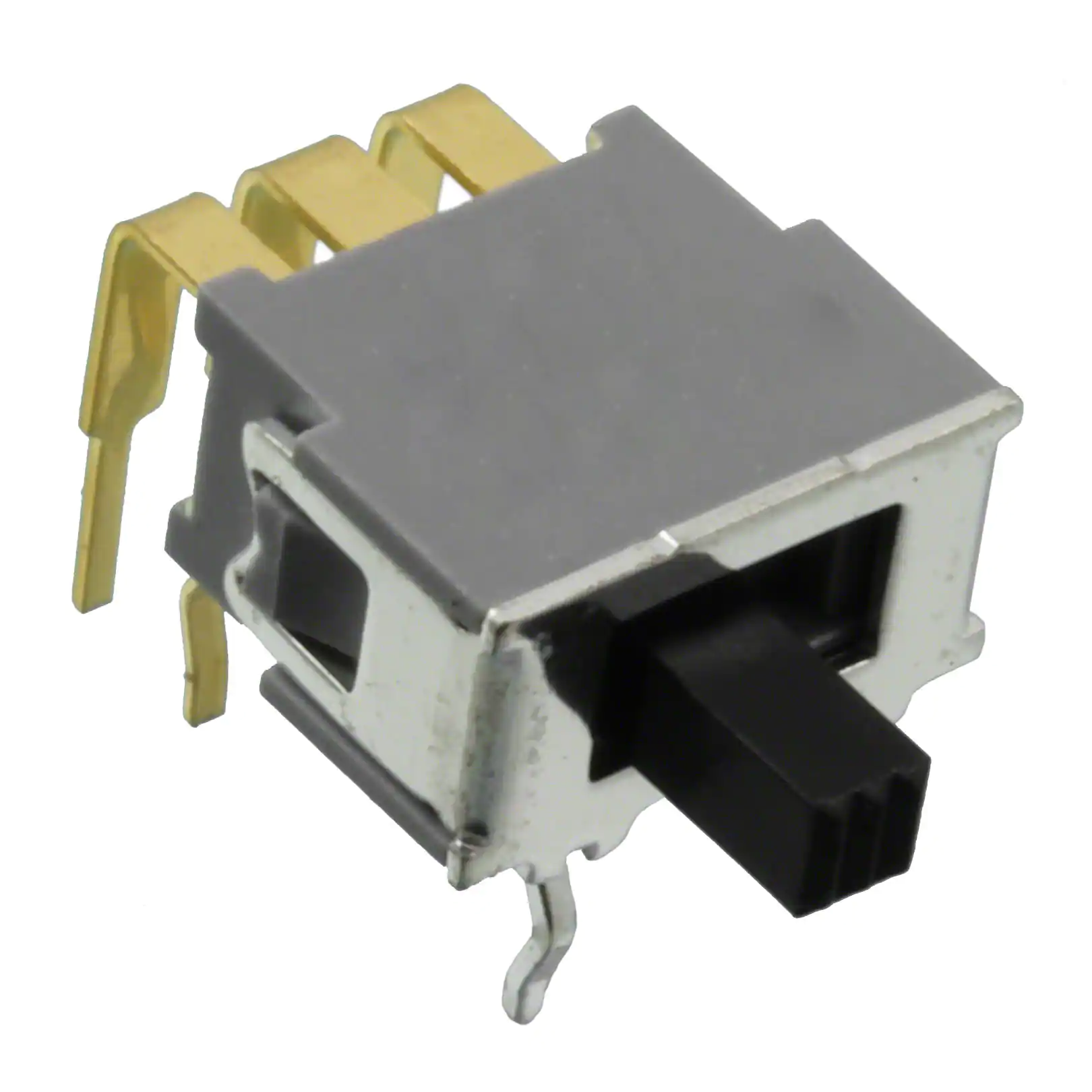

AS2D-6M-10-ZSWITCH SLIDE DPDT 50MA 48V Nidec Components Corporation |
3,015 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|

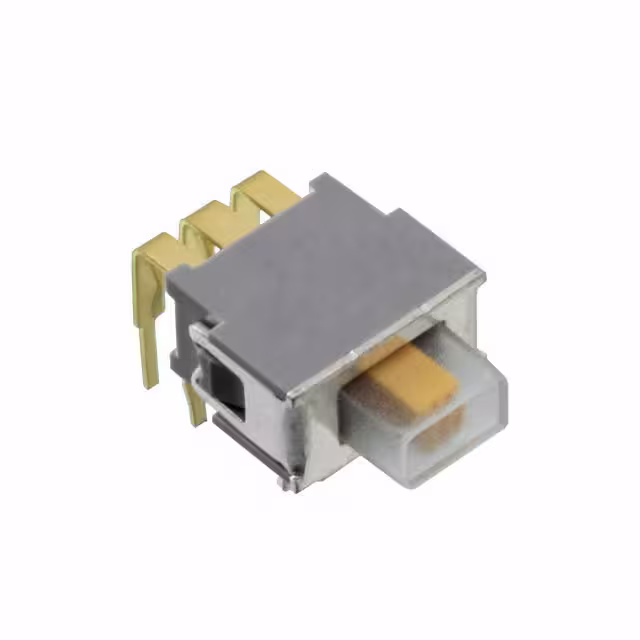

ASE2D-5M-10-ZSWITCH SLIDE DPDT 50MA 60V Nidec Components Corporation |
1,526 |
|
Datasheet |
ASE | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 60 V | 60 V | Standard | 2.80mm | - | Gold | Through Hole, Right Angle | PC Pin | Washable |
|

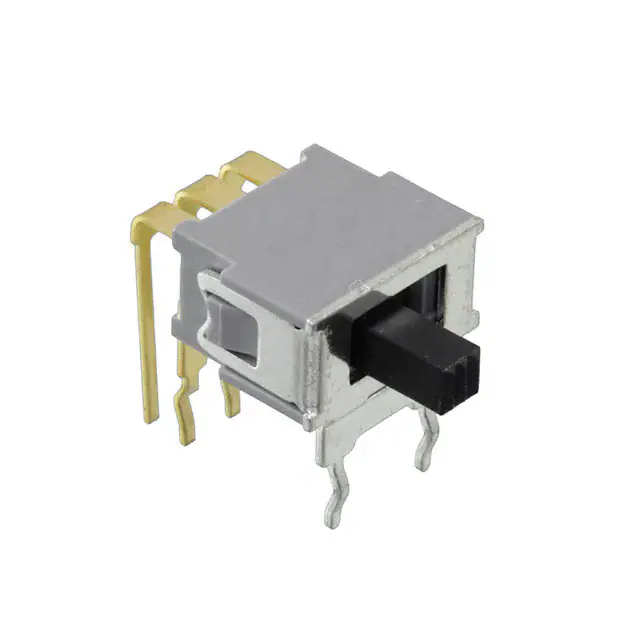

AS2N-6M-10-ZSWITCH SLIDE DPDT 50MA 48V Nidec Components Corporation |
4,309 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|
ASE2N-2M-10-ZSWITCH SLIDE DPDT 50MA 60V Nidec Components Corporation |
4,673 |
|
Datasheet |
ASE | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 60 V | 60 V | Standard | 2.80mm | - | Gold | Through Hole | PC Pin | Washable |
|

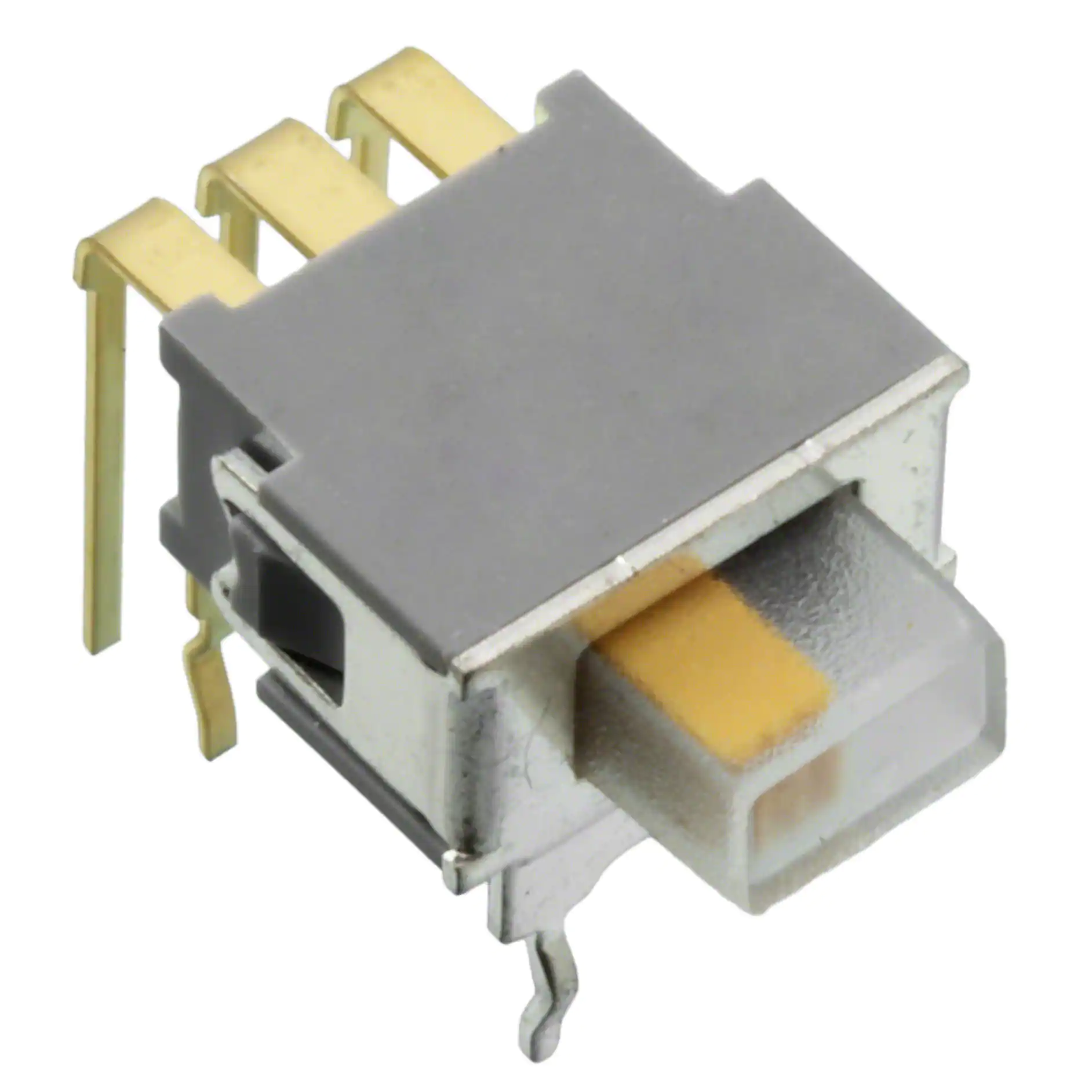

ASE2N-6M-10-ZSWITCH SLIDE DPDT 50MA 60V Nidec Components Corporation |
3,220 |
|
Datasheet |
ASE | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 60 V | 60 V | Standard | 2.80mm | - | Gold | Through Hole, Right Angle | PC Pin | Washable |
