Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23026C1051B201RELAY GENERAL PURPOSE SPDT 1A 5V |
2,179 |
|
Datasheet |
V23026, AXICOM | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 6.8 mA | Latching, Single Coil | - | PC Pin | - | - | 3.75 VDC | - | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | General Purpose | - | - |
|
2903345RELAY GEN PURPOSE DPDT 50MA 24V |
1,783 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 24VAC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2903344RELAY GEN PURPOSE DPDT 50MA 120V |
4,957 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 8 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2903338RELAY GEN PURPOSE SPDT 50MA 24V |
4,171 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
V23026D1024B201 *X020RELAY GEN PURPOSE SPDT 1A 24V |
4,991 |
|
Datasheet |
V23026, AXICOM | Tape & Reel (TR) | Obsolete | Surface Mount | 24VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 5.3 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | General Purpose | - | - |
|
2903373RELAY GEN PURPOSE SPDT 50MA 12V |
3,093 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 16 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G2RV-SR500-AP AC100RELAY GEN PURP SPDT 50MA 100V |
4,159 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 100VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6 mA | Non Latching | Socket Included | Spring Terminal | - | - | 80 VAC | 10 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G2RV-SR700-AP AC100RELAY GEN PURP SPDT 50MA 100V |
4,837 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 100VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6 mA | Non Latching | Socket Included | Screw Terminal | - | - | 80 VAC | 10 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

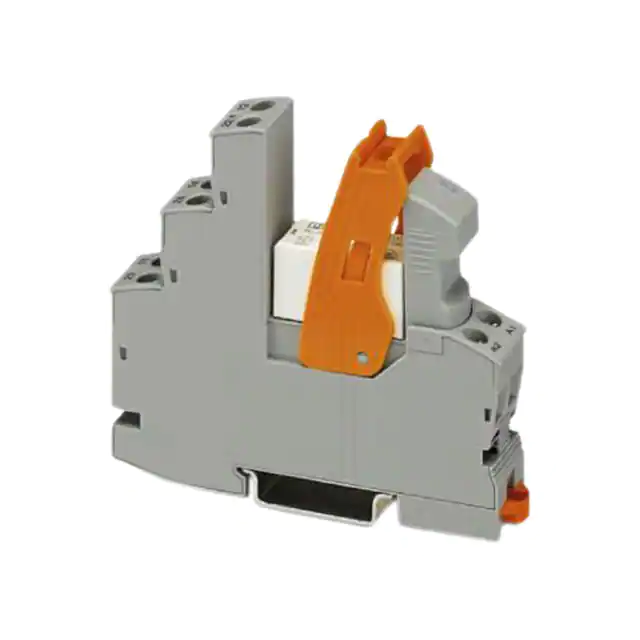

2903343RELAY GEN PURPOSE DPDT 50MA 230V |
4,137 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 230VAC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G2RV-ST700-AP AC/DC48RELAY GEN PURPOSE SPDT 50MA 48V |
2,488 |
|
Datasheet |
G2RV-ST | Box | Active | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6.4 mA | Non Latching | Socket Included | Screw Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
G2RV-SR700-AP AC/DC24RELAY GEN PURPOSE SPDT 50MA 24V |
3,525 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 12.6 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SR500-AP AC/DC48RELAY GEN PURPOSE SPDT 50MA 48V |
4,629 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6.1 mA | Non Latching | Socket Included | Spring Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
KHU-17D13-24RELAY GEN PURPOSE 4PDT 2A 24V |
2,076 |
|
Datasheet |
KHU | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 2 A | 240VAC - Max | 480VA | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SR700-AP AC110RELAY GEN PURP SPDT 50MA 110V |
4,681 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 110VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 5.9 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SR500-AP AC230RELAY GEN PURP SPDT 50MA 230V |
1,160 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.5 mA | Non Latching | Socket Included | Spring Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SR700-AP DC24RELAY GEN PURPOSE SPDT 50MA 24V |
2,603 |
|
Datasheet |
G2RV-SR | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
8-1393806-6RELAY GEN PURPOSE DPDT 2A 24V |
2,569 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | Plug In | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
MAWD-26RELAY DPDT 1A 26.5V |
3,823 |
|
Datasheet |
MAT, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | - | - | 14.2 VDC | 8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | - | - | - |
|
JMAC-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
3,890 |
|
Datasheet |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
JMAWD-18XLRELAY GEN PURPOSE DPDT 1A 18V |
2,978 |
|
Datasheet |
MAD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
