Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1E-S-DC5V-RRELAY GENERAL PURPOSE SPDT 2A 5V |
2,531 |
|
Datasheet |
DS | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS1E-SL-DC24VRELAY GEN PURPOSE SPDT 2A 24V |
4,567 |
|
Datasheet |
DS | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 3.8 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS1E-SL2-DC9VRELAY GENERAL PURPOSE SPDT 2A 9V |
4,659 |
|
Datasheet |
DS | Box | Active | Through Hole | 9VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS1E-S-DC48VRELAY GEN PURPOSE SPDT 2A 48V |
4,896 |
|
Datasheet |
DS | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
2900308RELAY GEN PURPOSE SPDT 50MA 48V |
1,981 |
|
Datasheet |
PLC-RPT | Bulk | Active | DIN Rail | 48VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 9.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
JMACD-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
1,739 |
|
Datasheet |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
HFW1230K06RELAY GEN PURPOSE DPDT 2A 26.5V |
4,738 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
JMAW-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
1,299 |
|
Datasheet |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
HMS1201S111MRELAY GEN PURPOSE DPDT 2A 26.5V |
3,990 |
|
Datasheet |
HMS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | MIL-R-39016/44 |
|
5-1393810-9RELAY GEN PURPOSE 4PDT 2A 12V |
1,335 |
|
Datasheet |
V23154, AXICOM | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 54.5 mA | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
FW1109G06RELAY GEN PURPOSE DPDT 2A 26.5V |
2,443 |
|
Datasheet |
FW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 39.3 mA | Non Latching | - | Solder Hook | - | - | 13.5 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-5757/10 |
|
3SBC1537A2RELAY GEN PURPOSE DPDT 2A 26.5V |
1,370 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
3SBC1521A2RELAY GEN PURPOSE DPDT 2A 26.5V |
4,086 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
3SBH1138A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
1,240 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/14 |
|
3SBH1231A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,768 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/53 |
|
SSAW-6C-24BRELAY GEN PURPOSE 6PDT 2A 26.5V |
1,947 |
|
Datasheet |
- | Bulk | Active | Through Hole | 26.5VDC | 6PDT (6 Form C) | 2 A | 28VDC - Nom | - | 68 mA | Non Latching | - | PC Pin | - | - | 15.5 VDC | 1.8 VDC | 5 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
TQ2H-L-3VRELAY TELECOM DPDT 1A 3V |
100 |
|
Datasheet |
TQ | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.25 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6AU-234P-ST-US-DC24RELAY GEN PURPOSE DPDT 1A 24V |
2,174 |
|
Datasheet |
G6A | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 4.2 mA | Latching, Single Coil | - | PC Pin | - | - | 16.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

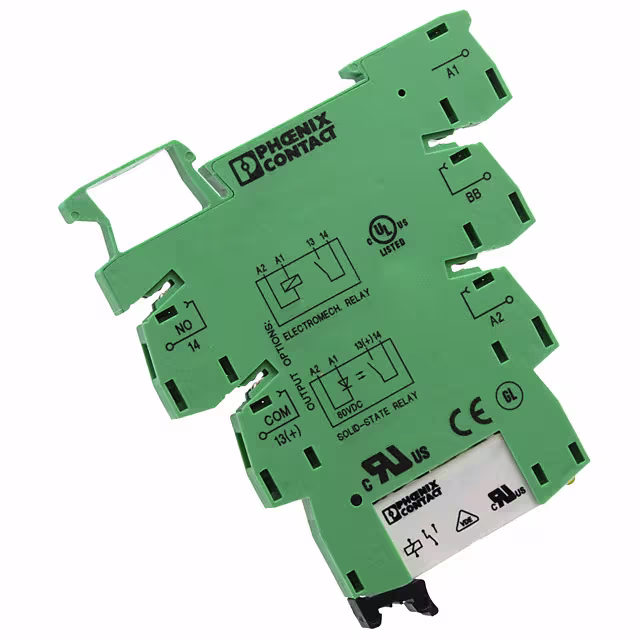

2966320RELAY GEN PURPOSE SPST 50MA 120V |
4,876 |
|
Datasheet |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|

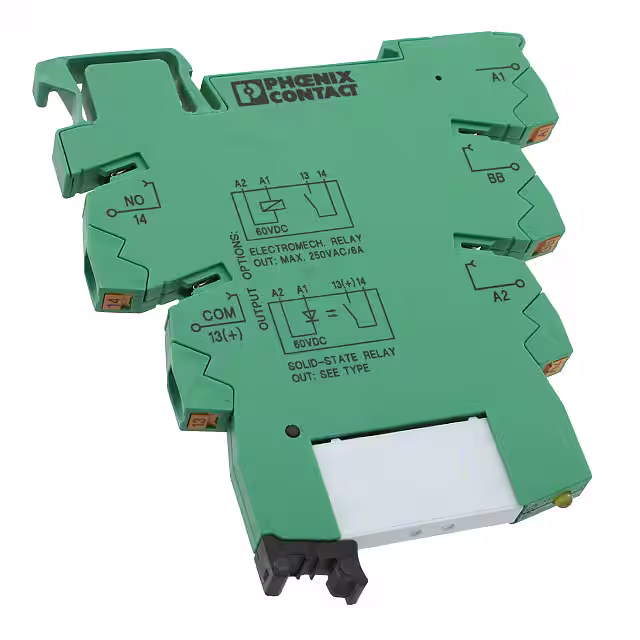

2900314RELAY GEN PURPOSE SPST 50MA 120V |
1,744 |
|
Datasheet |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
