Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1617028-0RELAY GEN PURPOSE DPDT 2A 26.5V |
1,466 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1201A00RELAY GEN PURPOSE DPDT 2A 6-8V |
2,579 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 6 ~ 8VDC | DPDT (2 Form C) | 2 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMACDD-26XPS2RELAY GEN PURPOSE DPDT 1A 26.5V |
3,496 |
|
Datasheet |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617033-7RELAY GEN PURPOSE DPDT 2A 18V |
4,746 |
|
Datasheet |
HFW, CII | Bulk | Active | - | 18VDC | DPDT (2 Form C) | 2 A | - | - | 34.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.5 VDC | 0.95 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617038-1RELAY GEN PURPOSE DPDT 2A 12V |
4,243 |
|
Datasheet |
HMB, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 7.2 VDC | 0.7 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
6-1617039-9RELAY GEN PURPOSE DPDT 2A 27-56V |
1,978 |
|
Datasheet |
HMS, CII | Bulk | Active | Chassis Mount | 27 ~ 56VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 300VA, 56W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.8 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617032-5RELAY GENERAL PURPOSE DPDT 2A |
4,161 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
JMGST-5MWRELAY GENERAL PURPOSE DPDT 1A 5V |
1,870 |
|
Datasheet |
MGST, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/7 |
|

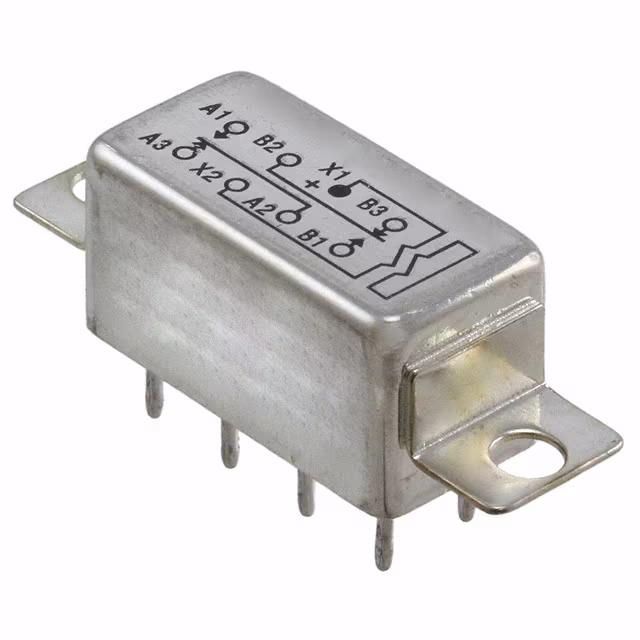

HMB1230K01PRELAY GEN PURPOSE DPDT 2A 26.5V |
3,870 |
|
Datasheet |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | - |
|
|
1-1393817-8RELAY GEN PURPOSE DPDT 2A 60V |
4,741 |
|
Datasheet |
V23003, AXICOM | Bulk | Active | Socketable | 60VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 25 mA | Latching, Dual Coil | - | Plug In | - | - | 44 VDC | - | - | - | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
3SBC2017A2RELAY GEN PURPOSE DPDT 2A 26.5V |
3,093 |
|
Datasheet |
3SBC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
|
3SBC1512A2RELAY GEN PURPOSE DPDT 2A 26.5V |
4,244 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
|
6-1393817-4RELAY GEN PURPOSE 4PDT 2A 48V |
2,940 |
|
Datasheet |
V23003, AXICOM | Bulk | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 34.3 mA | Latching, Dual Coil | - | Plug In | - | - | 33.5 VDC | - | - | - | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
3SBH5004K1RELAY GEN PURPOSE 4PDT 2A 26.5V |
4,970 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH5004K2RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,028 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH5134K5RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,233 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBC1623A2RELAY GENERAL PURPOSE DPDT 2A |
2,082 |
|
Datasheet |
3SBC, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | PC Pin | - | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1142A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,710 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1227A2RELAY GEN PURPOSE 4PDT 2A 18V |
3,306 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 18VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 64.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | 0.8 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
3SAE5014K1RELAY GEN PURPOSE DPDT 2A 24V |
4,398 |
|
Datasheet |
3SAE, CII | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 43.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 6 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
