Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10-E1Z4-V15.0KRELAY GEN PURPOSE 4PDT 2A 115V |
1,986 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 115VDC | 4PDT (4 Form C) | 2 A | - | 240VA, 60W | - | Non Latching | - | Plug In | - | - | 86 VDC | - | - | - | - | - | General Purpose | - | - |
|
4-1617029-6RELAY GEN PURPOSE DPDT 2A 26.5V |
2,600 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 30VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | - | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | - | - |
|
|

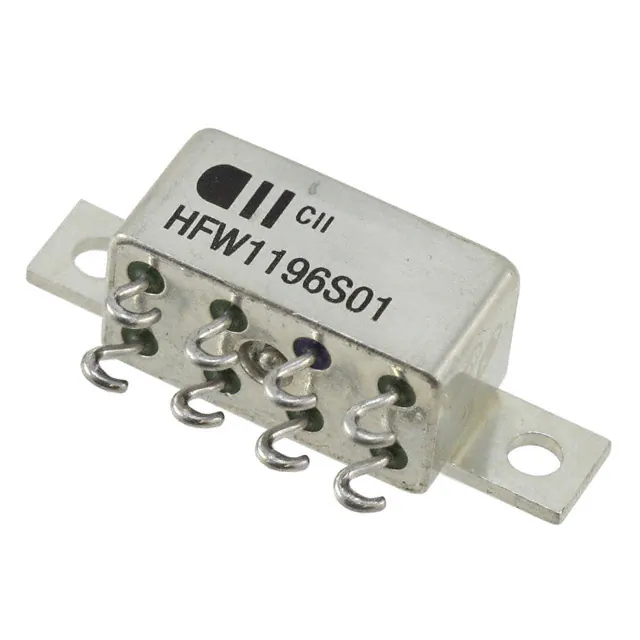

HFW1196S01Power/Signal Relay, DPDT, Moment |
171 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8-1393806-1RELAY GEN PURPOSE DPDT 2A 20V |
2,042 |
|
Datasheet |
V23154, AXICOM | Bulk | Active | Socketable | 20VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 36.3 mA | Non Latching | - | Plug In | - | - | 11.9 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
7-1393806-8RELAY GEN PURPOSE DPDT 2A 20V |
1,410 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 20VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 36.3 mA | Non Latching | - | Plug In | - | - | 8.9 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
KHAU-17A16-120RELAY GEN PURPOSE 4PDT 1A 120V |
219 |
|
Datasheet |
KHA | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 1 A | 240VAC - Max | 240VA | 10 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617034-2RELAY GENERAL PURPOSE DPDT 2A |
3,926 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | - | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
HFW1501S04General Purpose Relays HFW1501S0 |
286 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KHAU-11AT6-120RELAY GEN PURPOSE DPDT 1A 120V |
2,400 |
|
Datasheet |
KHA | Tray | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 1 A | 240VAC - Max | 240VA | 10 mA | Non Latching | - | PC Pin | - | - | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | - | General Purpose | - | - |
|
R10-E1Z4-115VRELAY GEN PURPOSE 4PDT 2A 115V |
3,222 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 115VAC | 4PDT (4 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
HFW1105D00RELAY GEN PURP DPDT 2A 26.5-32V |
3,910 |
|
Datasheet |
HFW, CII | Bulk | Active | - | 26.5 ~ 32VDC | DPDT (2 Form C) | 2 A | - | - | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMGAT-5LWRELAY GENERAL PURPOSE DPDT 1A 5V |
4,885 |
|
Datasheet |
MGAT, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 132.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 2 ms | - | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/6 |
|
|
4-1617535-1RELAY GEN PURPOSE DPDT 2A 12V |
3,695 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMGST-18MWRELAY GEN PURPOSE DPDT 1A 18V |
2,820 |
|
Datasheet |
MGST, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.6 VDC | 0.97 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/7 |
|
|
JMGST-5LWRELAY GENERAL PURPOSE DPDT 1A 5V |
2,014 |
|
Datasheet |
MGST, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/7 |
|
|
R10-E1Z6-J2.5KRELAY GENERAL PURPOSE 6PDT 2A |
4,612 |
|
Datasheet |
R10 | Bulk | Active | Socketable | - | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 28 mA | Non Latching | - | Plug In | - | - | - | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
5-1393807-7RELAY GENERAL PURPOSE 4PDT 2A |
4,020 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | - | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMB1131K01PRELAY GEN PURPOSE DPDT 2A 26.5V |
1,262 |
|
Datasheet |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
V23030A1026A104RELAY GEN PURPOSE 4PDT 2A 48V |
1,250 |
|
Datasheet |
V23030, AXICOM | Bulk | Obsolete | Through Hole | 48VDC | 4PDT (4 Form C) | 2 A | 250VAC, 250VDC - Max | - | 17.8 mA | Non Latching | - | PC Pin | - | - | 32 VDC | - | 8 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
4-1617002-2B07B035BC1-0870 = 07 RELAY |
190 |
|
Datasheet |
- | Tray | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
