Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

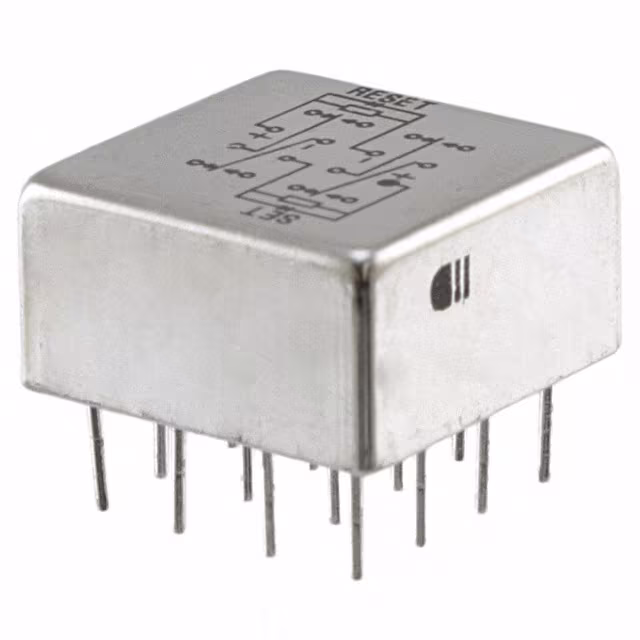

3SBM1071A2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,432 |
|
Datasheet |
3SBM, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | - | PC Pin | - | - | 13.5 VDC | - | 4 ms | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/31 |
|
3SAM1821A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,247 |
|
Datasheet |
3SAM, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 2 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617086-4RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,943 |
|
Datasheet |
3SBM, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | - | - | 27.2 mA | Non Latching | - | PC Pin | - | - | 13.5 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/31 |
|
|
2-1617088-0RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,971 |
|
Datasheet |
3SAM, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 2 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617577-2RELAY TE Connectivity Aerospace, Defense and Marine |
3,027 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SAM1865A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,225 |
|
- |
3SAM, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 2 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1617522-2RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Aerospace, Defense and Marine |
1,041 |
|
- |
3SAF | Bulk | Active | Chassis Mount | - | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | - | Non Latching | - | Solder Hook | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
1617016-4RELAY TE Connectivity Aerospace, Defense and Marine |
1,534 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1617522-2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,544 |
|
Datasheet |
3SAM, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 2 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1617088-5RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Aerospace, Defense and Marine |
4,121 |
|
Datasheet |
3SAM, CII | Bulk | Active | - | - | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Nom | - | - | Non Latching | - | - | - | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
