Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1617594-1RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Aerospace, Defense and Marine |
2,981 |
|
Datasheet |
LS, CII | Bulk | Active | - | - | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | - | Latching, Dual Coil | - | - | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

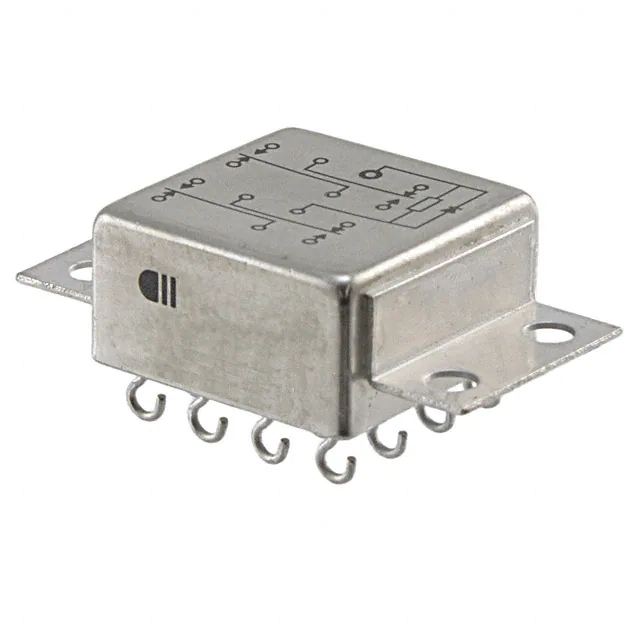

3SBH1230A2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,892 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/53 |
|

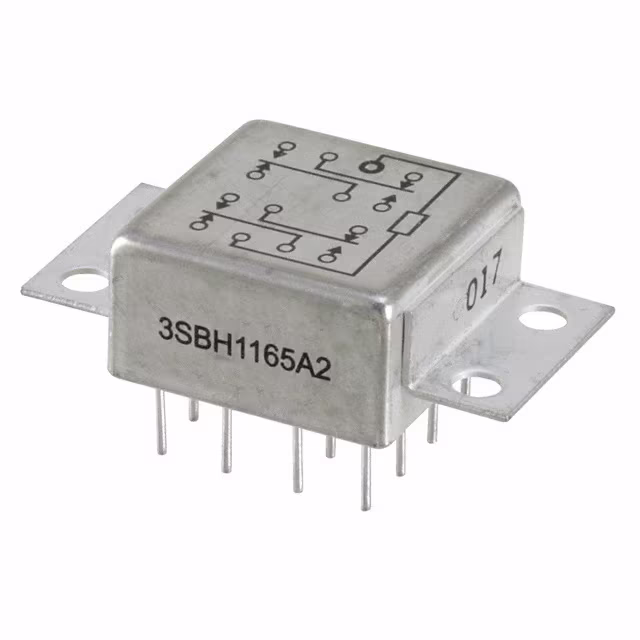

3SBH1165A2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,520 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/14 |
|
|
3SBM6004R2RELAY GEN PURPOSE 4PDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
2,922 |
|
- |
3SBM, CII | Bulk | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 82.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 7.6 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/31 |
|
|
6-1617090-1RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,050 |
|
Datasheet |
- | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 30VDC - Nom | - | - | Latching, Dual Coil | - | PC Pin | - | - | - | - | - | - | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBC2126A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,487 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/38 |
|
|
4-1617090-2RELAY GEN PURPOSE DPDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
1,285 |
|
Datasheet |
LS, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 47.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 6 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
5-1617580-1RELAY GENERAL PURPOSE 4PDT 2A TE Connectivity Aerospace, Defense and Marine |
2,962 |
|
- |
3SBH, CII | Bulk | Active | Through Hole | - | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1261A2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,958 |
|
- |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3-1617086-6RELAY GEN PURPOSE 4PDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
3,904 |
|
Datasheet |
3SBM, CII | Bulk | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 82.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 5.2 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
