Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1617562-6RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Aerospace, Defense and Marine |
3,228 |
|
- |
3SBC, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1215A2RELAY GEN PURPOSE 4PDT 2A 36V TE Connectivity Aerospace, Defense and Marine |
2,326 |
|
- |
3SBH, CII | Bulk | Active | Through Hole | 36VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 34.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617076-5RELAY GEN PURPOSE 4PDT 2A TE Connectivity Aerospace, Defense and Marine |
4,949 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | - | 4PDT (4 Form C) | 2 A | - | - | - | - | - | PC Pin | - | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1245A2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,765 |
|
- |
3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
2-1617076-7RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,059 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1147A2RELAY GEN PURPOSE 4PDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
3,501 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 104 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|

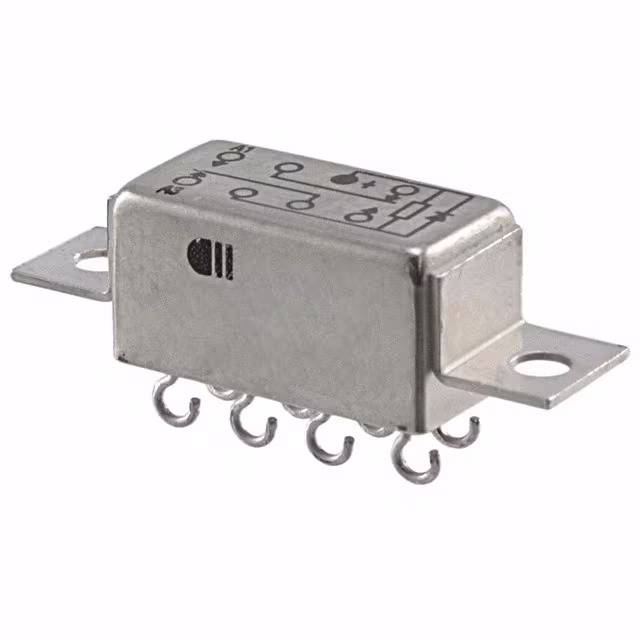

3SBC1653A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,327 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/37 |
|
|
LSBW-2C-24ARELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,132 |
|
Datasheet |
LSBW | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Max | 56W | 26.5 mA | Latching, Dual Coil | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 8 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
9-1617515-7RELAY GEN PURPOSE 4PDT 2A 18V TE Connectivity Aerospace, Defense and Marine |
4,680 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 18VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 64.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | 0.8 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617011-5RELAY TE Connectivity Aerospace, Defense and Marine |
2,004 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
