Safety Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Features | Termination Style | Must Operate Voltage | Must Release Voltage | Operating Temperature | Contact Material | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23047A1012A511RELAY SAFETY DPST 6A 12V |
474 |
|
Datasheet |
SR2M, SCHRACK | Tube | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 9 VDC | 1.2 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
SR4D4018RELAY SAFETY 4PST 8A 18V |
4,697 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 18VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 13.5 VDC | 1.8 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
SR4M4021RELAY SAFETY 4PST 8A 21V |
260 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 21VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 16 VDC | 2.1 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
SR4M4005RELAY SAFETY 4PST 8A 5V |
228 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 5VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 3.8 VDC | 0.5 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
SR6D4110RELAY SAFETY 4PST 8A 110V |
246 |
|
Datasheet |
SR6 D/M, SCHRACK | Tube | Active | Through Hole | 110VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 83 VDC | 11 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
V23050A1005A533RELAY SAFETY |
250 |
|
Datasheet |
- | Bulk | Active | Through Hole | 5VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 8 A | 400VAC - Max | - | PC Pin | 3.8 VDC | 0.5 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
V23050A1012A533RELAY SAFETY |
237 |
|
Datasheet |
- | Bulk | Active | Through Hole | 12VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 8 A | 400VAC - Max | - | PC Pin | 9 VDC | 1.2 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
SF4D-DC5VRELAY SAFETY 8PST 6A 5V |
2,487 |
|
Datasheet |
SF4D | Bulk | Active | Through Hole | 5VDC | 8PST-4NO/4NC (4 Form A, 4 Form B) | 6 A | 440VAC, 30VDC - Max | - | PC Pin | 3.75 VDC | 0.75 VDC | 18 ms | 7 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
56.OA02.1242SOA560212V 4NO/2NC AGNI10+5UMAU I |
1,987 |
|
Datasheet |
OA | Bulk | Active | Through Hole | 12VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 10 A | 400VAC, 250VDC - Max | - | PC Pin | 8.4 VDC | - | 27 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
1393258-2Safety Relays 2 CO CONTACTS 5VDC |
268 |
|
Datasheet |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SR4M4085RELAY SAFETY 4PST 8A 85V |
1,694 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 85VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 63.8 VDC | 8.5 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
V23050A1060A542RELAY SAFETY |
1,378 |
|
Datasheet |
- | Bulk | Active | Through Hole | 60VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 45 VDC | 6 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
V23050A1110A551Power/Signal Relay, 5 Form A, 1 |
6,042 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
G7SA-3A3B-DC24RELAY SAFETY 6PST 6A 24V |
1,095 |
|
Datasheet |
G7SA | Bulk | Obsolete | Socketable, Through Hole | 24VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Flux Protection | PC Pin, Plug In | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) |
|

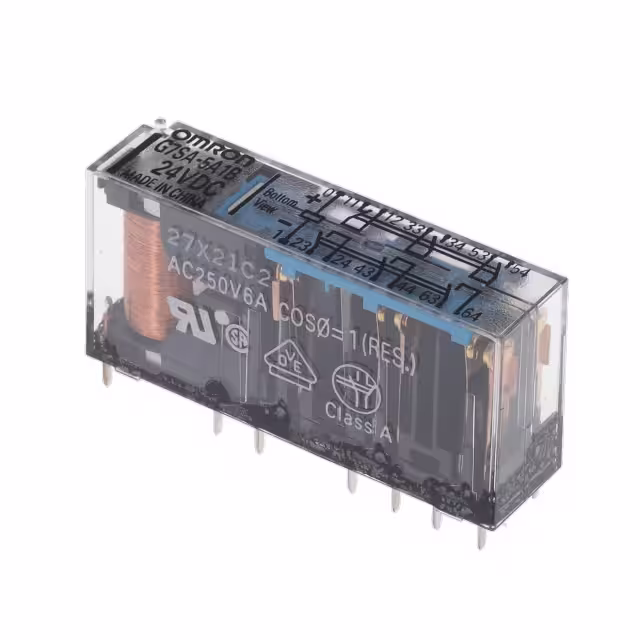

G7SA-5A1B-DC24RELAY SAFETY 6PST 6A 24V |
4,507 |
|
Datasheet |
G7SA | Bulk | Obsolete | Socketable, Through Hole | 24VDC | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Flux Protection | PC Pin, Plug In | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) |
|
|
56.OA11.1131COA5611,110V,3NO/1NC |
1,478 |
|
Datasheet |
OA | Bulk | Active | Through Hole | 110VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC, 250VDC - Max | - | PC Pin | 77 VDC | - | 20 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
|
SR4M4024SAFETY RELAY, 4PST, MOMENTARY, 0 |
290 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 18 VDC | 2.4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
4-1415053-1Safety Relay, 4PST, Momentary, 0 |
290 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 18 VDC | 2.4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
3-1415055-1Safety Relay, 4PST, Momentary, 0 |
1,320 |
|
Datasheet |
SR4, SCHRACK | Bulk | Active | Through Hole | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 18 VDC | 2.4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
SFTS-4P-24V-2A2BSAFETY RELAY TERMINAL BLOCKS |
108 |
|
Datasheet |
SFT | Retail Package | Active | DIN Rail | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | Lighted Indicator | Screw Terminal | - | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
