Safety Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Features | Termination Style | Must Operate Voltage | Must Release Voltage | Operating Temperature | Contact Material | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFS4-L-DC24V-DRELAY SAFETY 6PST 6A 24V |
2,334 |
|
Datasheet |
SFS | Bulk | Active | Through Hole | 24VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | Diode, Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
SR4D4012RELAY SAFETY 4PST 8A 12V |
1,735 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 12VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 9 VDC | 1.2 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|

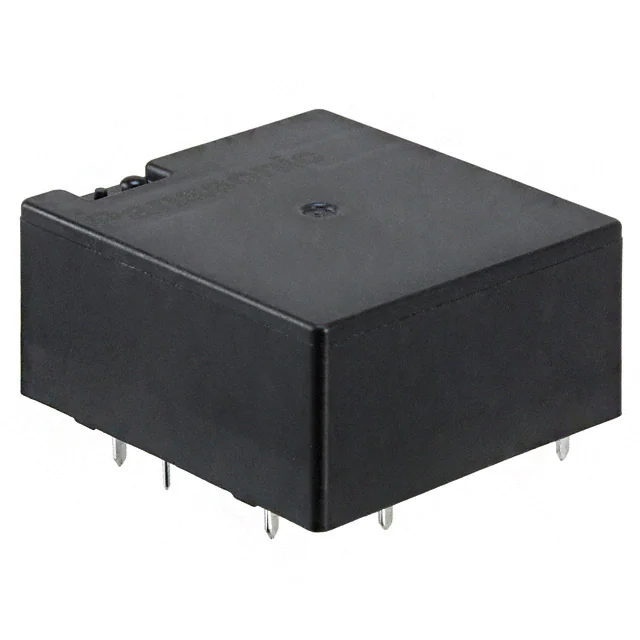

SFY2-DC12VRELAY SAFETY 4PST 6A 12V |
836 |
|
Datasheet |
SF-Y | Tube | Active | Through Hole | 12VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 9 VDC | 1.8 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
V23050-A1110-A551RELAY SAFETY 6PST 8A 110V |
129 |
|
Datasheet |
SR6, SCHRACK | Tube | Active | Through Hole | 110VDC | 6PST-5NO/1NC (5 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 82.5 VDC | 11 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
-D2xx.jpg)
|
RF1V-3A3BLD1-D24RELAY GEN PURPOSE 6PST 6A 24V |
267 |
|
Datasheet |
RF1V | Bulk | Active | Through Hole | 24VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 6 A | 250VAC, 30VDC - Max | Diode, Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
56.OA43.2421COA5643 24VDC2NO/1NC CONTACTS AGS |
204 |
|
Datasheet |
QA | Bulk | Active | Through Hole | 24VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 8 A | 400VAC, 250VDC - Max | - | PC Pin | 16.8 VDC | - | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|

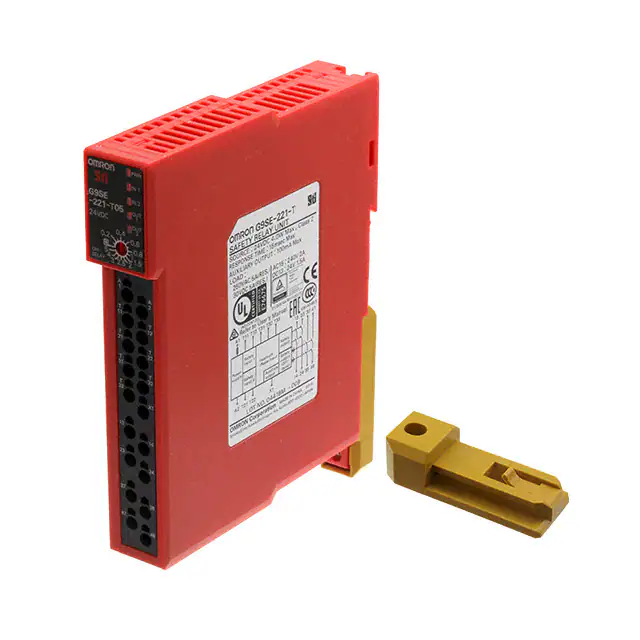

G9SE-221-T30SAFETY UNIT 2+2+1 INST+TD O/P |
305 |
|
Datasheet |
G9SE | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 100 ms | 15 ms | -10°C ~ 55°C | - |
|
G9SA-501 AC100-240RELAY SAFETY 5P 120-240V |
3,759 |
|
Datasheet |
G9SA | Bulk | Active | DIN Rail | 100 ~ 240VAC | 5PST-NO (5 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 30 ms | 10 ms | -25°C ~ 55°C | - |
|
V23047-A1021-A511RELAY SAFETY DPST 6A 21V |
490 |
|
Datasheet |
SR2M, SCHRACK | Tube | Active | Through Hole | 21VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 15.8 VDC | 2.1 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23047-A1036-A501RELAY SAFETY DPDT 6A 36V |
1,488 |
|
Datasheet |
SR2M, SCHRACK | Tube | Active | Through Hole | 36VDC | DPDT (2 Form C) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 27 VDC | 3.6 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23047-A1018-A501RELAY SAFETY DPDT 6A 18V |
357 |
|
Datasheet |
SR2M, SCHRACK | Tube | Active | Through Hole | 18VDC | DPDT (2 Form C) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 13.5 VDC | 1.8 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
|
SFY2-DC24VRELAY SAFETY 4PST 6A 24V |
767 |
|
Datasheet |
SF-Y | Tube | Active | Through Hole | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 18 VDC | 3.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
5-1415539-2RELAY SAFETY |
4,264 |
|
Datasheet |
SR6, SCHRACK | Bulk | Active | Through Hole | 24VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 18 VDC | 2.4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
|
SR4M4048RELAY SAFETY 4PST 8A 48V |
305 |
|
Datasheet |
SR4, SCHRACK | Tube | Active | Through Hole | 48VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 36 VDC | 4.8 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
SR6A6K24RELAY SAFETY 6PST 8A 24V |
713 |
|
Datasheet |
SR6, SCHRACK | Tube | Active | Through Hole | 24VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 8 A | 400VAC - Max | - | PC Pin | 18 VDC | 2.4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|

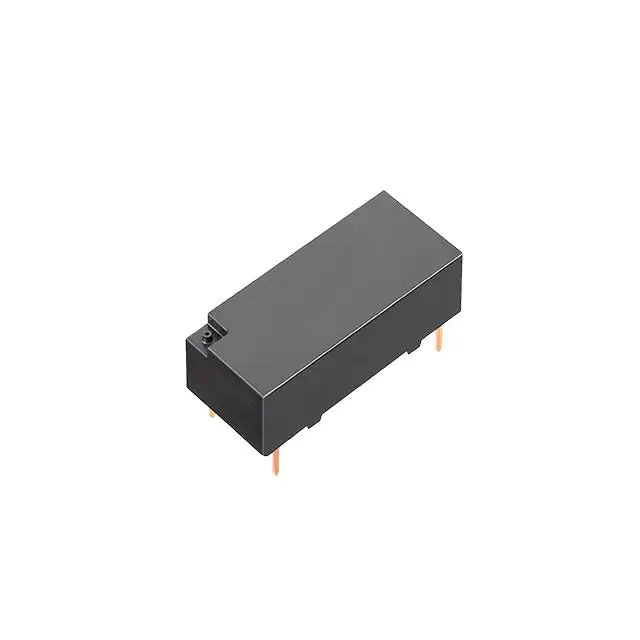

ASFM0122XRELAY SAFETY DPST NONC 6A/3A 12V |
500 |
|
Datasheet |
SF-M | Tape & Reel (TR) | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Flux Protection | PC Pin | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ASFM0052XRELAY SAFETY DPST NO/NC 6A/3A 5V |
210 |
|
Datasheet |
SF-M | Tape & Reel (TR) | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Flux Protection | PC Pin | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

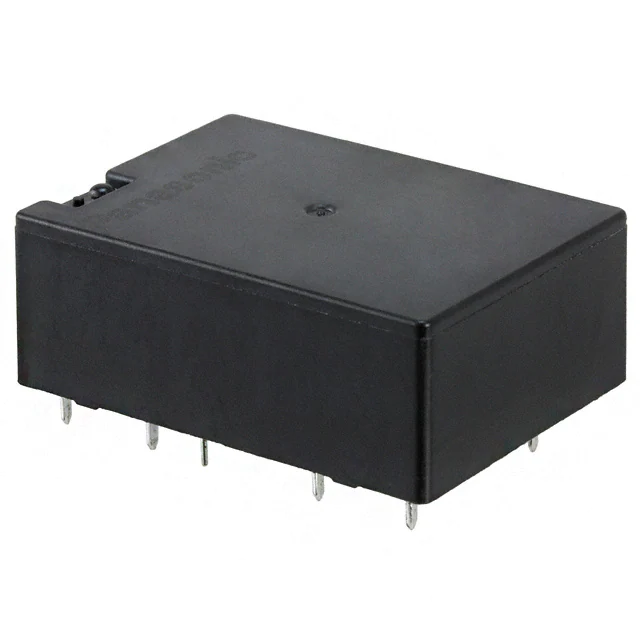

SFY5-DC12VRELAY SAFETY 6PST 6A 12V |
191 |
|
Datasheet |
SF-Y | Tube | Active | Through Hole | 12VDC | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 9 VDC | 1.8 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
V23047A1005A511RELAY SAFETY |
598 |
|
Datasheet |
- | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 3.8 VDC | 0.5 VDC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23047-A1006-A511RELAY SAFETY DPST 6A 6V |
494 |
|
Datasheet |
SR2M, SCHRACK | Box | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 4.5 VDC | 0.6 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
