Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M-13035KPOT 5K OHM 3/4W WIREWOUND LINEAR Nidec Components Corporation |
2,388 |
|
Datasheet |
M-13 | Bulk | Active | 5k | ±5% | 0.75W, 3/4W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|

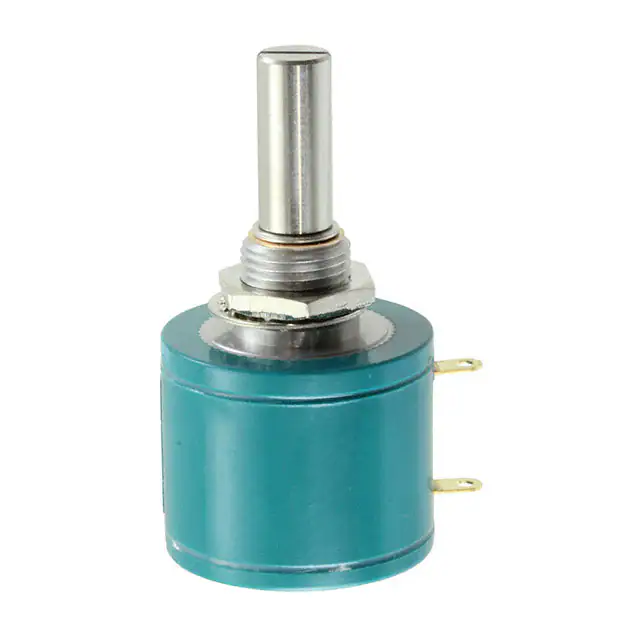

M22L10-100-203POT 20K OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
1,300 |
|
Datasheet |
M22L10 | Tray | Active | 20k | ±5% | 2W | None | 10.0 | Long Life | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|

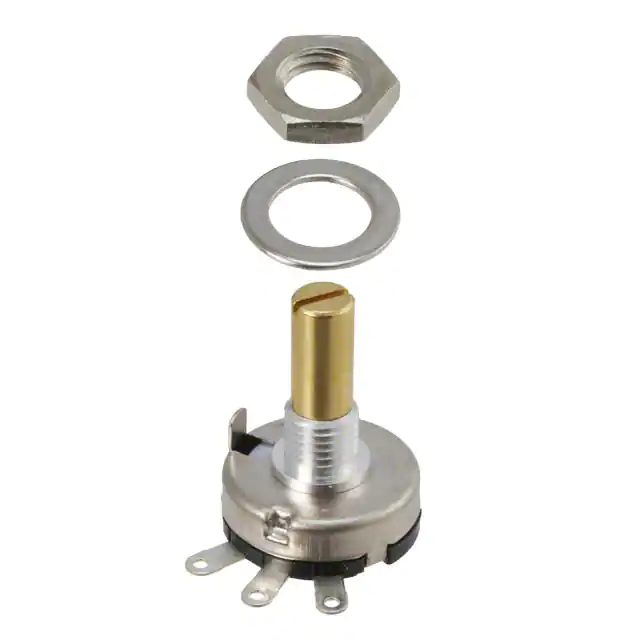

CRV16-00-102POT 1K OHM 1/4W PLASTIC LINEAR Nidec Components Corporation |
3,673 |
|
Datasheet |
CRV16 | Bulk | Active | 1k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±400ppm/°C | 260° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.197" (5.00mm) | M6 x 0.75 | Panel Mount |
|
|
CRV16-00-202POT 2K OHM 1/4W PLASTIC LINEAR Nidec Components Corporation |
3,911 |
|
Datasheet |
CRV16 | Bulk | Active | 2k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±400ppm/°C | 260° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.197" (5.00mm) | M6 x 0.75 | Panel Mount |
|
|
CRV16-00-502POT 5K OHM 1/4W PLASTIC LINEAR Nidec Components Corporation |
3,536 |
|
Datasheet |
CRV16 | Bulk | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±400ppm/°C | 260° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.197" (5.00mm) | M6 x 0.75 | Panel Mount |
|
|
CRV16-00-103POT 10K OHM 1/4W PLASTIC LINEAR Nidec Components Corporation |
4,948 |
|
Datasheet |
CRV16 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±400ppm/°C | 260° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.197" (5.00mm) | M6 x 0.75 | Panel Mount |
|
JC10-000-202NPOT 2K OHM 1/8W PLASTIC LINEAR Nidec Components Corporation |
4,932 |
|
Datasheet |
JC10 | Bulk | Active | 2k | ±20% | 0.125W, 1/8W | None | 1.0 | Long Life | Linear | 1 | Top Adjustment | ±400ppm/°C | Continuous | Conductive Plastic | PC Pins | Slotted | 0.591" (15.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|

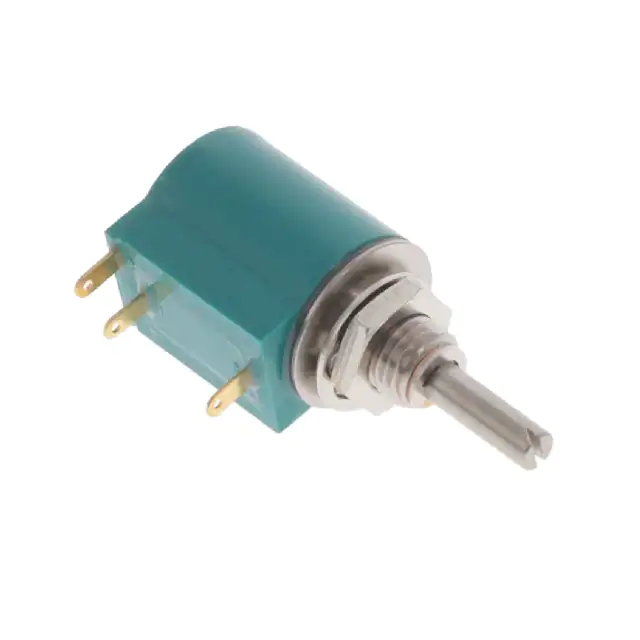

M-1305 2KPOT 2K OHM 1W WIREWOUND LINEAR Nidec Components Corporation |
1,862 |
|
- |
M | Bulk | Active | 2k | ±5% | 1W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
M-22E10-050 100POT 100 OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
3,327 |
|
Datasheet |
M-22 | Bulk | Active | 100 | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
M-22E10-050 200POT 200 OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
3,016 |
|
Datasheet |
M-22 | Bulk | Active | 200 | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
