Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M-1305 10KPOT 10K OHM 1W WIREWOUND LINEAR Nidec Components Corporation |
4,553 |
|
Datasheet |
M-13 | Bulk | Active | 10k | ±5% | 1W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
JT30-340-C00POT LINEAR Nidec Components Corporation |
1,603 |
|
Datasheet |
JT30 | Tray | Active | - | - | - | None | 1.0 | Low Torque | Linear | 1 | User Defined | - | Continuous | - | Wire Leads | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
M-1303 10KPOT 10K OHM 3/4W WIREWOUND LIN Nidec Components Corporation |
3,586 |
|
Datasheet |
M-13 | Bulk | Active | 10k | ±5% | 0.75W, 3/4W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|

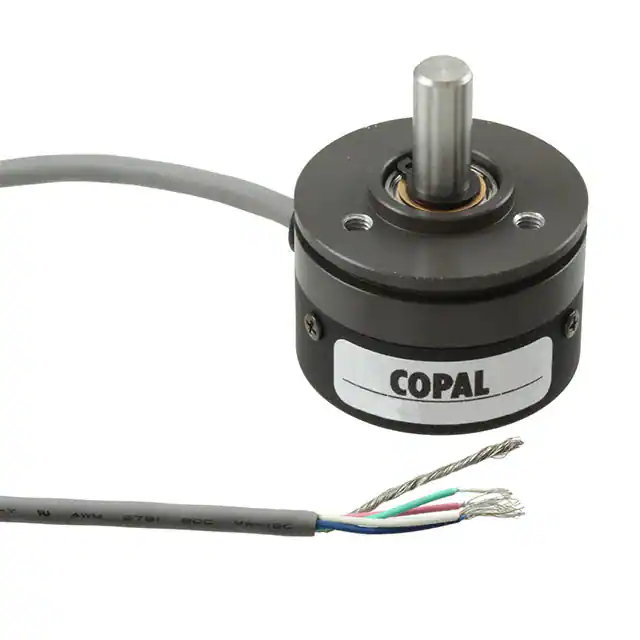

JT30-120-500POT LINEAR Nidec Components Corporation |
1,237 |
|
Datasheet |
JT30 | Tray | Active | - | - | - | None | 1.0 | Low Torque | Linear | 1 | User Defined | - | Continuous | - | Wire Leads | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
M-22E10 5KPOT 5K OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
1,062 |
|
Datasheet |
M-22 | Bulk | Active | 5k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
M-22S10 5KPOT 5K OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
3,792 |
|
Datasheet |
M-22 | Bulk | Active | 5k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
M-22S10 20KPOT 20K OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
3,954 |
|
Datasheet |
M-22 | Bulk | Active | 20k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|

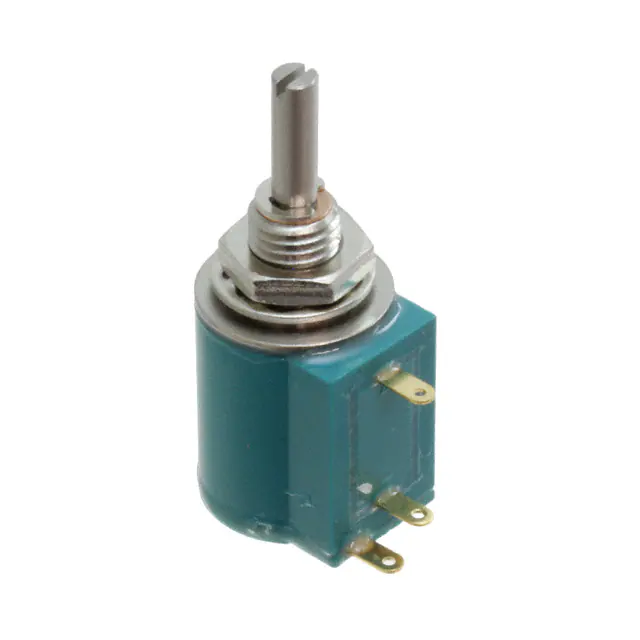

M-13055KPOT 5K OHM 1W WIREWOUND LINEAR Nidec Components Corporation |
1,480 |
|
Datasheet |
M-13 | Bulk | Active | 5k | ±0.5% | 1W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|

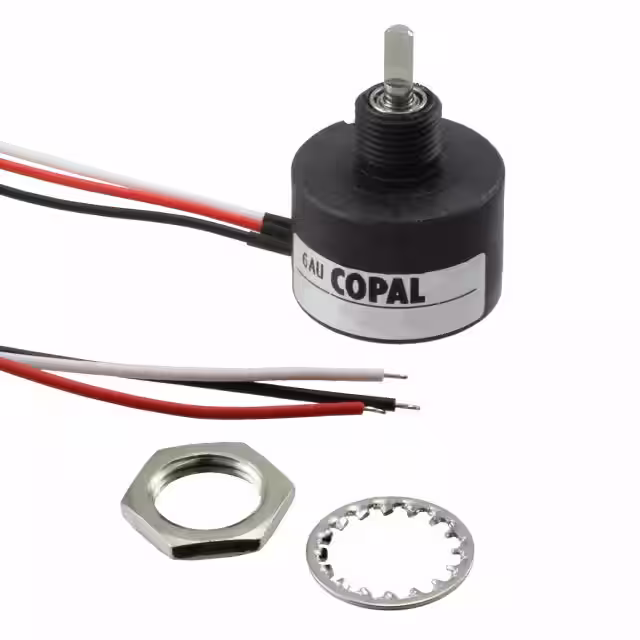

JT22-120-500POT LINEAR Nidec Components Corporation |
3,745 |
|
Datasheet |
JT22 | Tray | Active | - | - | - | None | 1.0 | Low Torque | Linear | 1 | User Defined | - | Continuous | - | Wire Leads | Flatted | 0.630" (16.00mm) | 0.118" (3.00mm) | M9 x 0.75 | Panel Mount |
|

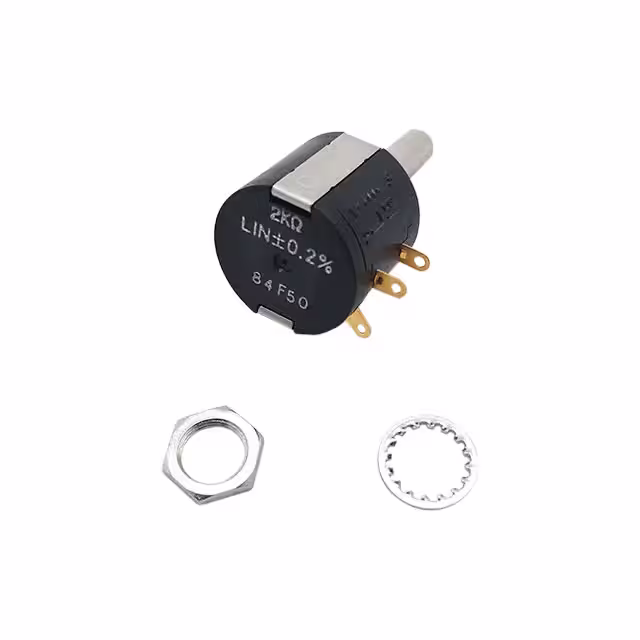

M-22E10-050 2KPOT 2K OHM 2W WIREWOUND LINEAR Nidec Components Corporation |
1,499 |
|
Datasheet |
M-22 | Bulk | Active | 2k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
