Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FNA000065XTAL OSC XO 100.0000MHZ LVCMOS Diodes Incorporated |
933 |
|
Datasheet |
SaRonix-eCera™ FN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVCMOS | 3.3V | ±25ppm | - | -20°C ~ 70°C | - | 55mA | - | Surface Mount | 4-SMD (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
HX31A0011ZCRYSTAL OSCILLATOR SEAM3225 T&R Diodes Incorporated |
470 |
|
Datasheet |
HX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVCMOS | 1.8V ~ 3.3V | ±25ppm | - | -40°C ~ 105°C | - | 40mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
FKA000022QXTAL OSC XO 100.0000MHZ CMOS SMD Diodes Incorporated |
1,083 |
|
Datasheet |
SaRonix-eCera™ FK | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | CMOS | 1.8V | ±25ppm | - | -40°C ~ 85°C | - | 10mA | AEC-Q200 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
|
HX21A0007ZCRYSTAL OSCILLATOR SEAM2520 T&R Diodes Incorporated |
2,121 |
|
Datasheet |
HX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVCMOS | 3.3V | ±25ppm | - | -40°C ~ 105°C | - | 40mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

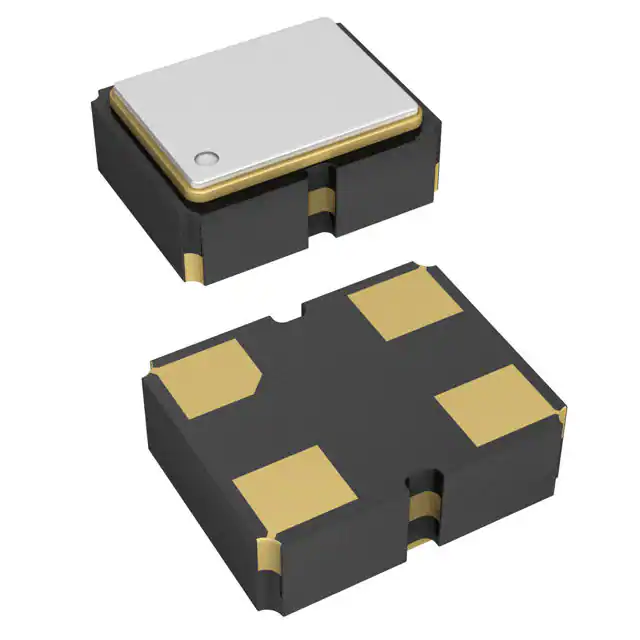

KJ3270001XTAL OSC XO 32.7680 KHZ LVCMOS Diodes Incorporated |
8,100 |
|
Datasheet |
SaRonix-eCera™ KJ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | LVCMOS | 1.8V | ±25ppm | - | -40°C ~ 85°C | - | 300µA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

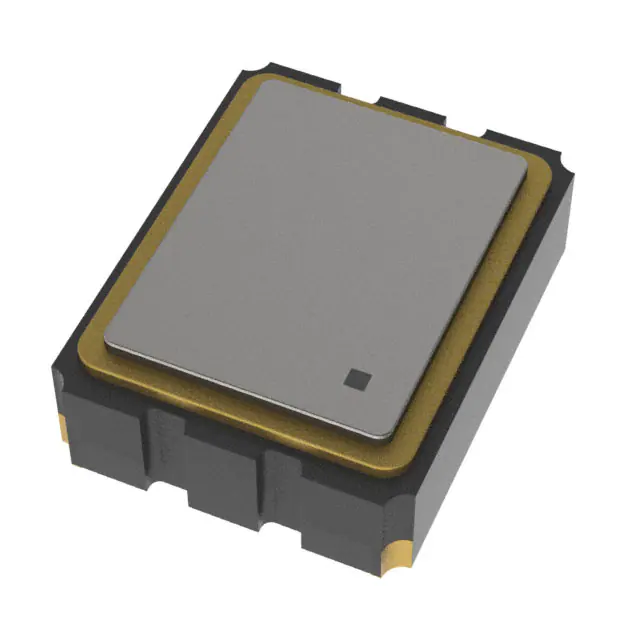

NX33C5013ZCRYSTAL OSCILLATOR SEAM3225 T&R Diodes Incorporated |
2,070 |
|
Datasheet |
NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 70mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.041" (1.05mm) |
|
NX7031E0125.000000XTAL OSC XO 125.0000MHZ LVDS SMD Diodes Incorporated |
289 |
|
Datasheet |
SaRonix-eCera™ NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 70mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.061" (1.55mm) |
|
|
NX33C5008QXTAL OSC XO 125.0000MHZ LVDS SMD Diodes Incorporated |
2,185 |
|
Datasheet |
SaRonix-eCera™ NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 70mA | AEC-Q200 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.041" (1.05mm) |
|
|
NX5041D0100.000000XTAL OSC XO 100.0000MHZ HCSL SMD Diodes Incorporated |
582 |
|
Datasheet |
SaRonix-eCera™ NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 70mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
SQA000001XTAL OSC XO 100.0000MHZ HCSL SMD Diodes Incorporated |
1,107 |
|
Datasheet |
SaRonix-eCera™ SQ | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 40mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
