Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX33A0010QXTAL OSC XO 100.0000MHZ LVDS SMD Diodes Incorporated |
1,774 |
|
Datasheet |
SaRonix-eCera™ NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVDS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 70mA | AEC-Q200 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.041" (1.05mm) |
|
SQPCIE100XTAL OSC XO 100.0000MHZ HCSL SMD Diodes Incorporated |
1,560 |
|
Datasheet |
SaRonix-eCera™ SQ | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 40mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
FK2500025XTAL OSC XO 25.0000MHZ LVCMOS Diodes Incorporated |
10,874 |
|
Datasheet |
SaRonix-eCera™ FK | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | LVCMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
.JPG)
|

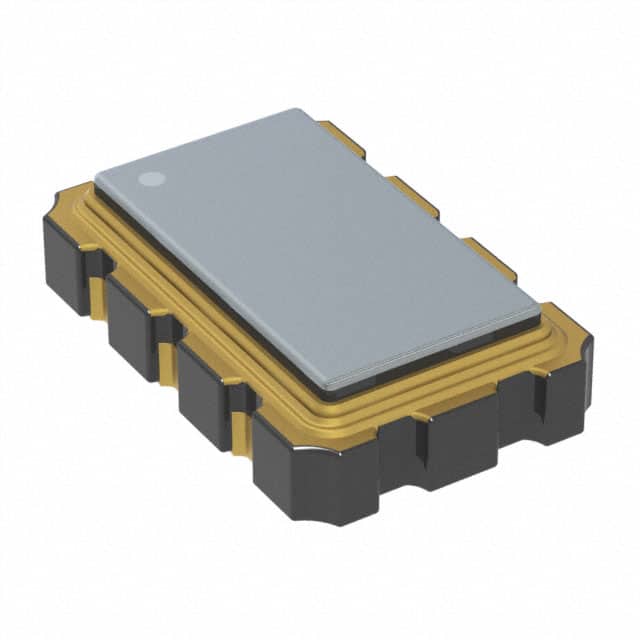

UX54F62001XTAL OSC XO 156.2500MHZ HCSL SMD Diodes Incorporated |
9,870 |
|
Datasheet |
SaRonix-eCera™ UX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 60mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
FNSTB1027XTAL OSC XO 27.0000MHZ CMOS SMD Diodes Incorporated |
3,683 |
|
Datasheet |
SaRonix-eCera™ FN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 27 MHz | Enable/Disable | CMOS | 3.3V | ±30ppm | - | -20°C ~ 70°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.061" (1.55mm) |
|
|
FK2500065ZXTAL OSC XO 25.0000MHZ CMOS SMD Diodes Incorporated |
11,367 |
|
Datasheet |
SaRonix-eCera™ FK | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 1.8V | ±25ppm | - | -40°C ~ 85°C | - | 4mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
|
FK1330001ZXTAL OSC XO 13.3333MHZ LVCMOS Diodes Incorporated |
297 |
|
Datasheet |
SaRonix-eCera™ FK | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 13.3333 MHz | Enable/Disable | LVCMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
FJ2400011XTAL OSC XO 24.0000MHZ LVCMOS Diodes Incorporated |
8,130 |
|
Datasheet |
SaRonix-eCera™ FJ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
FD0400028QXTAL OSC XO 4.0000MHZ CMOS SMD Diodes Incorporated |
554 |
|
Datasheet |
SaRonix-eCera™ FD | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 4 MHz | Enable/Disable | CMOS | 5V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
|
UJWIFI026XTAL OSC XO 26.0000MHZ SNWV SMD Diodes Incorporated |
53,342 |
|
Datasheet |
SaRonix-eCera™ UJ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Enable/Disable | Clipped Sine Wave | 1.8V | ±20ppm | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
